Falcon Lead Lag Appendix E
E-44
SLAVE OPERATION AND SETUP
Slave Data Supporting Lead Lag

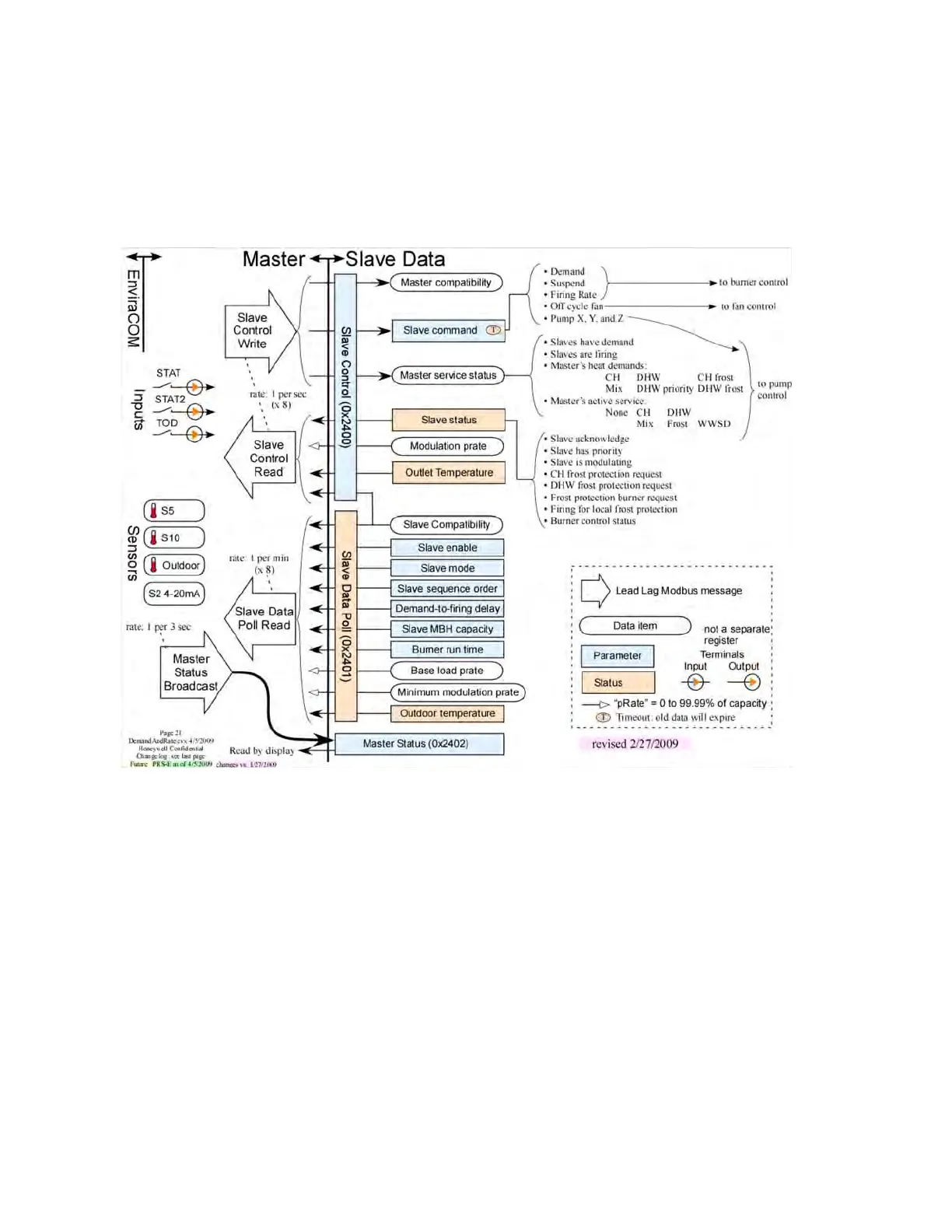

This data is provided by each slave Falcon control to support operation when a LL master exists. The illustration below
summarizes the slave's registers and data:
LL Slave
Some slave changes relate to pump control, frost protection, and also are available to 3rd party (non Falcon) LL master
devices. The generic LL slave is updated to operate as shown by the diagram below:
