Cleaver-Brooks ClearFire CFLC-5000 - Boiler Mechanical Assembly CFLC 10000;12000; Burner Assembly

Section 6 — Parts
Part No. 750-363 6-5

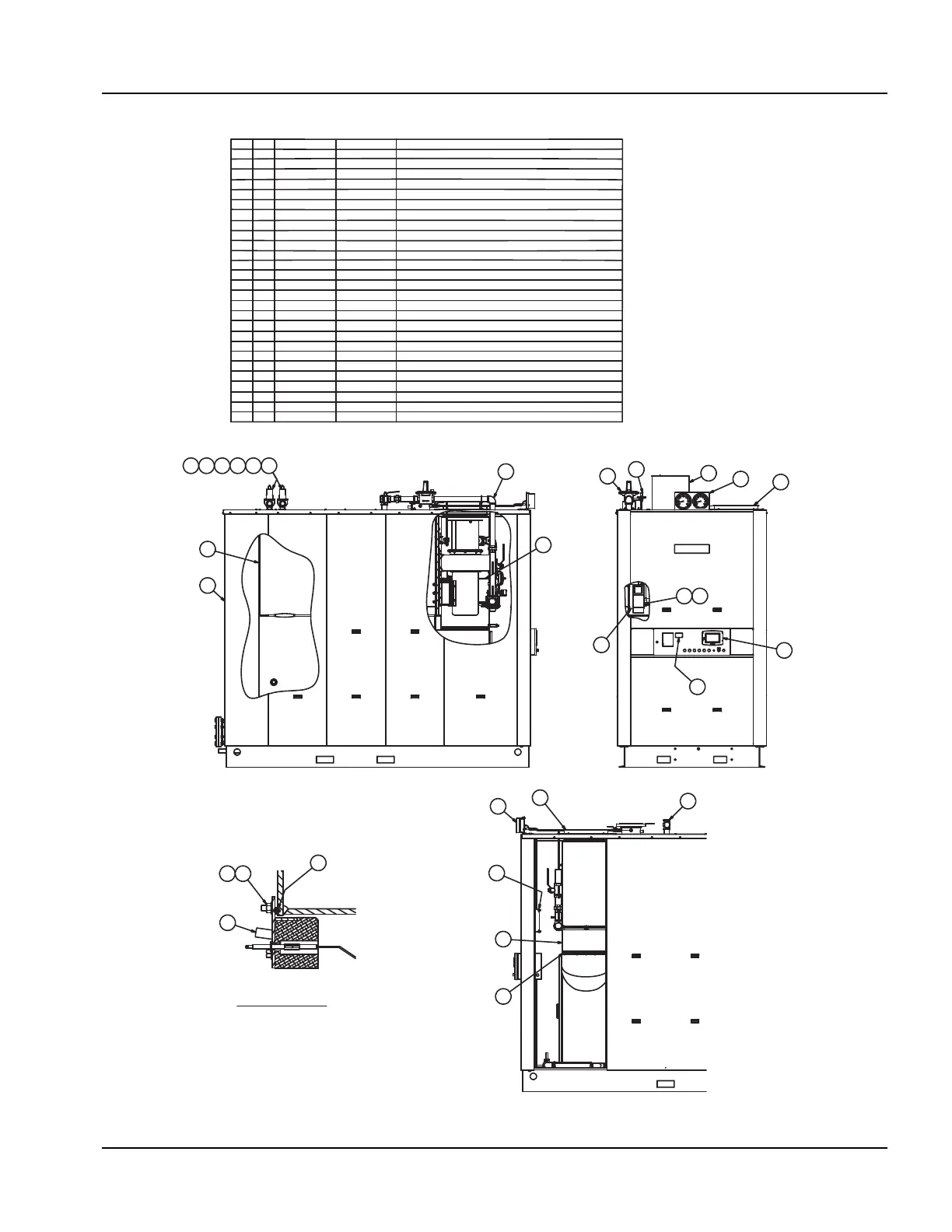

Figure 6-3. Boiler Mechanical Assembly CFLC 10000/12000
DRY OVEN DETAIL
ITEM
QTY
CFLC 12 000
DESCRIPTION
11
270-03743-000 PRESSURE VESSEL ASSEMBLY, CFLC 12M
2
1
853-00996-000 ROPE, FIBERGLASS, 1/2" DIA. X 96-3/4" LG.
3
1
429-01856-000 BURNER ASSEMBLY 20PPM
6
1
465-02775-000 INSULATION & LAGGING ASSEMBLY
7
1 426-03302-000
DUCT, STACK STARTER SECTION, 20" DIA.
8 1 426-03303-000
DUCT, STACK REMOVABLE SECTION, 20" DIA. W/BANDS
9
1
426-03304-000 DUCT, STACK SUPPORT, 20" DIA.
11 1 872-00622-000
ROPE, FIBERFAX, 2300 DEG. 1/2" DIA. x 65" LG.
16 1 185-01247-000 GAS TRAIN, MAIN GAS, SIEMENS
17 1
185-01248-000 PIPING, PILOT GAS TRAIN, CFLC 10M-12M
22
1
833-03366-000 DRIVE, VARIABLE SPEED, POWERFLEX 400, 20HP MOTOR
30
1
507-09839-000 PIPING, AIR VENT AND LWCO PROBE HOLDER
31 1 656-10231-000 INSTALLATION, PRESSURE GAUGE & THERMOMETER
32
1
283-03650-000 CONTROL PANEL
33
1
189-01434-000 PIPING, CONDENSATE DRAIN
36
1
817-00405-000 WELL, SEPARABLE, HONEYWELL, 1/2" NPT. W/CLAMP
41 1
826-00296-000 CABLE HARNESS, MALE END
42 1 090-04723-000 TUBING, AIR SENSING LINE
45 1
940-01267-000
SAFETY VALVE, 160 PSI, 1-1/2" X 2" (STANDARD, SHIP LOOSE)
46 1 940-02952-000
SAFETY VALVE, 125 PSI, 2" X 2-1/2" (OPTIONAL, SHIP LOOSE)
47 1 940-01265-000
SAFETY VALVE, 100 PSI, 2" X 2-1/2" (OPTIONAL, SHIP LOOSE)
48
1
940-00985-000 SAFETY VALVE, 60 PSI, 2" X 2-1/2" (OPTIONAL, SHIP LOOSE)
49
1
940-00811-000
SAFETY VALVE, 60 PSI, 1" X 1-1/4" (OPTIONAL, SHIP LOOSE)
50 2 940-00962-000
SAFETY VALVE, 30 PSI, 2" X 2-1/2" (OPTIONAL, SHIP LOOSE)
52
1
880-02715-000 KIT, AIR FILTER, CFLC 10M-12M
53
1
462-00247-000 HINGE ASSEMBLY, BLOWER
54
1 833-03494-000 CONDUIT KIT, VSD
1
6
45
46
47
484950
16
16
17
9
34
22
54
21
21
11
9
31
31
52
32
30
42
7
2
54
3
CFLC 10 000
270-03916-000
853-00996-000
429-02038-000
465-02775-000
426-03302-000
426-03303-000
426-03304-000
872-00622-000
185-01393-000
185-01248-000
185-01248-000
507-09839-000
656-10231-000
283-03650-000
189-01434-000
189-01434-000
826-00296-000
090-04723-000
940-01267-000
940-02952-000
940-01265-000
940-00985-000
940-00811-000
940-00811-000
880-02715-000
462-00286-000
833-03494-000
