Terminal and dimensions
ID-DCU MARINE
The front panel of the InteliDrive controller is intended for installation in an overall enclosure – rubber seal for
IP 65 - see chapter Technical data.

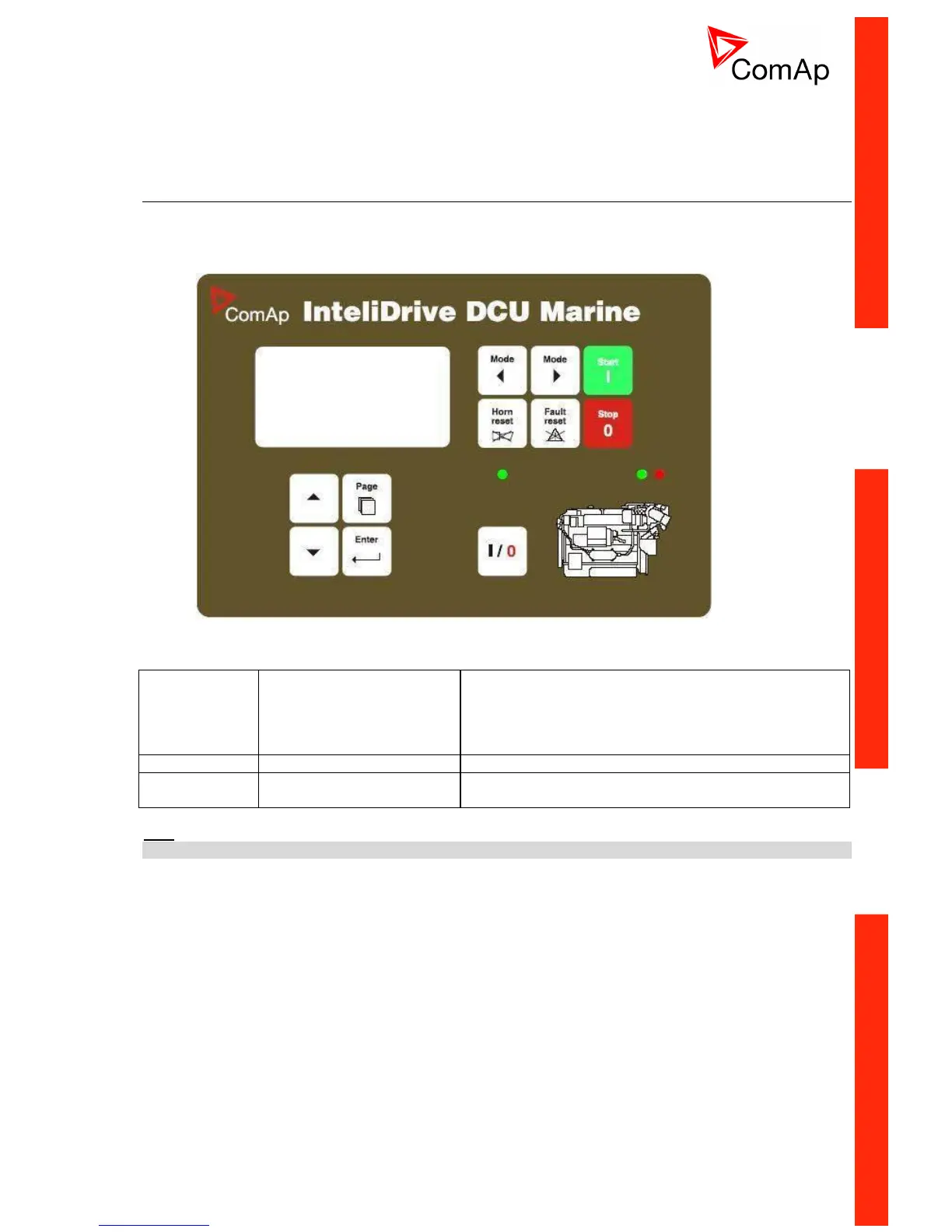

Front panel LED
Right RED
Active alarm indication
Blinks when new alarm is activated.
Steady lights after “Fault reset” confirmation - when alarm
is still active.
Disappears after “Fault reset” confirmation – when alarm
is inactive.
Right GREEN
Engine running indication
Light when engine is running.
Left GREEN
Indication of Binary output
Close load state
Light when output is Closed.
Hint:
Please check the last software version.
