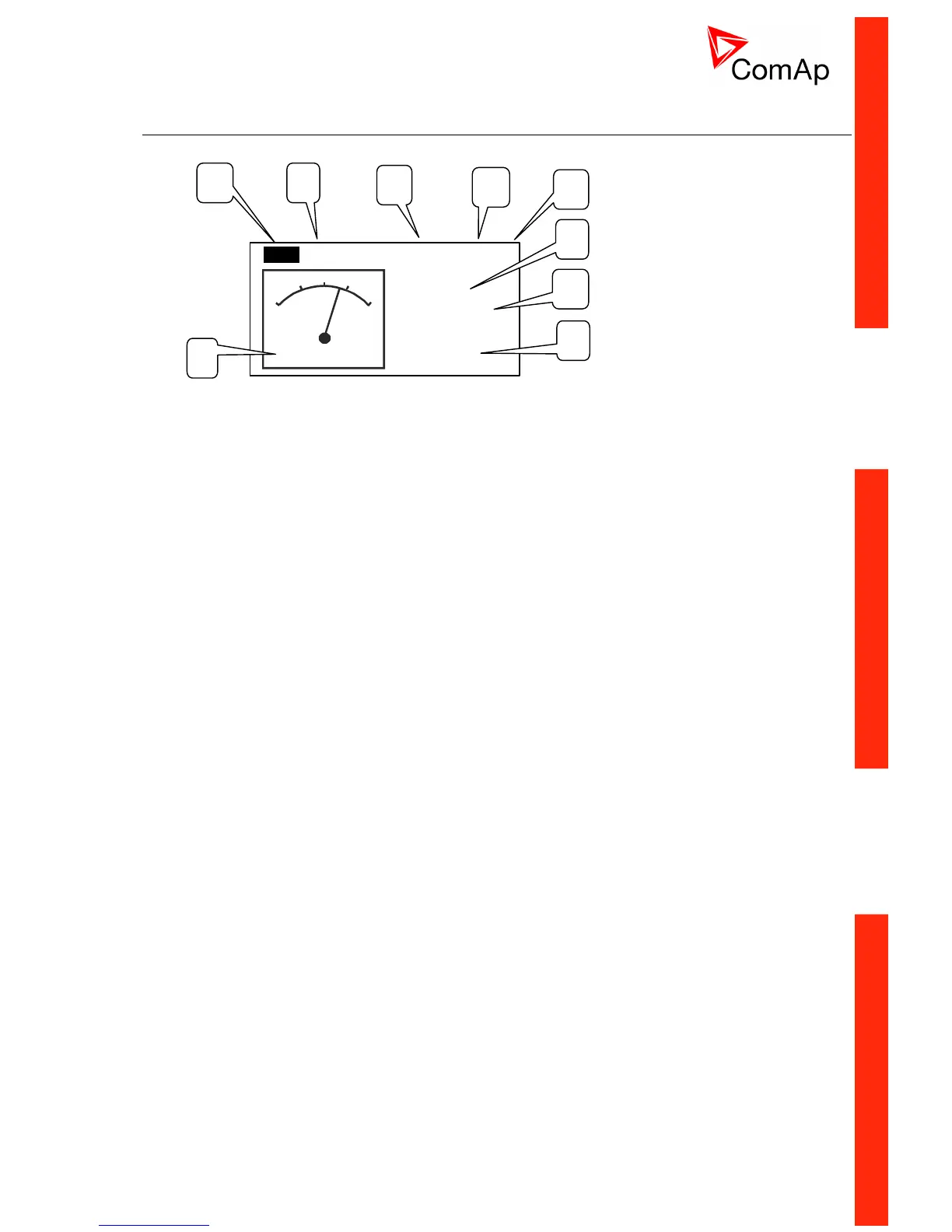

Main screen indication
OFF AUX LOC R L !
Running
Oil press
3,5 Bar
Cool temp
75 C
1500
1. Active controller mode (inverse)
2. Available mode
3. Controller LOC (Local) mode indication
4. R = Remote connection indication (connection to InteliMonitor is active)
L = Access lock indication
5. Record in Alarm list
6. State machine indication
7. Oil Pressure (MainScrAna1) indication
8. Coolant Temperature (MainScrAna2) indication
9. RPM indication
3
2
1
4
5
7
8
9
6
