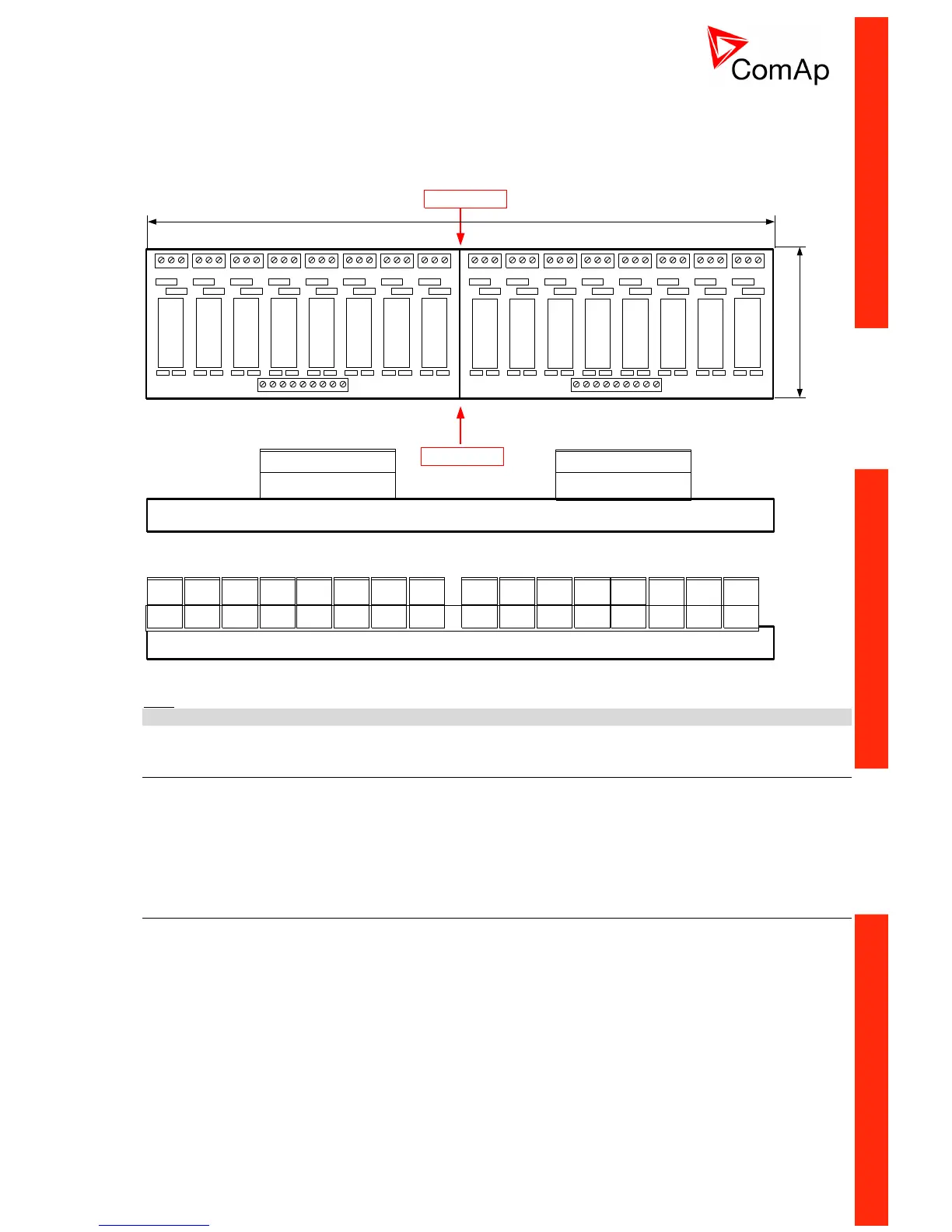

Mechanical dimension
I-RB16 is 35 mm DIN rail mounted. One unit contains two parts (separate PCB) 8 relays each on common
plastic base.
I-RB16, I-RB8 is 60mm high from DIN rail base.
16
X17
11 1 11 1 11
1 +
X18
11 1 11 1 11
RE1
RE2 RE3 ER4 RE5 RE6 RE7 RE8
RE9
RE10 RE11 ER12 RE13 RE14 RE15 RE16
X3
X1
X2X6 X4X5X8 X7X11 X9X10X14 X12X13X16 X15
9 +
8
16 X18 9 +
View B
X18
8 X17 1 +
View B
3 X1 1
X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 X14 X15 X16
View A
3 X2 1 3 X3 1 3 X4 1 3 X5 1 3 X6 1 3 X7 1 3 X8 1 3 X9 1 3 X10 1 3 X11 1 3 X12 1 3 X13 1 3 X14 1 3 X15 1 3 X16 1
View A
300
95
X17
Hint:
I-RB16 contains two separate boards, 8 relay each.
ECU
Electronic Control Unit (fuel injection unit) is kind of extension module connected to CAN1 bus and
communicating via J1939 protocol. Generally can read up to 16 binary and analog values from engine
(inputs) and transmit up to 16 binary outputs (e.g. Start, Stop commands) and four Analog outputs (e.g.
Speed request). ECU Size = Large is extended version of electronic control unit containing doubled number
of inputs / outputs in respect of Standard ECU.
IS-BIN16/8
Extension module with 16 binary inputs and 8 binary outputs. All I/O can be configured to any logical function
or protection - see chapter Binary inputs and Binary outputs. RPM1 and RPM2 inputs are not supported in
InteliDrive.
IS-BIN16/8 module is connected on InteliDrive CAN1 bus. The corresponding module Address must be set
on module and in controller configuration. Communication fail is indicated in controller Alarm list and by
binary outputs Comm BIN fail, Comm BOUT fail. Use DriveConfig PC tool for controller configuration.
The Binary I/O specification see in chapter Technical data.
