Analog inputs on Inteli AIN8
8 channels Analog inputs can be configured as resistor three wire / current / voltage input. Impulse input is
not supported by InteliDrive DCU Marine.
Measuring resistance:

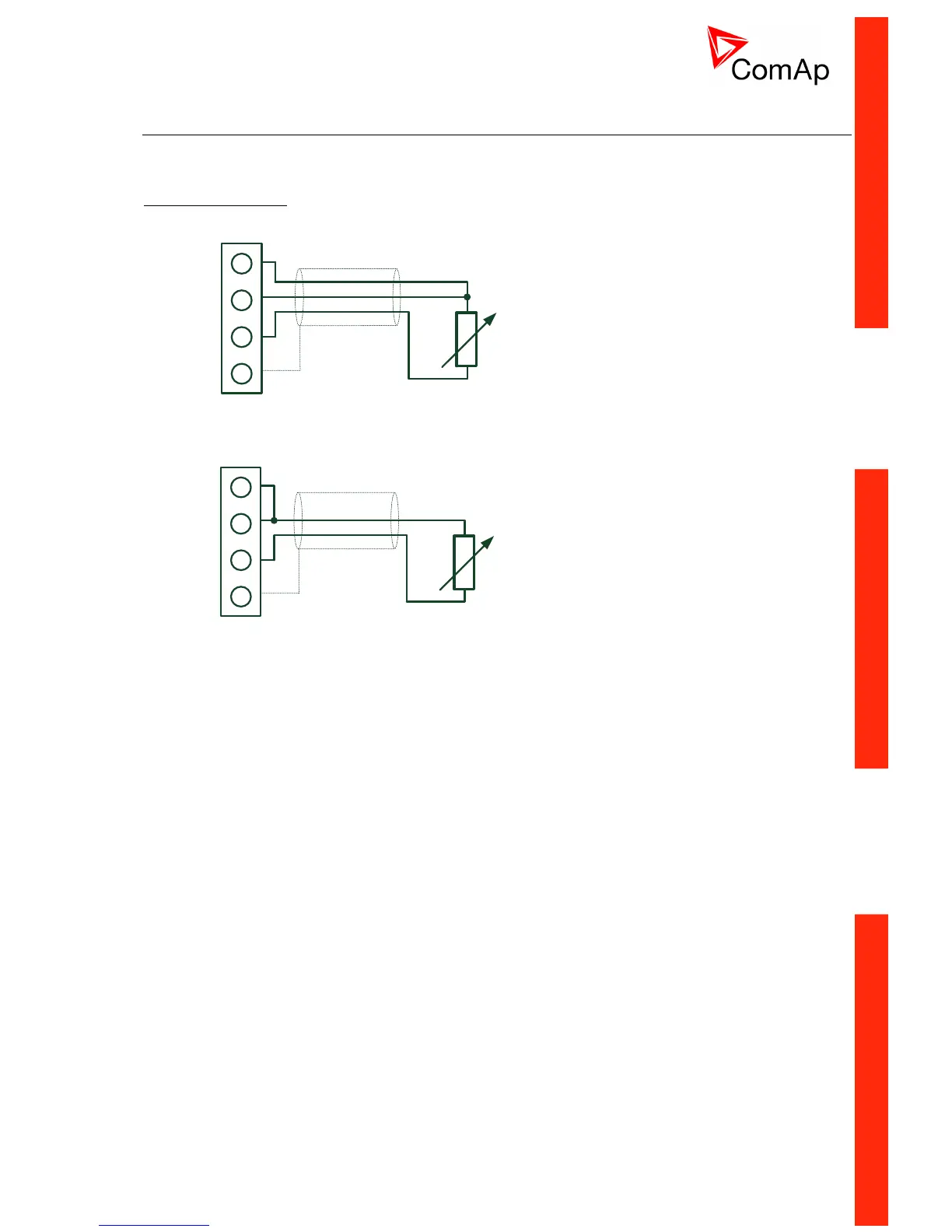

3 – wire measurement
A
B
C
D
Ranges: Pt100, Pt1000, Ni100, Ni1000, 0 – 250Ω, 0 – 2400Ω, 0 – 10kΩ
2 – wire measurement
A
B
C
D
Ranges: Pt100, Pt1000, Ni100, Ni1000, 0 – 250Ω, 0 – 2400Ω, 0 – 10kΩ
