ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 56 -
ID-DCU-MARINE-2.2.2.pdf
controller
BIBI
controller

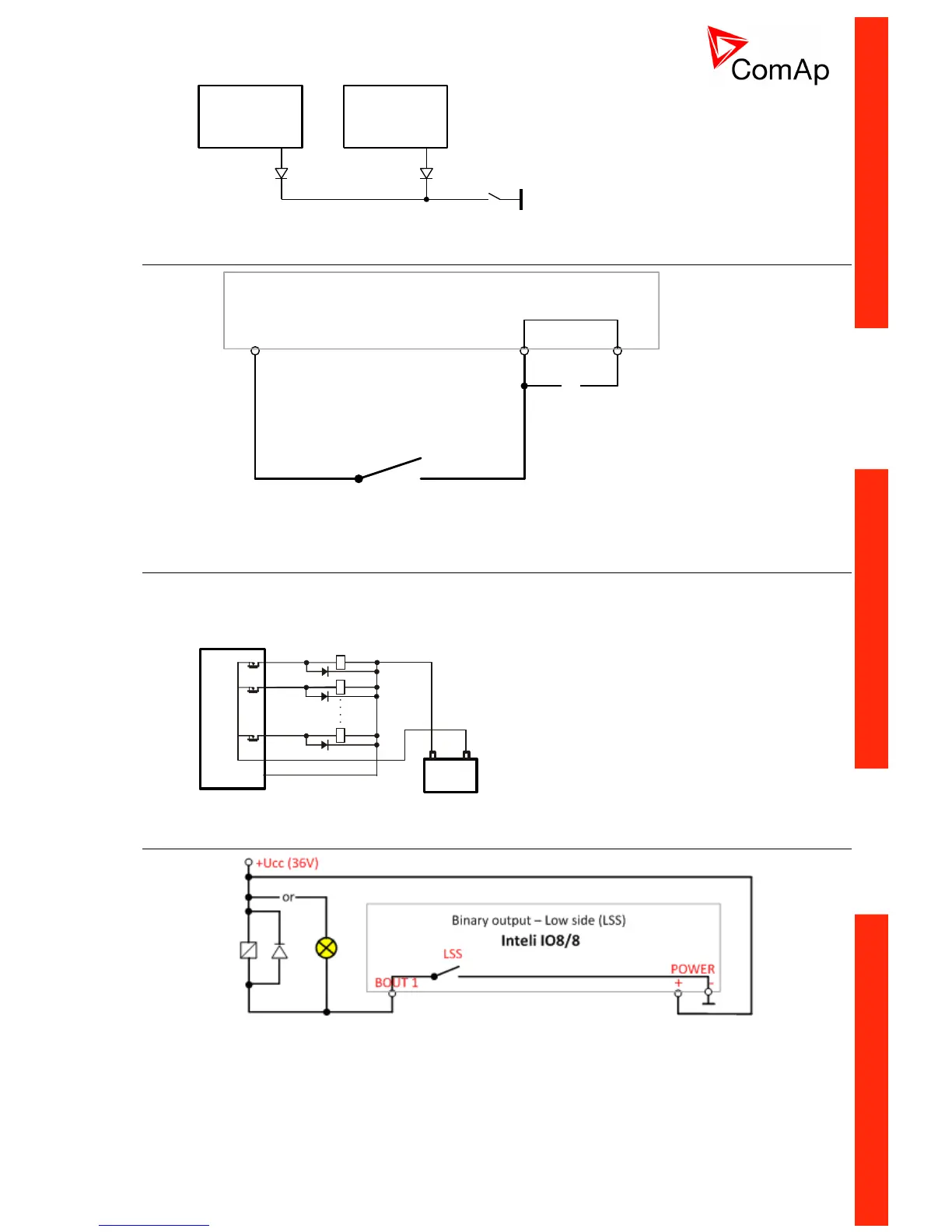

Binary inputs on Inteli IO8/8
BI1 COM
GND
or
Inteli IO8/8
Binary input – pull up
Inteli IO8/8 pull up Binary input
Binary outputs on IS-BIN16/8
IS-BIN16/8 binary outputs are galvanically separated from IS-BIN16/8 power supply. It is necessary to
connect plus 24 VDC (power supply) to IS-BIN16/8 terminal according to following drawing.
The maximum load values are 0.5 A / 36V for one output.
IS-BIN 16/8
BO 1
BO 8
0 V DC
24 V DC
BO 2
+
8 - 36 V
-
Binary outputs on Inteli IO8/8
Inteli IO8/8 low side (LSS) Binary output
