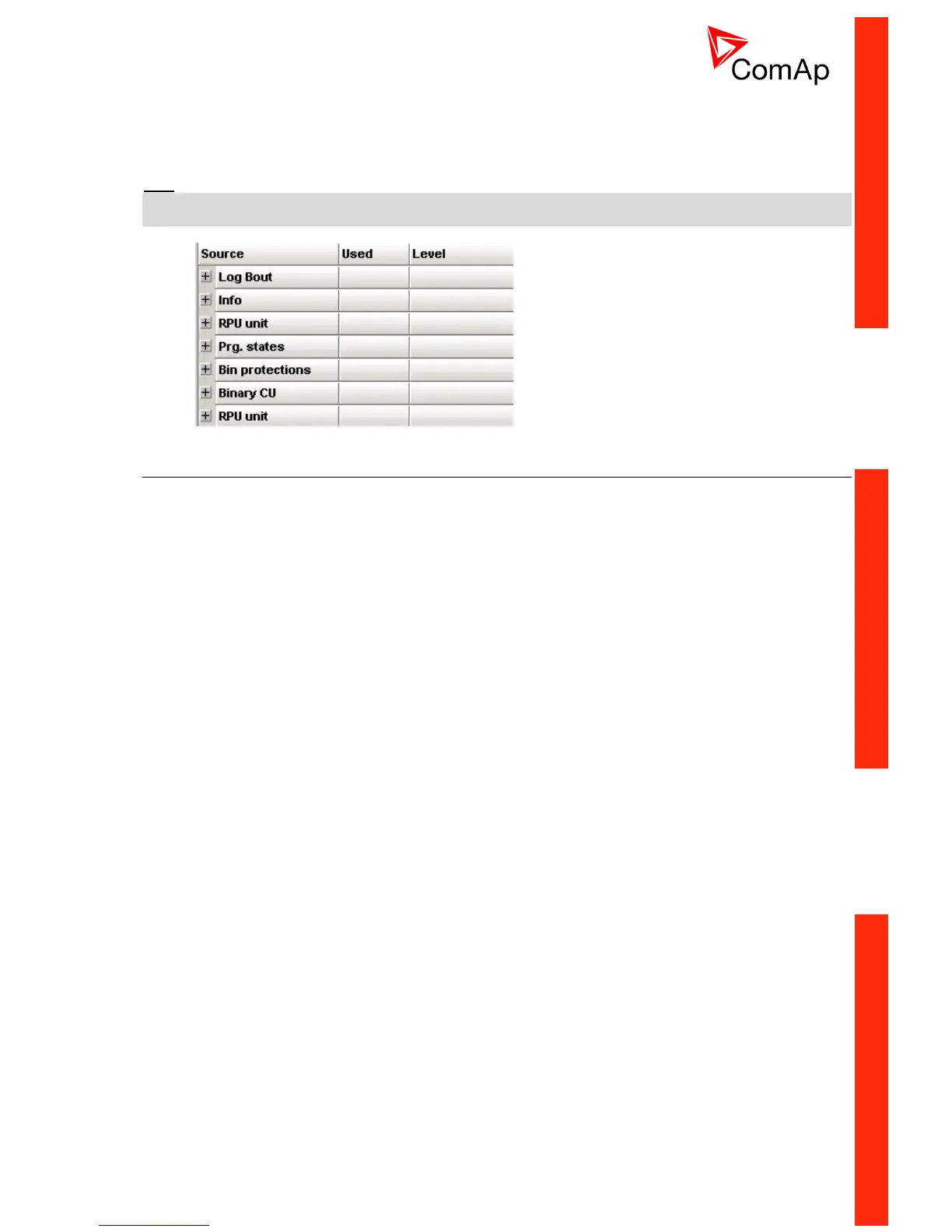

Binary outputs
Hint:
Depending on Modules configuration there are exist more groups of binary items that can be configured to
any physical binary output.
Source: Log Bout
Horn
Binary output for Horn, Buzzer alarm acoustic indication. Output is automatically switched off after Engine
protection: Horn timeout. Horn is active unlimited time (until Fault reset) when Horn timeout = 0.
Alarm
The output closes if any alarm is activated and opens after Fault reset even if the Alarm is still active.
Common Alarm
The output closes if any Wrn, Sd, Cd, Fls, alarm is active and stays closed until all alarms disappear and
Fault reset is pressed = output is opened when Alarm list is empty.
Common Wrn
The output closes when any Warning alarm is active. Output opens when all Wrn alarms disappear and Fault
reset is pressed (no Wrn alarm in Alarm list).
Common Sd
The output closes when any Shut-down alarm is active. Output opens when all Sd alarms disappear and
Fault reset is pressed (no Sd alarm in Alarm list).
Common Cd
The output closes when any Cool-down alarm is active. Output opens when all Cd alarms disappear and
Fault reset is pressed (no Cd alarm in Alarm list).
Common Fls
The output closes when any Sensor fail alarm is active. Output opens when all Fls alarms disappear and
Fault reset is pressed (no Fls alarm in Alarm list).
OFF Mode
The output is closed in controller OFF mode.
