ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 29 -
ID-DCU-MARINE-2.2.2.pdf
Hint:
See more details in separate document IGS-NT & ID-DCU Accessory Modules, the document is available for
download on ComAp web pages.

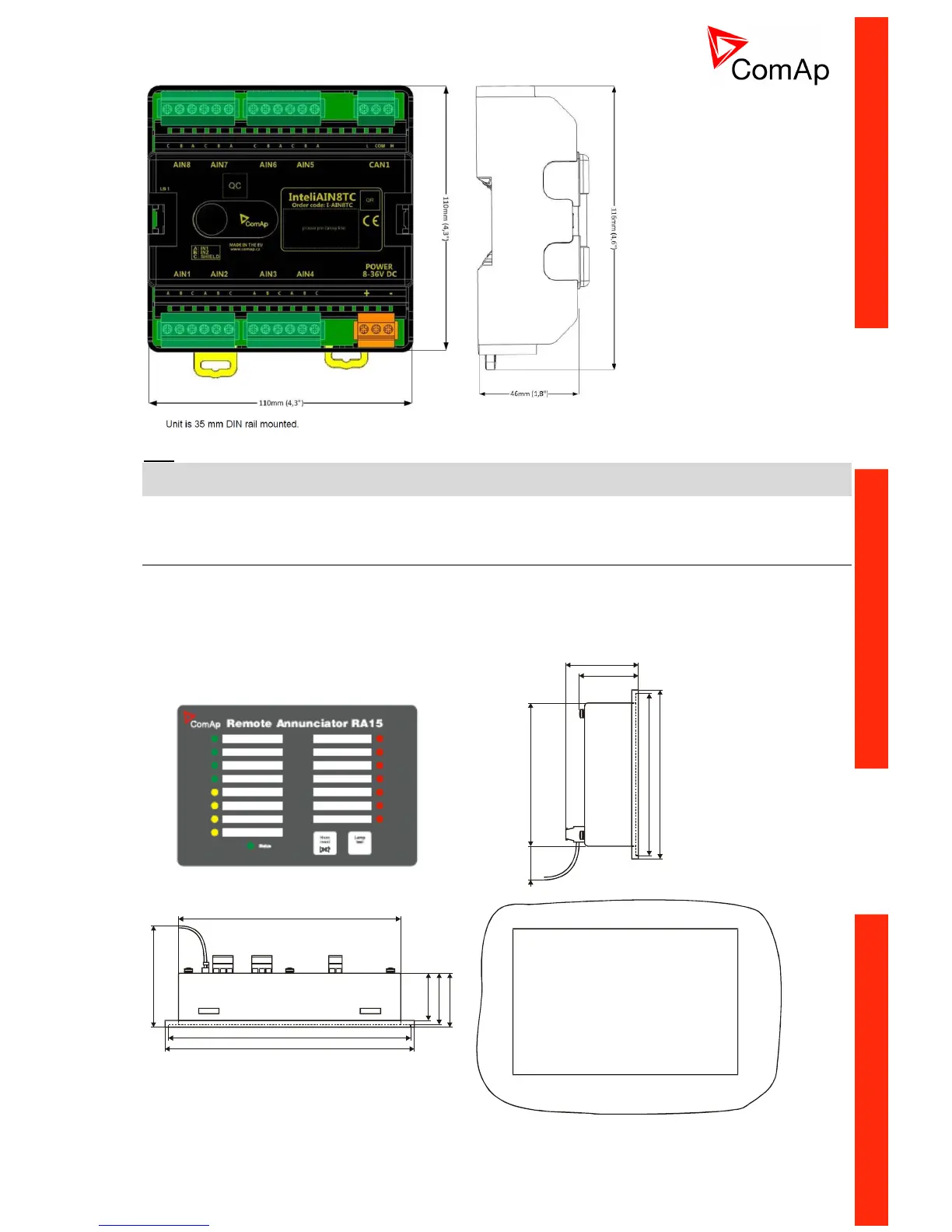

IGL-RA15 Remote annunciator
Remote (CAN1 bus, up to 200 meters) 15 LEDs states indicator. One iGL-RA15 unit can be connected to ID-
DCU MARINE via CAN1 as Binary output group of addresses 5 and 6. Detail descriptions see in IGL-
RA15.pdf user guide.
Communication fail is indicated in controller Alarm list and by binary outputs Comm BOUT fail. Use
DriveConfig PC tool for controller configuration.
165 (6,5”)
38 (1,5”) 40 (1,6”)
~ 75 (3,0”)
~ 35 (1,4”)
180 (7,1”)
185 (7,3”)
106 (4,2”)
44 (1,7”)
54 (2,1”)
~ 25 (1,0”)
120 (4,7”) 125 (4,9”)
Cutout
for Remote Annunciator
167 x 108 mm
(6,6 x 4,3)”

