Analog inputs on IS-AIN8TC
IS-AIN8TC analog inputs can be configured to Thermocouple input only.
Select sensor characteristic from the list or define user sensor characteristic in DriveConfig.

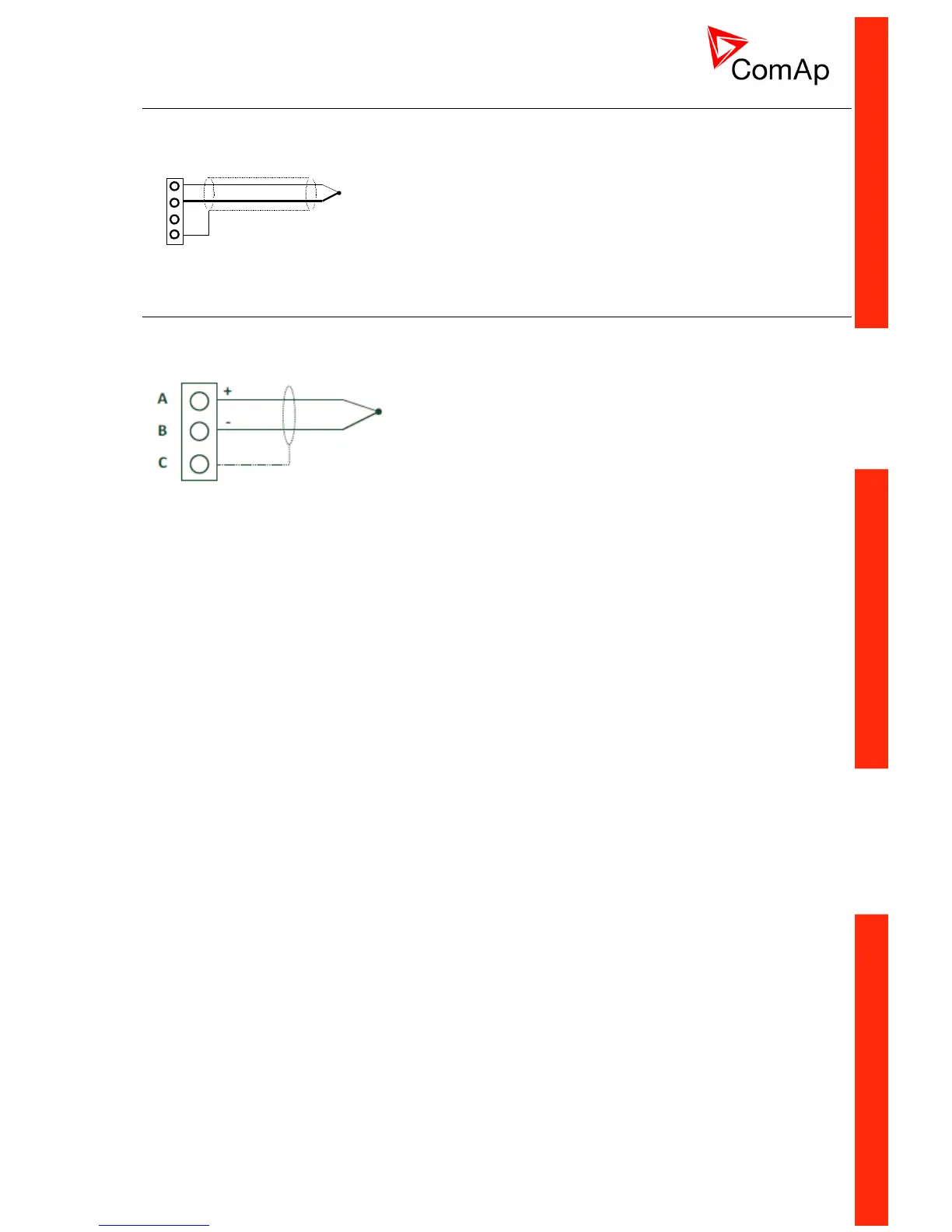

A
B
C
D
+
Thermocouple J, K, L
D terminal is shielding
Analog inputs on Inteli AIN8TC
Inteli AIN8TC module is extension module equipped with 8 analog inputs dedicated for thermocouple
sensors only.
