ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 11 -
ID-DCU-MARINE-2.2.2.pdf

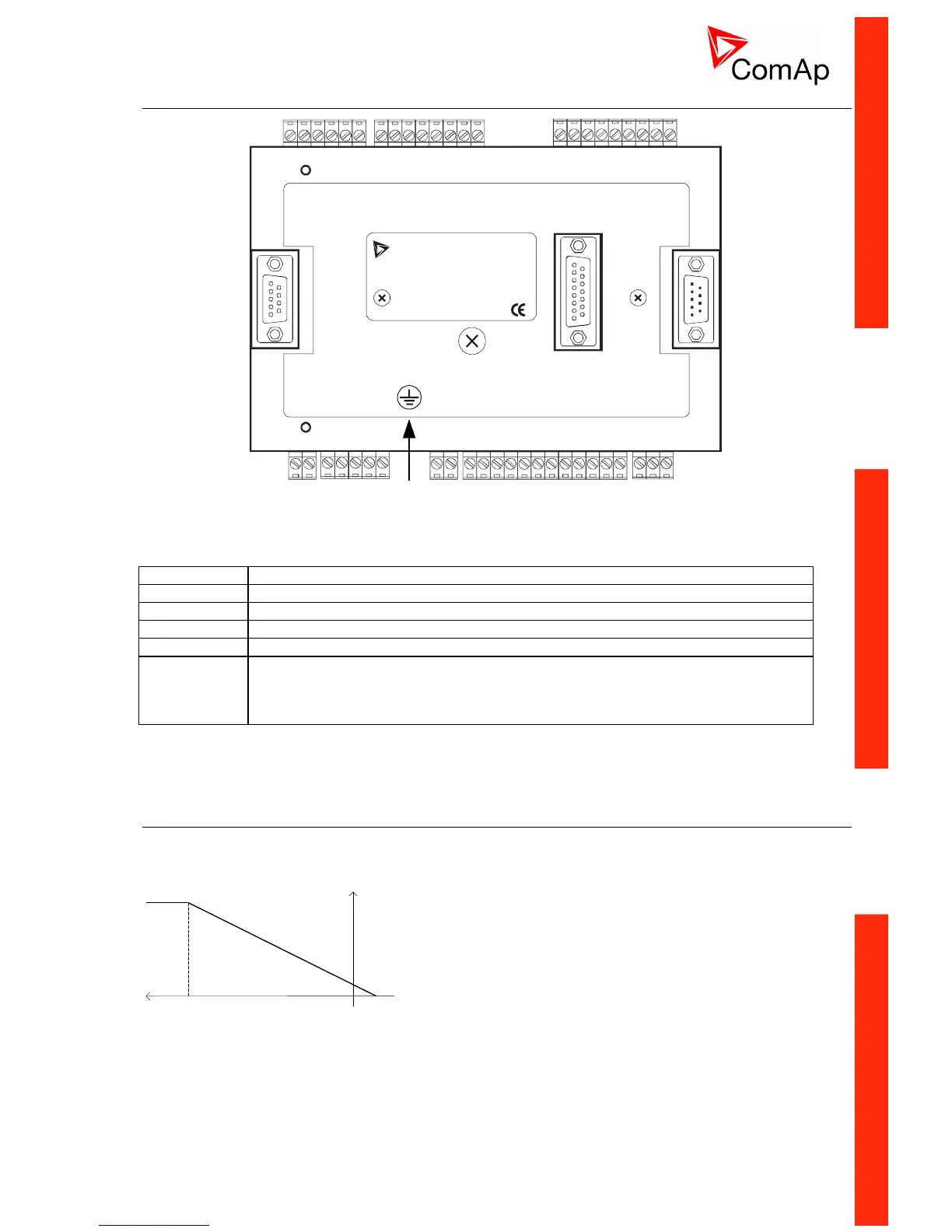

ID-DCU MARINE terminals
Grounding
Terminal
BOOT
JUMPER
BINARY INPUTS
RP
M
BINARY INPUTS
ANALOG
INPUTS
BINARY
OUTPUTS
POWE
R
8 - 36 V DC
EXTENSION MODULE
ID-RPU
RS 232
LB 1
EXTENSION MODULE
ID-COM
+
-
RPM GND RPM IN BI1 BI2 BI3 BI4 BI5
SHIELD
COM
D+ BO1 BO2 BO3 BO4 BO5 BO8 BO6 BO12 BO13 BO14 BO9 BO7 BO10 BO11
AIN1 AIN2 AIN3 AIN4 AIN6+ AIN5+ AIN8+ AIN8- AIN6- AIN5- AIN7+ AIN7- BI6 BI7 BI8 BI9 BI10 BI11 BI13 BI12 BI14
ID-DCU-Marine
RPM
Primary RPM
BI1 to BI14
Binary inputs, active when closed to minus power supply
BO1 to BO14
Binary outputs; Low side switch; 0,5 Amps each;
D+
D plus terminal
AIN1 to AIN4
Analog inputs – group 1
AIN5+, AIN5-
AIN6+, AIN6-
AIN7+, AIN7-
AIN8+, AIN8-
Analog inputs – group 2
ID-DCU xx -LT version with display preheating
LT is an option for extending of operating temperature range from -20 to -40 °C. Heating foil is not part of
standard ID-DCU and ID-MCU (without -LT extension).
Board temperature
+5 °C
- 40 °C
Preheating
3,5 W
The only one low temperature sensitive part is the controller
display.
ID-DCU-Industrial-LT version contains a preheating foil on the
display activated below +5°C (measured on the PCB). Heating
is switched off when controller power supply is below 10VDC
(together with display backlight).
