ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 23 -
ID-DCU-MARINE-2.2.2.pdf

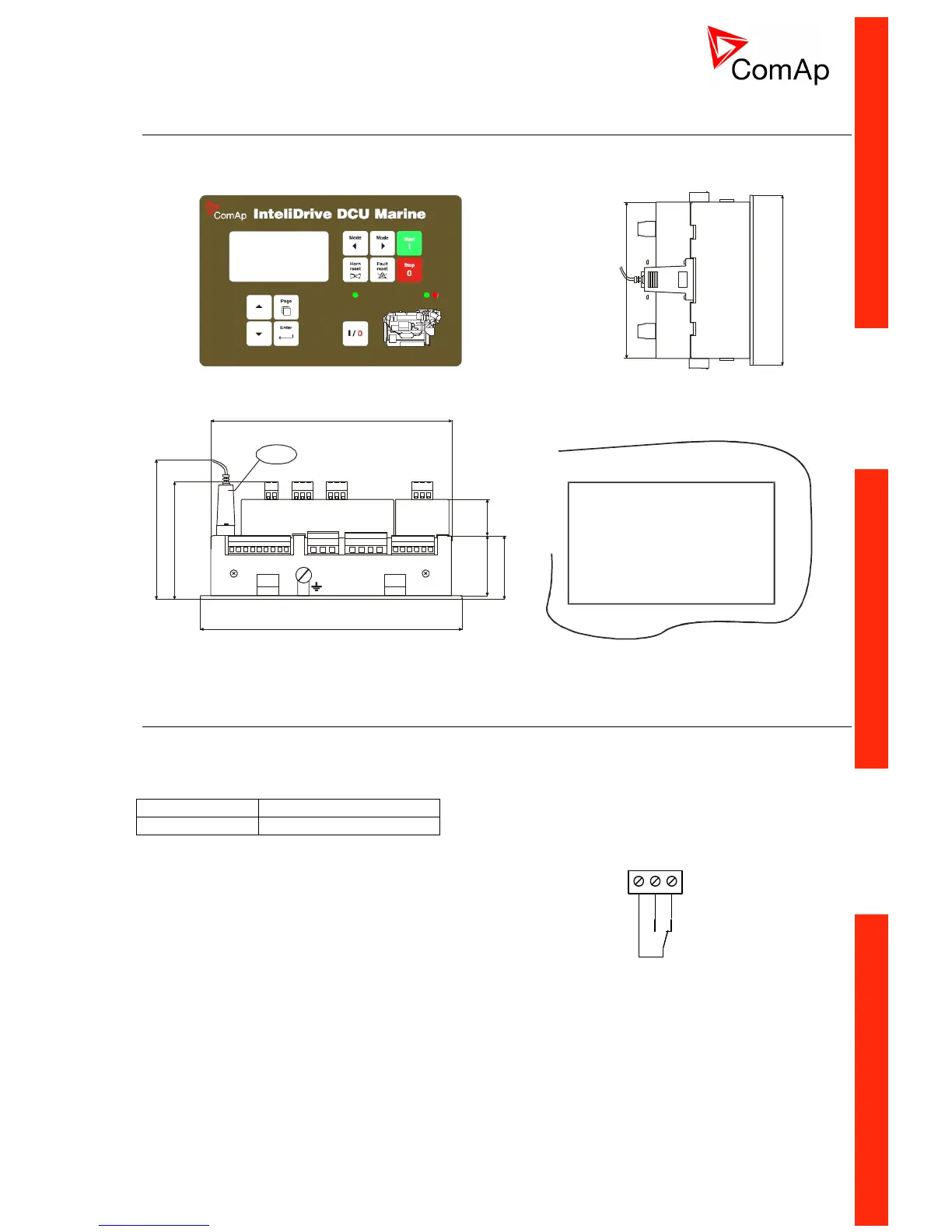

ID DCU MARINE dimensions
ID-COM and ID-SCM are mounted directly to ID-DCU MARINE case.
I-RD-CAN-ID-DCU-MARINE (Slave panel) has the same dimensions.
ID-RPU
ID-CU
ID-COM
183 (7,2")
80 (3,1")
42,5 (1,7")
24
(0,9")
47 (1,8")
~ 110(4,3")
170 (8,87")
RS232
123(4,8")
110 (4,4")
Cutout
for InteliDrive
113 x 175 mm
(4.4 x 6,9“)
ID-DCU MARINE box is fixed using four screw clips.
I-RB8/16 technical description
Relay board contains 16 or 8 relays for ID-DCU MARINE binary (open collector) output separation. All relays
are placed in sockets.
Product options
I-RB16
16 relays, load 24 VDC
I-RB8
8 relays, load 24 VDC
Number relays: 16 or 8 in sockets
Nominal voltage: 24 VDC
Voltage range: 16,8 – 36 VDC
Relay opens at: 10% of nominal voltage
Electric / mechanic cycles: 100 000 / 10 000 000
Operating temperature range: - 40°C to 70°C
Maximal load: 6 A resistive load at 24VDC
4 A inductive load at 24 VDC
Contacts protection: varistor 14DK390 between 1-2 and 1-3
1
K
2 3
1-2 n.o.
1-3 n.c.
