Engine running state
RPM > Engine params: Starting RPM or
Logical Analog Input Oil Press > Engine params: Starting Poil or
Logical Analog Input Coolant Press > Engine params: StartPCoolant (PRP only) or
active BI RunIndication1 or
active BI RunIndication2 or
active BI RunIndication3.
Universal states
State is a value joined to each Analog input or value. State indicates if any protection configured on
corresponding analog input is active or not. When there is any state configured as protection the
corresponding Binary output appears in Analog protection list and can be used for selective external
indication of the Alarm.
State is resetted (output is opened) when corresponding Alarm is not active and confirmed (Fault reset was
pressed).
Protection limit
A
n
a
l
o
g
v
a
l
u
e
i
n
c
r
e
a
s
i
n
g
A
n
a
l
o
g
v
a
l
u
e
d
e
c
r
e
a
s
i
n
g
Fault reset button
Protection state
There are seven universal (free) states available in ID-DCU MARINE-2.2 that are not joined to any value or
input.
They can be used mostly for some values that have not state (e.g. RPM or other that are not measured on
Analog input). This way can be configured protection to any ID-DCU MARINE internal value or more levels
external indication.

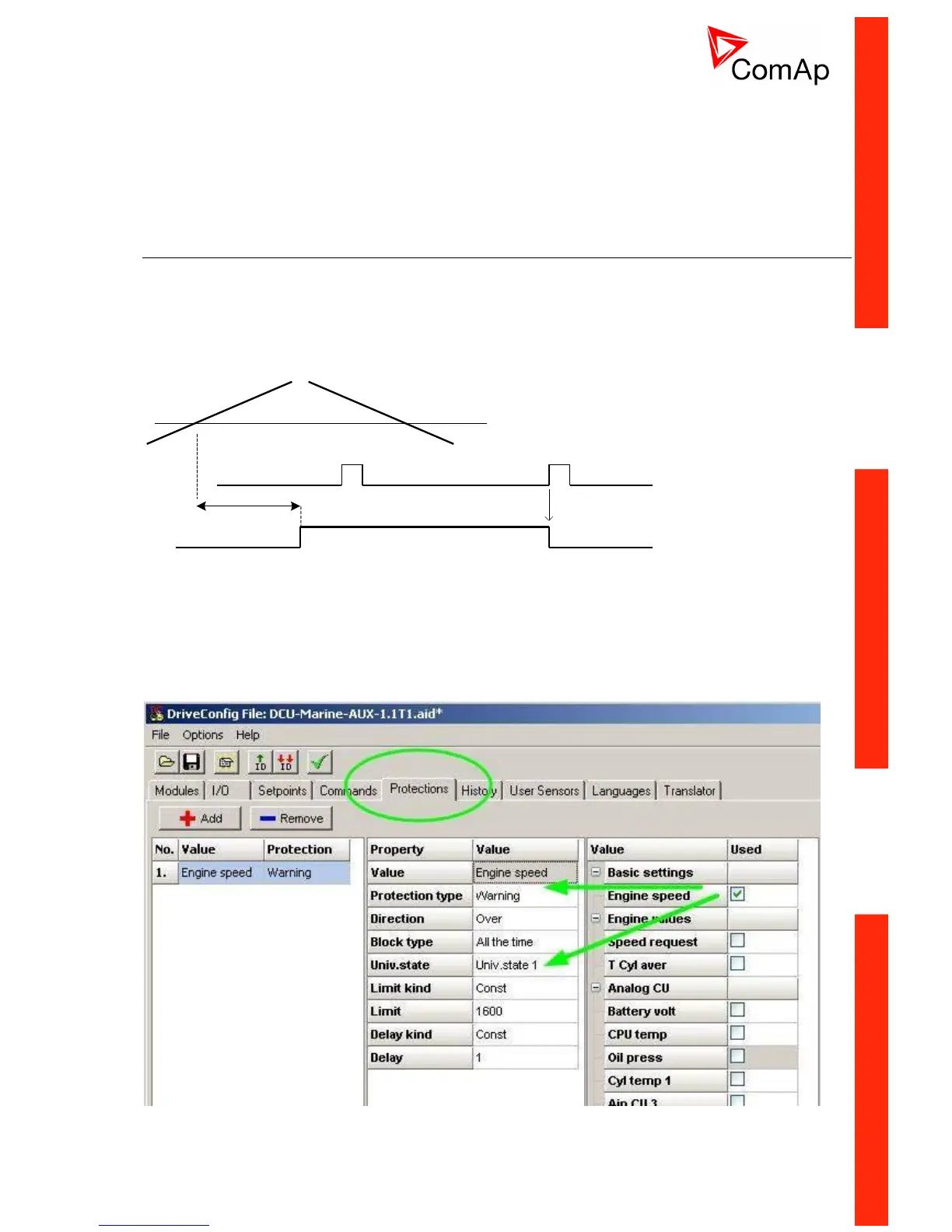

Example of Universal state1 configuration to Engine speed (Warning for Engine speed > 1600RPM, 1s):
This configuration is available in DriveConfig – Expert mode.
