Analog output configuration
Any of values from the Source list can be configured to any physical or ECU/J1939 (virtual) Analog output.
Analog outputs availability
Module
Number of outputs
Note
ID-SCM
3
10V or 20mA or 10V/10kΩ
IGS-PTM
1
10V or 20mA
I-AOUT8
8
10V or 20mA or pwm
I-IO8/8
2
20mA (10V or pwm not supported
by ID-DCU Marine 2.2)
ECU (J1939)
4 (virtual)
Format depends on ECU

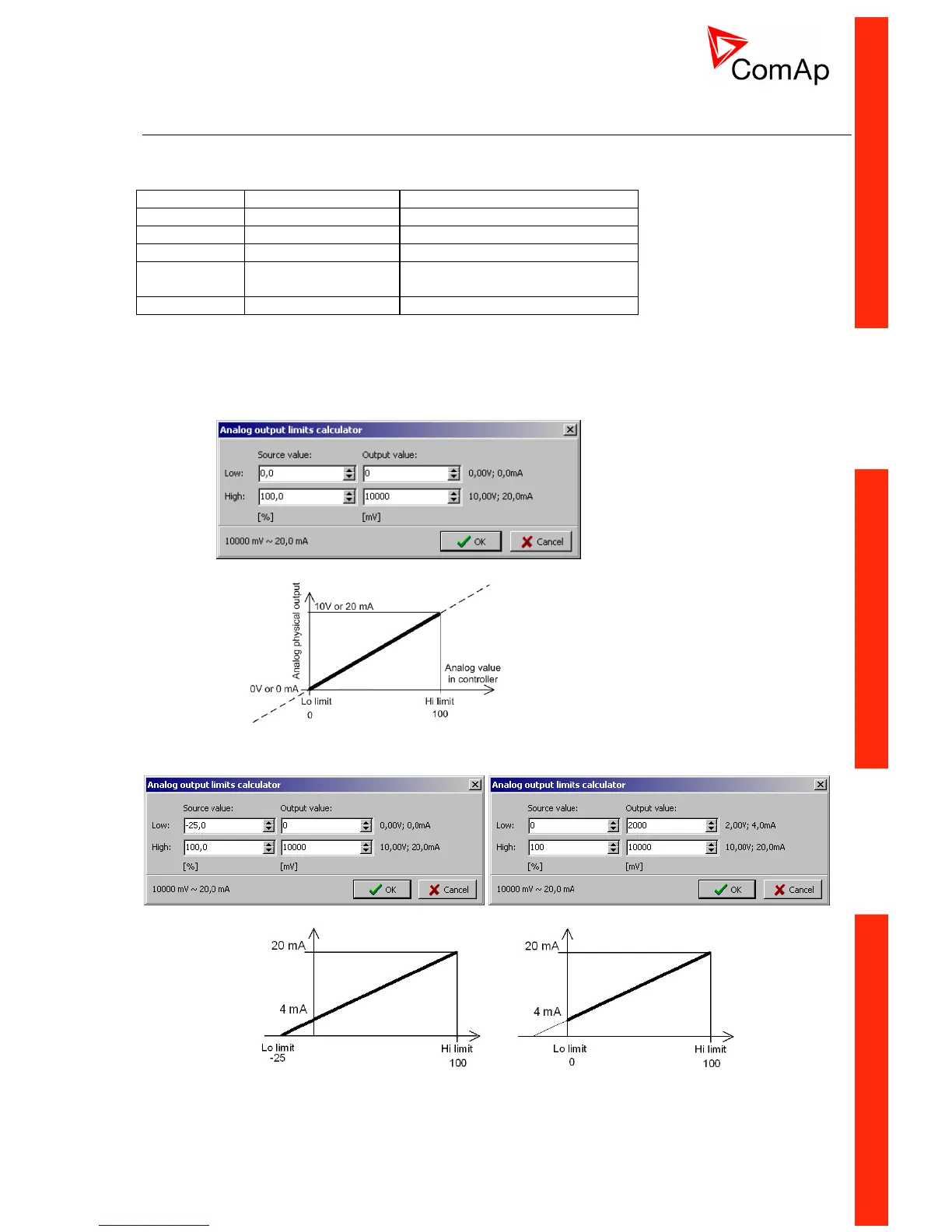

Analog output configuration
It is possible to convert Source analog value by linear interpolation (conversion). The conversion is given by
definition of two points, Low and High one.
Following is example of transfer characteristics 0 - 100% to 0 – 20mA.
Following are examples of transfer characteristics 0 - 100% to 4 – 20mA. The first case is transfer
characteristics -25 - 100% to 0 – 20mA, it contains the needed conversion to 4 – 20mA.
