Outputs
AOUT1, AOUT2: Two configurable analog outputs for indication or any loop control. Outputs are jumper
adjustable between 0 to 10VDC and 0 to 20 mA.
AOUT3 - Speed governor: Configurable analog voltage interface to engine speed governor for mechanical
engines (without ECU). Output is jumper selectable between ±10VDC and ±10VDC via 10 k or PWM
(1600Hz / 5V, 10mA max).
Default jumpers setting: AOUT1 and AOUT2 ~ 0-10VDC; Speed governor ~ ±10VDC; RPM1 and
RPM2 ~ opened jumper (divides input frequency by 1).

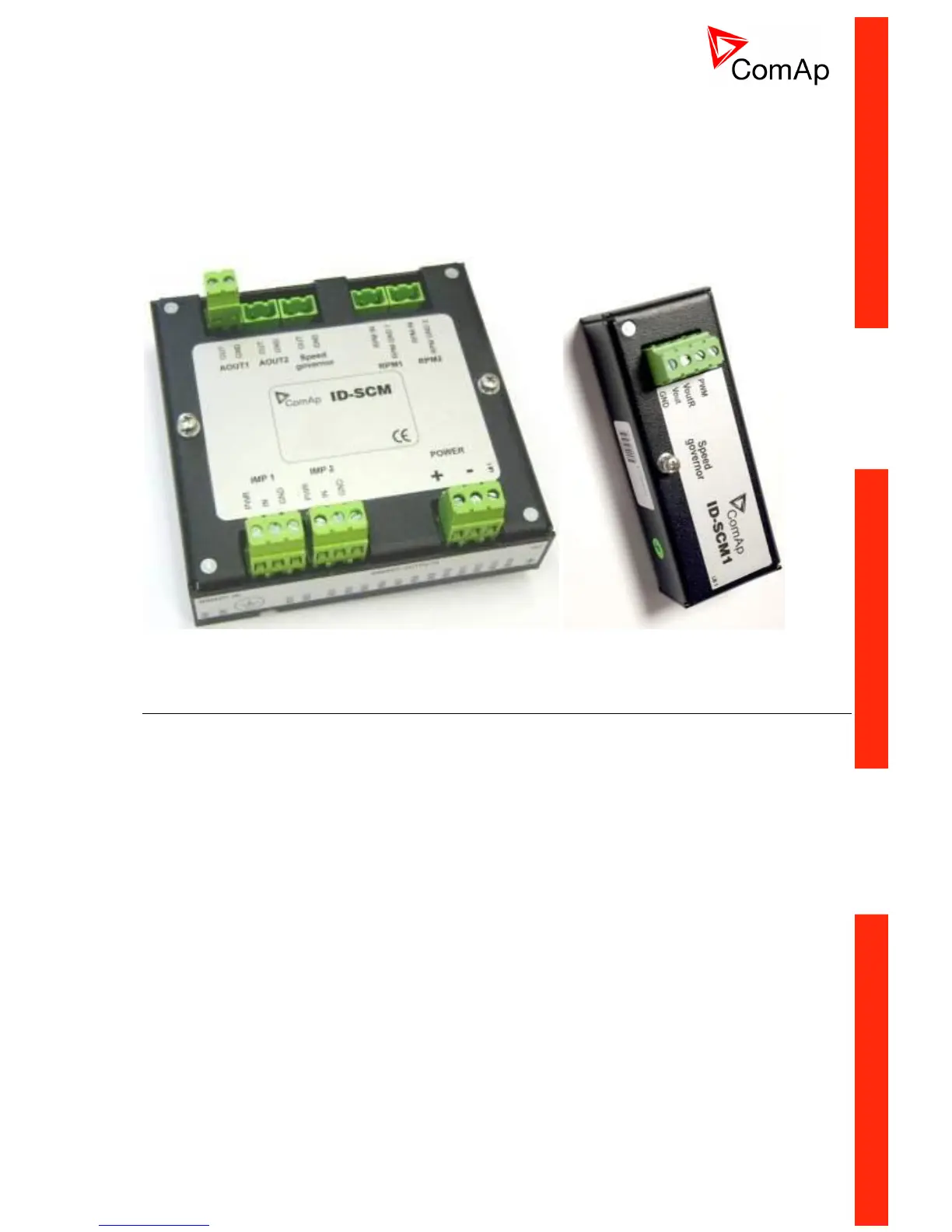

ID-SCM1
ID-SCM cost effective version with just one Speed governor output. ID-SCM1 module is one analog output
module for InteliDrive industrial or marine applications. Module is mounted directly to ID-DCU MARINE
controller case.
Technical data
Power supply: internal supply from ID-DCU MARINE (8 to 36 VDC)
Operating temperature range: -40°C to +70°C
Number of analog outputs: 1, no galvanic separation
Analog output refreshment: 100 ms
Analog output options
a) PWM 1600 Hz (fix), 5V level, max 10 mA
b) 0 to 10VDC ± 1%, 10 k output resistance
c) 0 to 10VDC ± 1%, max 5 mA (voltage output)
Configuration in DriveConfig
a) Module = SCM
b) I/O – Analog outputs – SCM - AOUT1 (only)
a. Source
b. Low convert limit
c. Hi convert limit
