ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 12 -
ID-DCU-MARINE-2.2.2.pdf

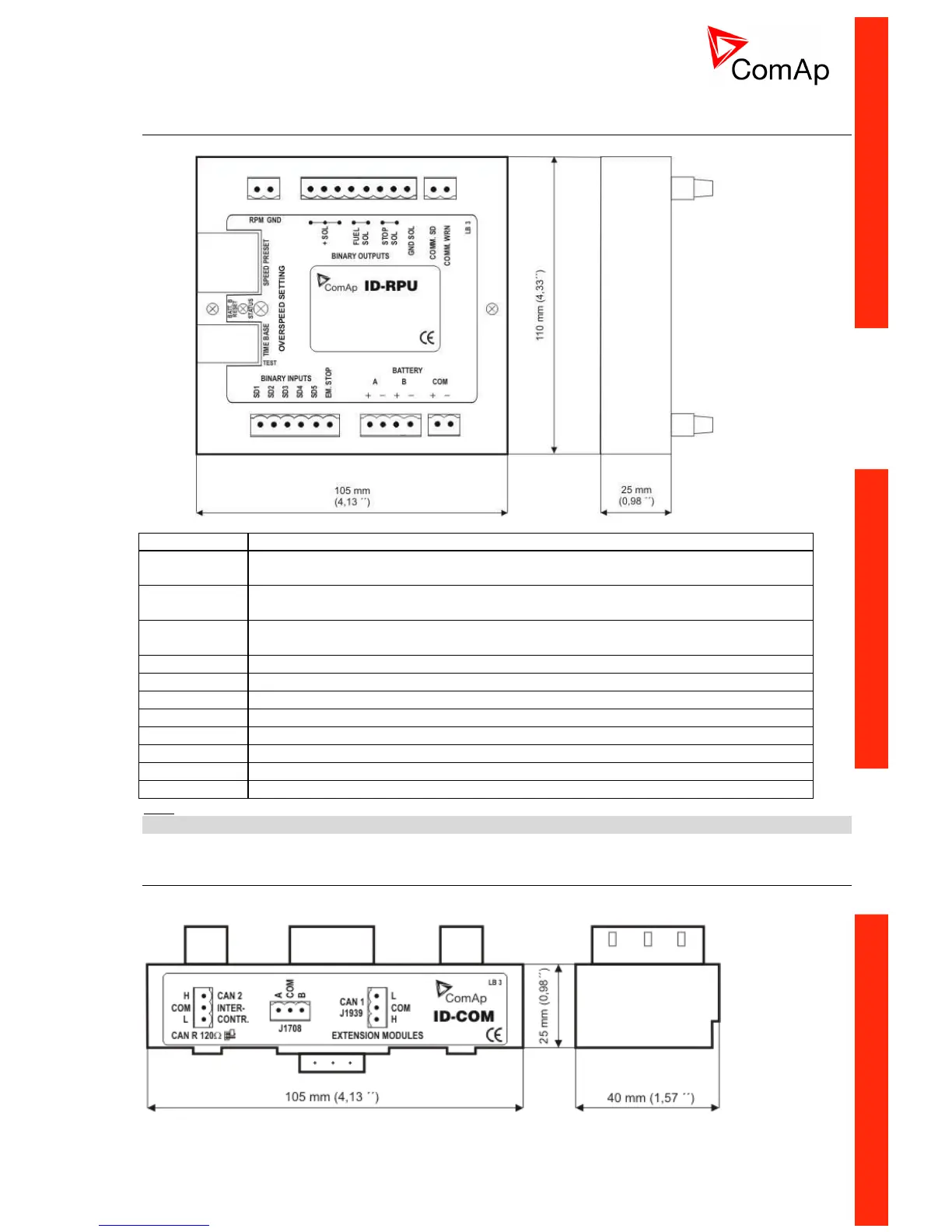

ID-RPU terminals
Redundant Protection Unit. ID-RPU is mounted directly to ID-DCU MARINE box.
RPM
Secondary RPM
+SOL
Common power supply for galvanic separated Fuel solenoid and Stop solenoid
outputs.
FUEL SOL
Fuel solenoid output, High side switch (8 Amps), BW detection in open state or above
1 amp load
STOP SOL
Stop solenoid output, High side switch (8 Amps), BW detection in open state or above
1 amp load
GND SOL
Common GND for Fuel and Stop solenoid outputs
COMM.SD
Common Shut down output, Low side switch (0,5 Amps)
COMM.WRN
Common Warning output, Low side switch (0,5 Amps)
SD1 to SD5
Shut down inputs, BW detection, Normally open
EM.STOP
Emergency stop input, Normally closed
A+, A-
Primary battery
B+, B-
Secondary battery
COM+, COM-
Battery A, B output to ID-DCU MARINE
Hint:
10 k resistor must be connected in parallel to SD1 to SD5 inputs.
ID-COM terminals
Communication interface ID-COM is mounted directly to ID-DCU MARINE box.
