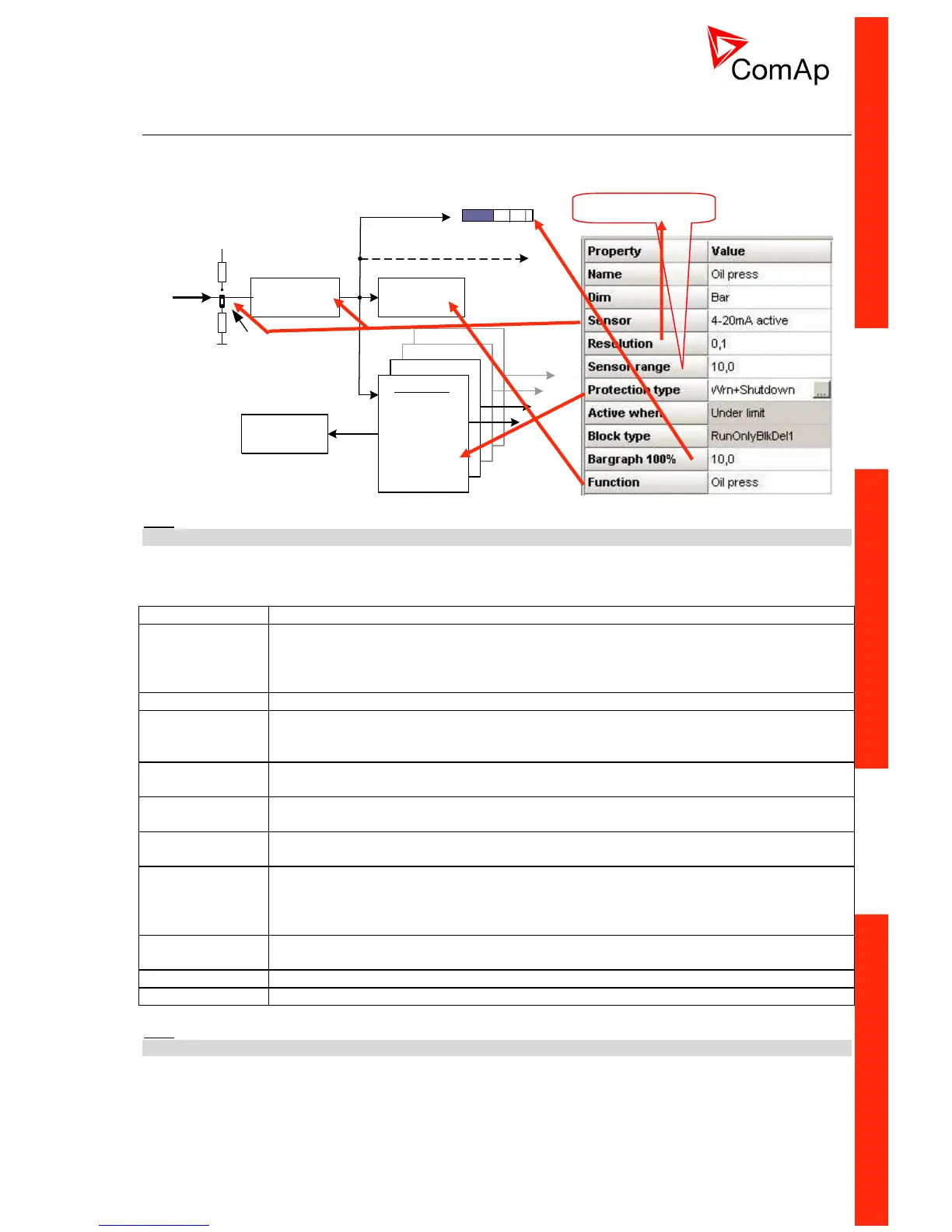

ID-DCU MARINE Analog inputs software configuration
See table below
Protections:
No protection
Warning
Sensor fail
Colldown
Shutdown
Alarm only
HistRecord only
Protections:
No protection
Warning
Sensor fail
Colldown
Shutdown
Alarm only
HistRecord only
Protections:
No protection
Warning
Sensor fail
Colldown
Shutdown
Alarm only
HistRecord only
Sensor
characteristics
+
R
I
Analog input
Protections:
No protection
Warning
Sensor fail
Colldown
Shutdown
Alarm only
HistRecord only
Logical analog
input list
Analog output
Binary outputs
State machine
Hardware
jumper
ID-DCU
Value
Bargraph
Hint:
ID-DCU MARINE hardware jumper must correspond with software configuration.
Configuration
See drawing above.
Property
Value
Name
Value name is displayed on the screens and in the Alarm list and History record.
Enter up to 14 ASCII characters.
Name is automatically set to Function name if function is selected from the Logical
function list – see Function item.
Dim
Dimension is displayed on the screens. Select dimension from the list or add a new one.
Sensor
Select sensor from the list or create a customer sensor characteristics in User sensor
window. There must be corresponding analog input hardware jumper setting in
InteliDrive controller. See Sensor availability in table below.
Resolution
Output value (reading) resolution. DriveConfig indicates when Resolution is out of the
value range.
Sensor range
Full output value (reading) range for 20 mA (current), 250 Ω, 2400 Ω (resistive), 1 V, 4V,
5V, 100 mV (voltage) sensor.
Protection type
Select from the list. Configure two levels protection as standard or more levels (window)
protection in Expert mode.
Active when
Configure direction Over or Under limit when protection is activated. Options “Under
limit+Fls” and “Over limit+Fls” means that the protection is activated in case of Analog
Input value is Under/Over the protection limit or in case that non valid value (####) is
indicated on the Analog Input.
Block type
Configure protection activity: All the time or Engine running with three different
adjustable delays when protection is active after engine start (RPM > Starting RPM).
Bargraph 100%
Value for bargraph full scale.
Function
Select from the list if function is required or leave free if input is a protection only.
Hint:
Some configuration items (e.g. Protection) stay without change when Property - Sensor is changed to None.
20mA = 10,0 Bar
