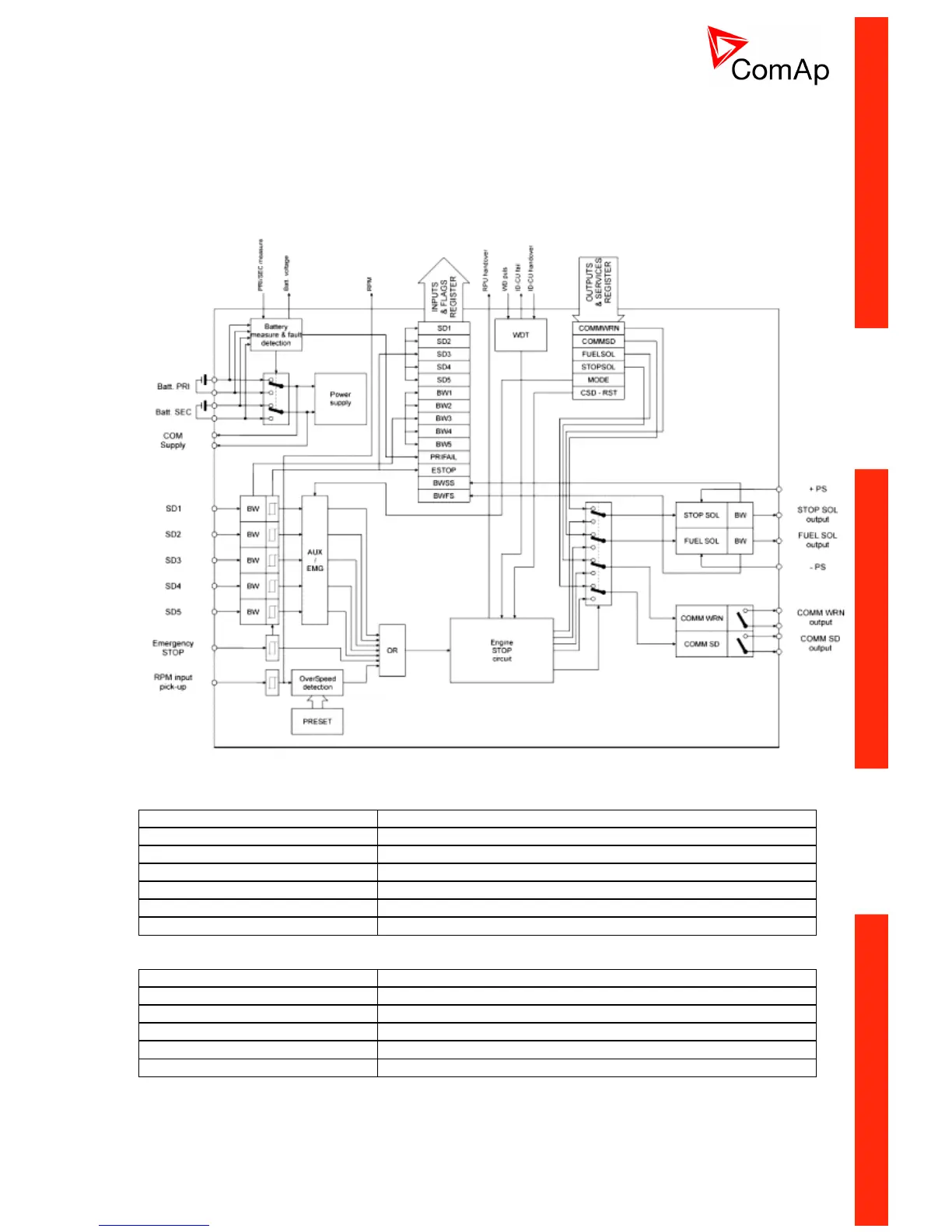

ID-RPU
Redundancy protection unit
Binary information from ID-RPU to ID-DCU MARINE
Symbol
Meaning
SD1 … SD5
State of all binary inputs SD1-SD5
BW1 … BW5
State of all BW protections
PRIFAIL
Primary A battery fail = switched to B battery
ESTOP
Binary input Emergency stop state
BWSS
Stop solenoid output BW indication
BWFS
Fuel solenoid output BW indication
Binary information from ID-DCU MARINE to ID-RPU
Symbol
Meaning
COMMWRN
Binary output Common warning
COMMSD
Binary output Common shut down
FUELSOL
Binary output Fuel solenoid
STOPSOL
Binary output Stop solenoid
MODE
Controller application AUX – EME (or Sd override active)
