ComAp InteliDrive DCU Marine Reference Guide

ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 35 -
ID-DCU-MARINE-2.2.2.pdf

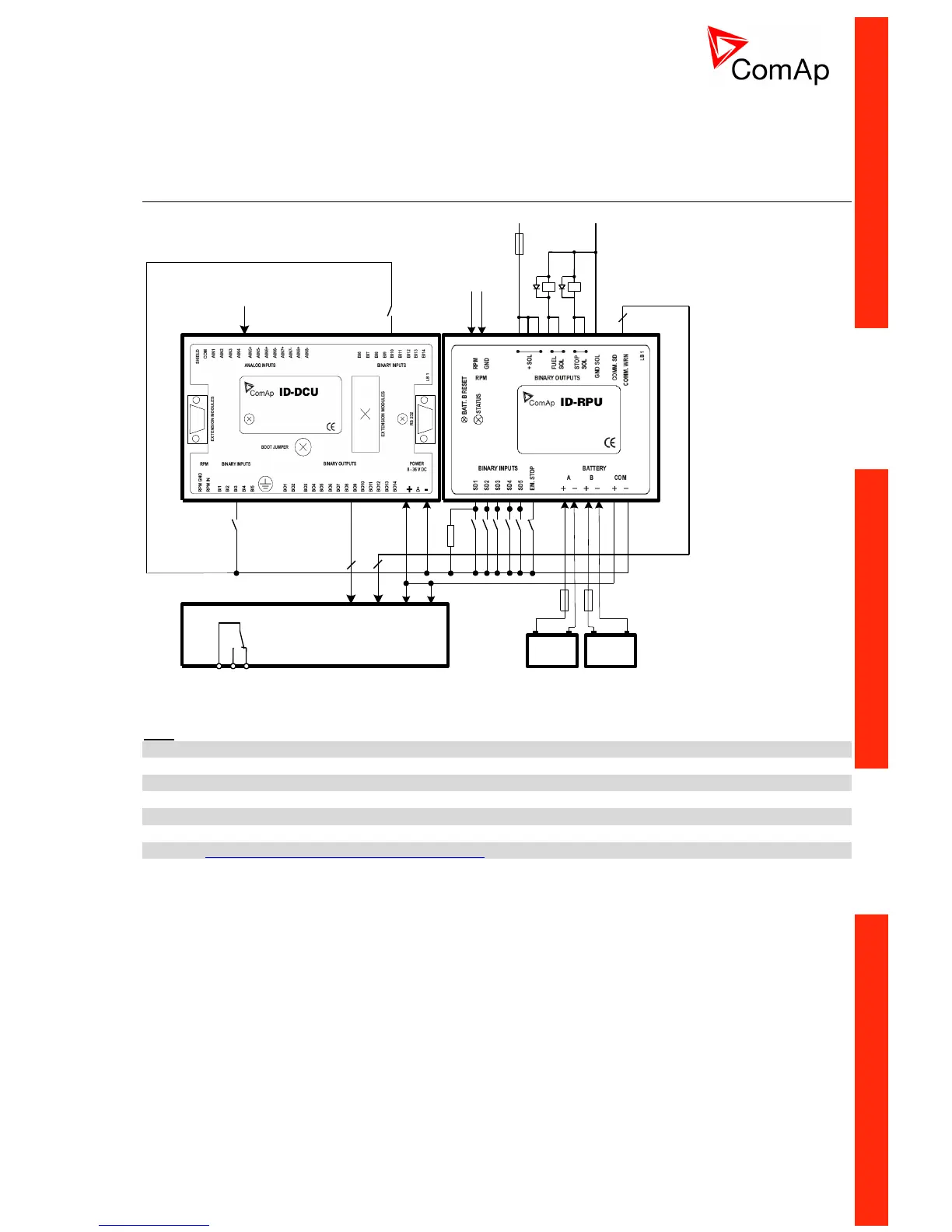

Recommended wiring
ID-RPU wiring
14
BATT A BATT B
+ +
-
-
+24VDC
0VDC
Max 8 A
Max 8 A
2
2
n.o.
n.c.
+
-
K17 K18
I-RB16
9 9
1 2
3
16x
K1-K16
5x10kohm
Hint:
BW protection of the ID-RPU outputs Fuel solenoid and Stop solenoid is active in open state only.
To avoid BW detection configure not wired inputs or outputs of ID-RPU as Not used by DriveConfig sw.
Battery minus terminals are separated.
See also Recommended wiring according DNV rules.
