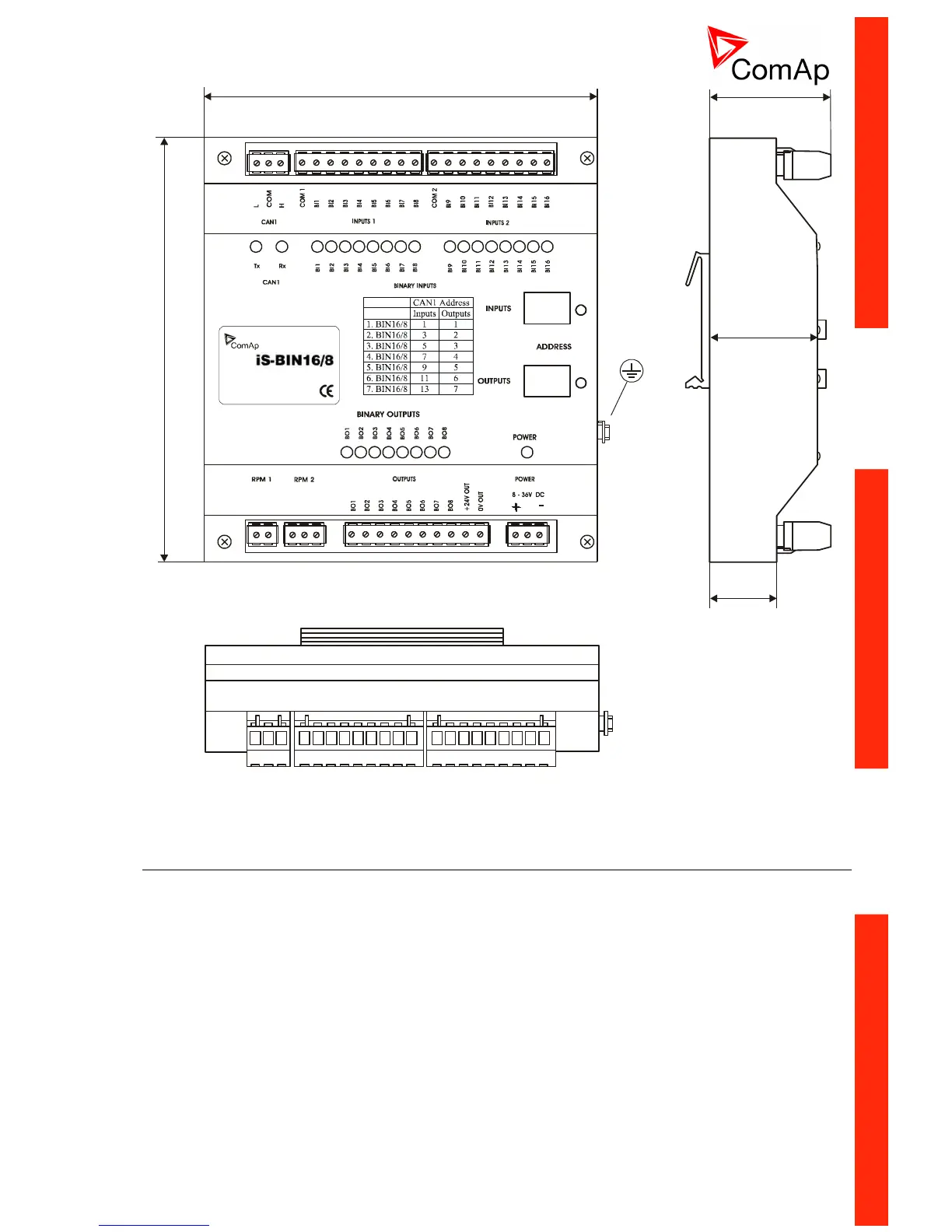

IS-BIN16/8 unit is DIN rail mount (35mm)
Inteli IO8/8
“Inteli IO8/8” is the name of the module, but it is possible to configure the module (by internal switch) to two
configurations:
1. Inteli IO8/8 (8 binary inputs, 8 binary outputs and 2 analog outputs)
2. Inteli IO16/0 (16 binary inputs, 0 binary outputs and 2 analog outputs)
Default configuration of module:
In case that the software of the controller doesn’t support this module (it is the ID-DCU Marine 2.2 case), you
can add this module to the configuration as standard BIN / BOUT / AOUT extensions (as group of 8 signals).
In this case you cannot define the type of Inputs / Outputs, all Inputs / Outputs are configured as:
Binary inputs – pull up
Binary outputs – Low side
Analog output – current, range 0-20mA
