ID-DCU-MARINE-2.2.2, ©ComAp – June 2015 - 26 -
ID-DCU-MARINE-2.2.2.pdf
AGND
POWER
Inteli IO8/8
Analog output
+ -
AOUT

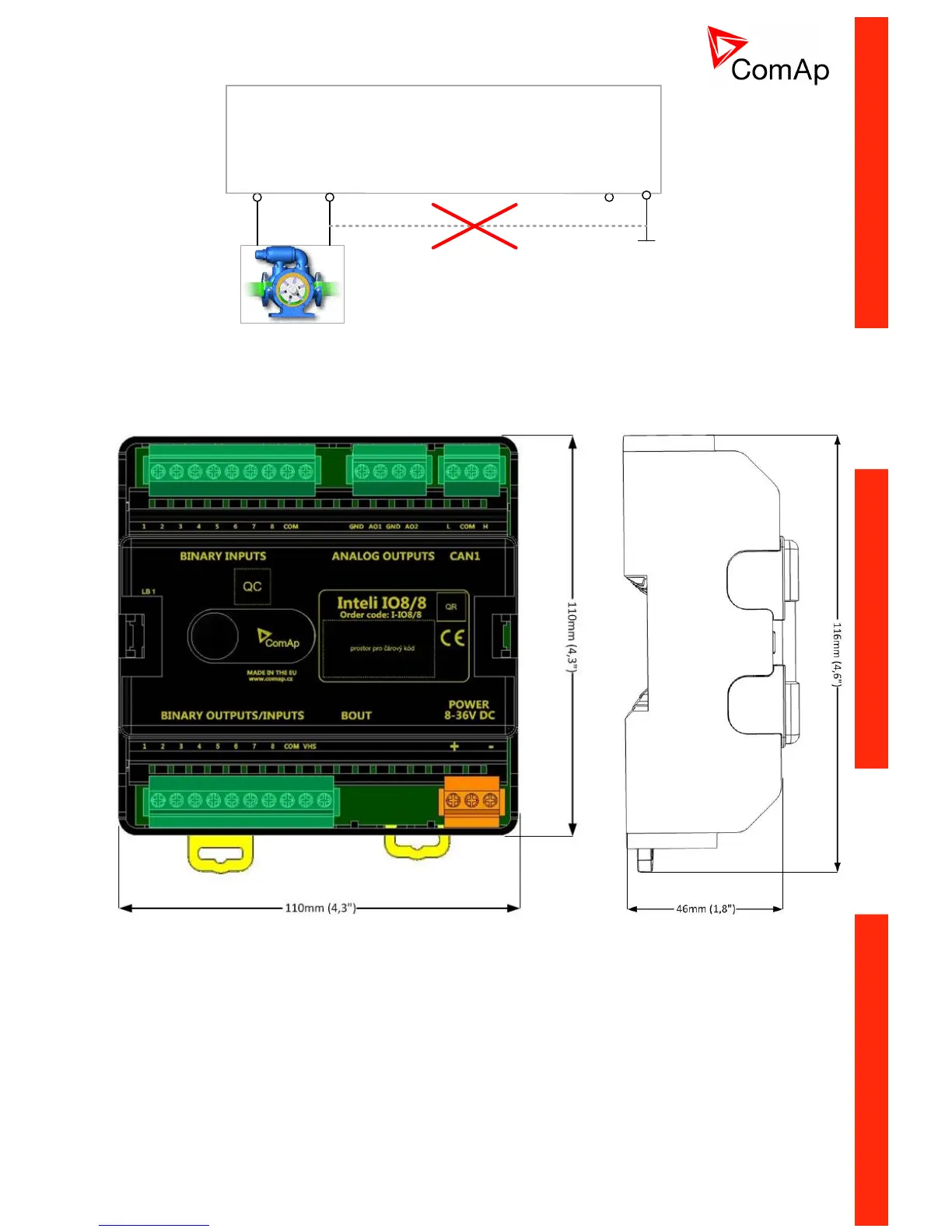

Inteli IO8/8 0-20 mA Analog output
Terminator for analog output has special analog ground (AGND), which must not be connected to the GND.
Limit of analog ground (AGND) is 100mA.
