PRP Mode (PRP only)
The output is closed in controller PRP mode.
AUX Mode (AUX only)
The output is closed in controller AUX mode.
EME Mode (EME and CMB only)
The output is closed in controller EME mode.
HRB Mode (CMB only)
The output is closed in controller HRB mode.
Not In LOC
The output is closed, if LOC (Local) mode is not selected.
In LOC
The output is closed, if LOC (Local) mode is selected.
CPU Ready
CPU indication – output is closed when CPU is ready.

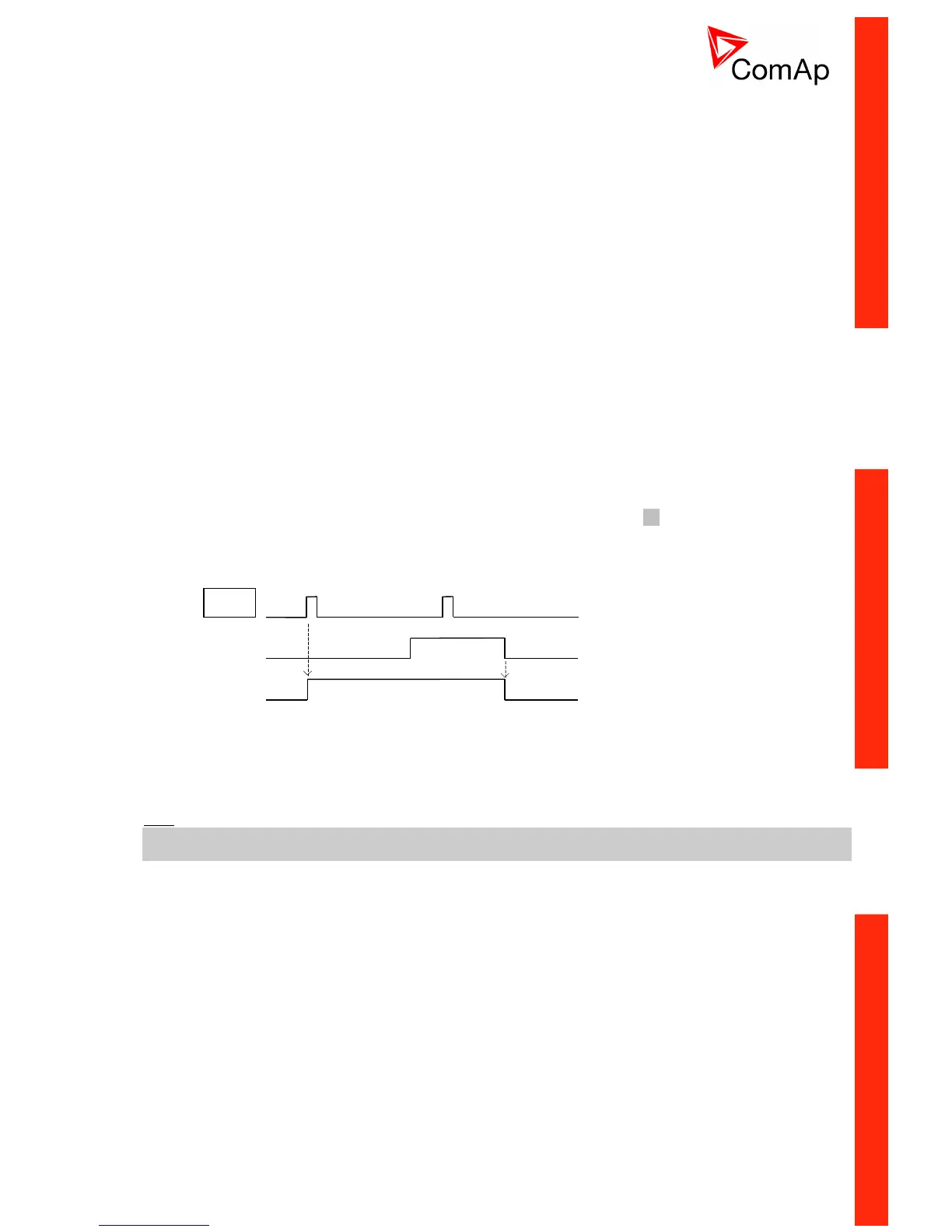

Clutch Connect (PRP only)
Output is closed if Binary input Rem Clutch is active or controller front panel I/0 button is pressed and actual
engine RPM is between: ClutchMinSpeed and ClutchMaxSpeed.
Output stays closed even if the RPM goes out of limits above. Can’t be opened by button when Binary input
Rem Clutch is closed. BI Rem clutch is not active in LOC (Local) mode.
Clutch
button
level ensitive
BINARY INPUT
Rem Clutch
BINARY OUTPUT
Clutch connect
closed
pressed pressed
Idle/Nominal
The output closes during engine start, after Idle time setpoint elapses. The output opens again after Cooling
time is finished. The opposite logic output Nominal/Idle is available as well.
Hint:
Connect Binary output Idle/Nominal to electronic speed governor to switch the speed: opened = IDLE,
closed=RATED.
Starter
Closed output energizes the engine starter.
Stop Solenoid
Output is closed during engine stopping procedure.
Prelubrication
Periodic prelubrication function – see Engine params: PrelubrTime and PrelubrPause.
Prestart
The output closes prior to the engine start (Preheat, Prelubrication) – see Engine params: Prestart time.
