Parameter Description
●
The main menu does not display on the extra screen.
●
If you do not enable the extra screen function, both the VGA port and HDMI port display the
same image.
5.2.8.2 Configuring Zero-Channel Settings
You can view several video sources on one channel on the web end.
Procedure
Step 1 Select
Main Menu
>
DISPLAY
>
Zero-Channel
.

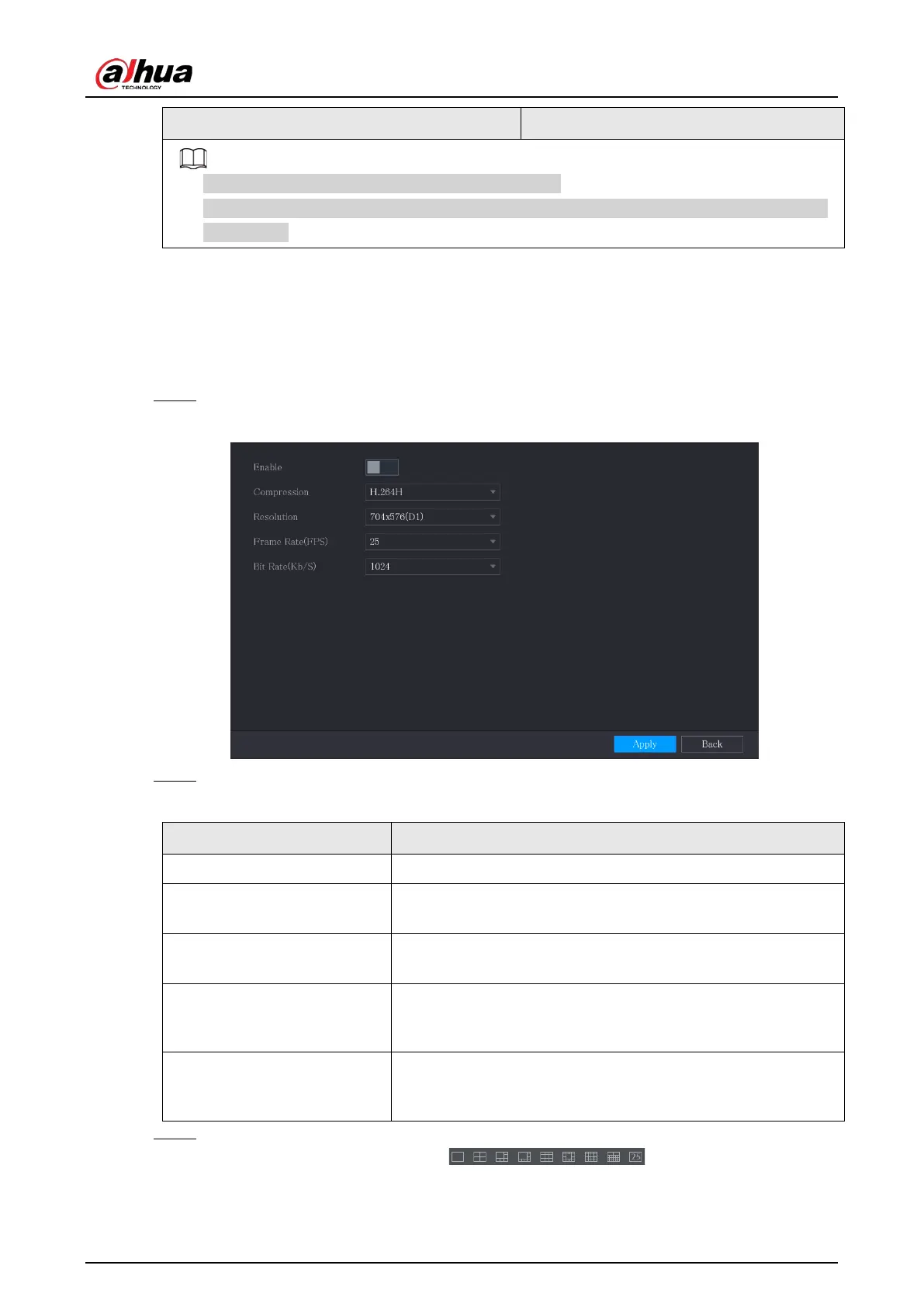

Figure 5-44 Zero-channel
Step 2 Configure the settings for the zero-channel parameters.
Table 5-17 Zero-channel parameters
Parameter Description
Enable Enable zero-channel function.
Compression
In the
Compression
list, select the video compression standard
according to the device capability. The default is H.265.
Resolution
In the
Resolution
list, select the video resolution. The default is
704 × 576 (D1).
Frame Rate (FPS)
Select a value between 1 and 25 for PAL standard, and between
1 and 30 for NTSC standard. The actual arrange is decided and
selected dependent on the Device capability.
Bit Rate (Kb/S)
The default value is 1024Kb/S. The actual arrange is decided
and selected dependent on the Device capability and frame
rate.
Step 3 Click
Apply
to save the settings.
In the live page on the web, click to select one of the multi-
channel modes, and then you can view the local video image.
