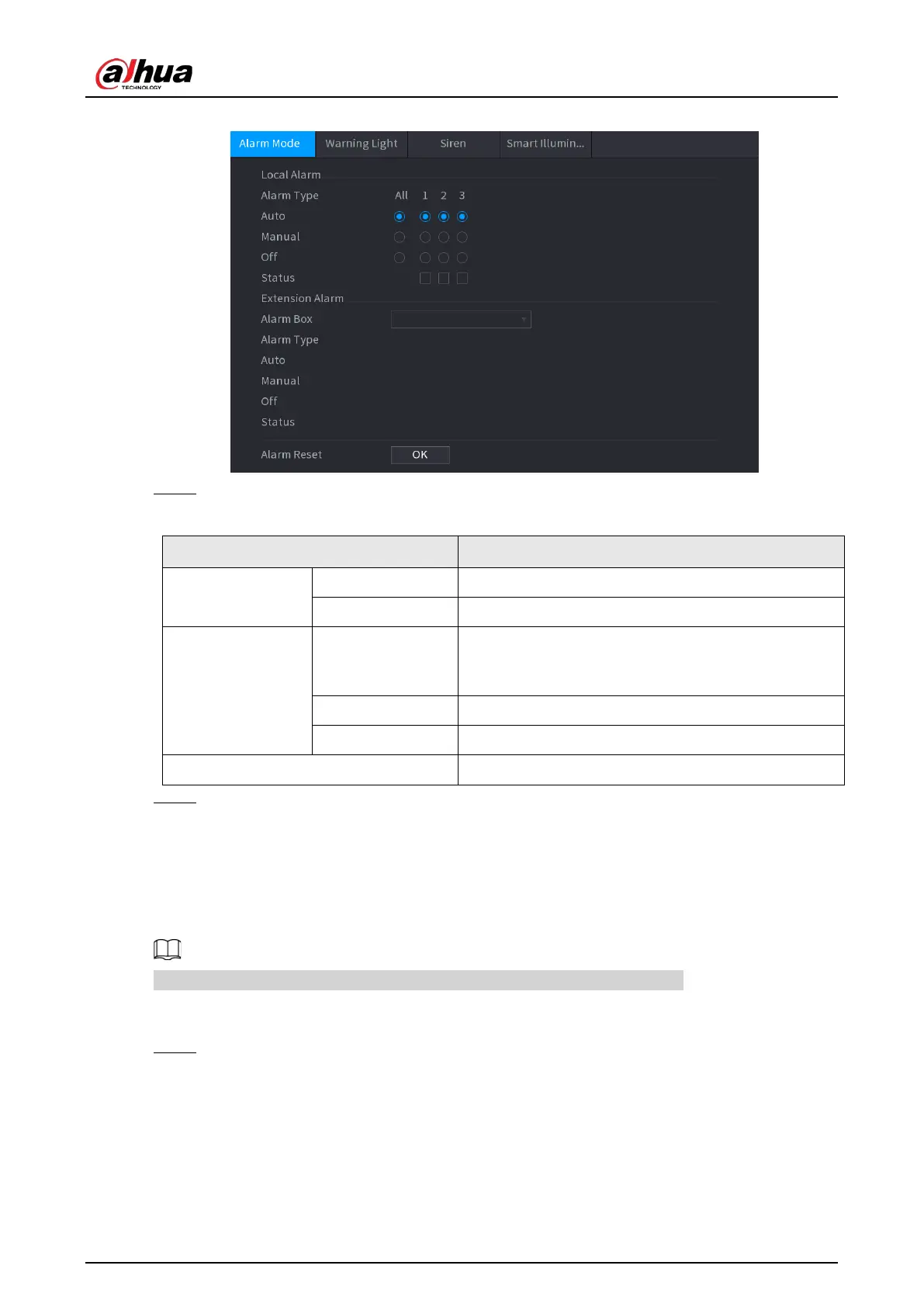

Figure 5-117 Alarm mode
Step 2 Configure the settings for the alarm output.
Table 5-36 Alarm output settings
Parameter Description
Local Alarm
Alarm Type Select alarm type for each alarm output port.
Status Indicates the status of each alarm output port.
Extension Alarm
Alarm Box
Select the alarm box number corresponding to the
address number configured by the DIP switch on the
Alarm Box.
Alarm Type Select the alarm type for each alarm output ports.
Status Indicates the status of each alarm output port.
Alarm Reset
Click
OK
to clear all alarm output status.
Step 3 Click
Apply
to save the settings.
5.10.3.2 Configuring Warning Light
When the motion detection alarm is activated, the system links the camera to generate warning light
alarm.
To use this function, connect at least one warning light camera to your Device.
Procedure
Step 1 Select
Main Menu
>
ALARM
>
Alarm-out Port
>
Warning Light
.
