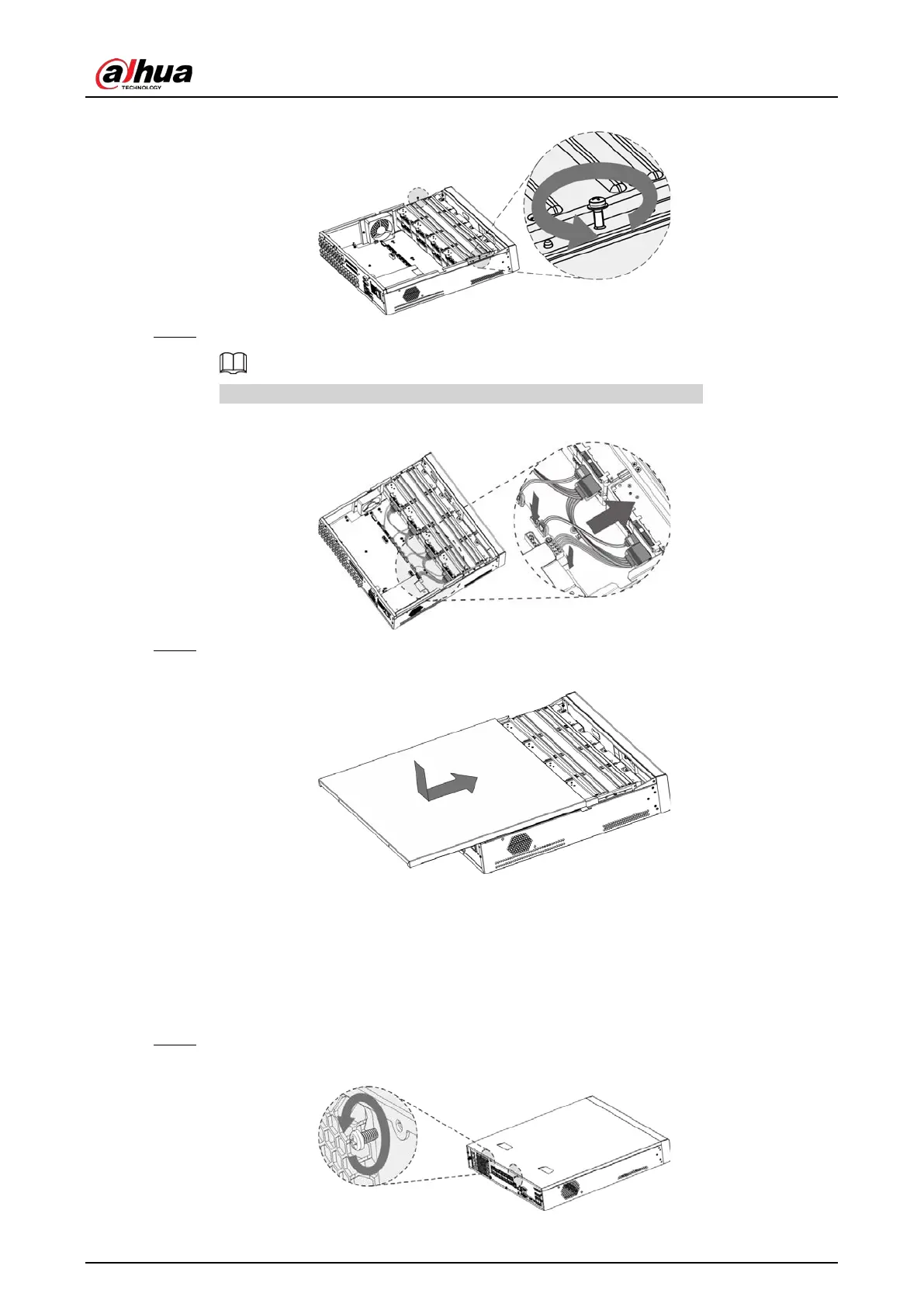

User's Manual
9
Figure 2-13 Put back drive bracket
Step 8 Connect the disks and the DVR with power cable and data cable.
The following figure shows the connection of 4-bay model for example.
Figure 2-14 Connect cables
Step 9 Put the cover back and fasten the screws.
Figure 2-15 Put back cover
2.2.3 DH-XVR54xxL-I2/DH-XVR54xxL-4KL-I2/DH-XVR54xxL-I3/DH-
XVR54xxL-4KL-I3/DH-XVR74xxL-4K-I2/DH-XVR74xxL-4K-I3
Procedure
Step 1 Remove the fixing screws on the rear panel.
Figure 2-16 Remove screws
