XVR54xxL-4KL-I3/DH-XVR74xxL-4K-I2/DH-XVR74xxL-4K-I3

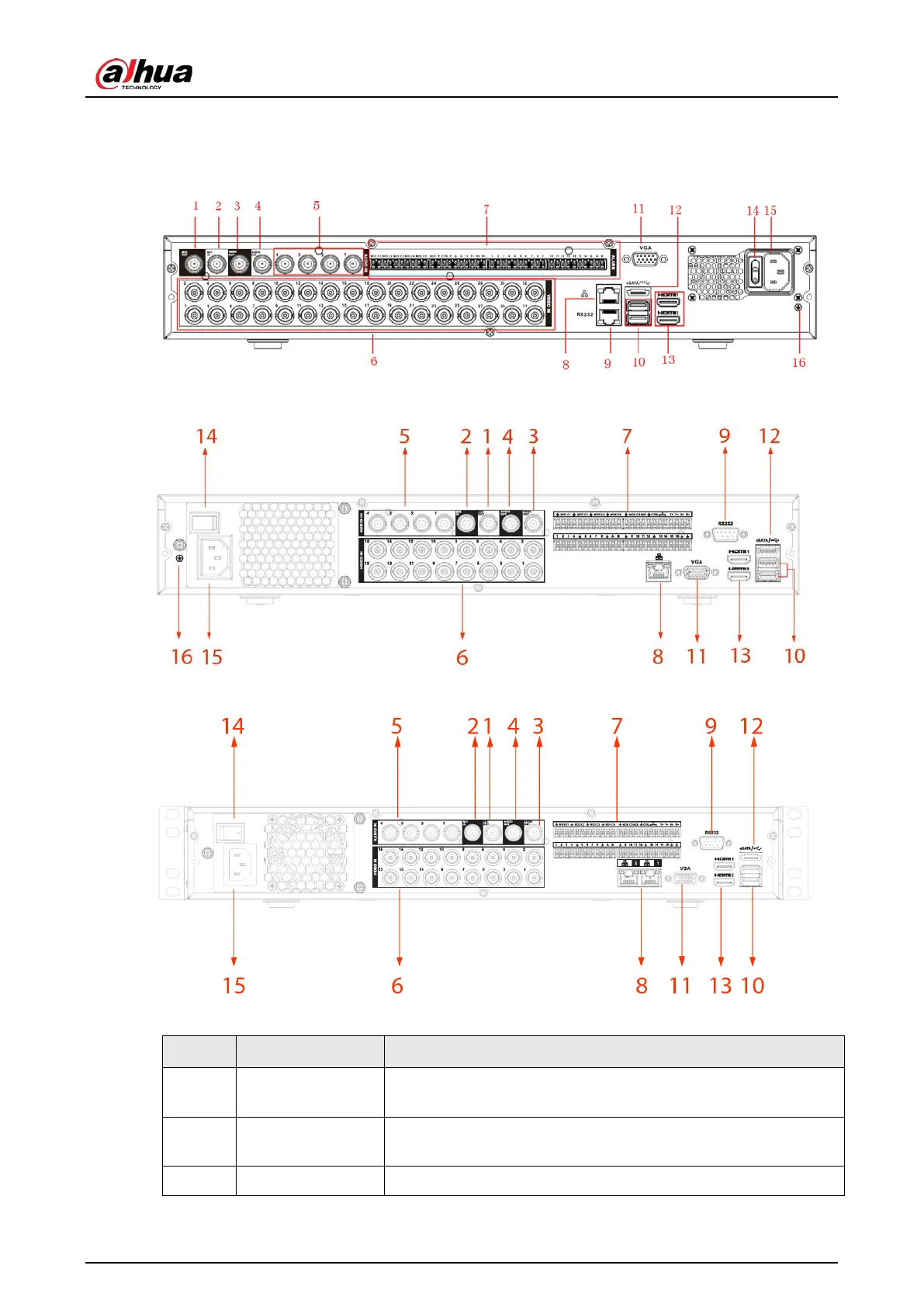

Figure 3-18 Rear panel (1)
Figure 3-19 Rear panel (2)
Figure 3-20 Rear panel (3)
Table 3-17 Rear panel description
No. Port Name Function
1
Audio output port
(MIC OUT)
Two-way talk output port which outputs the analog audio signal
to the devices such as the sound box.
2
Audio input port
(MIC IN)
Two-way talk input port which receives the analog audio signal
output from the devices such as microphone, pickup.
3 Video output port Connect to video output devices such as TV.
