User's Manual
23

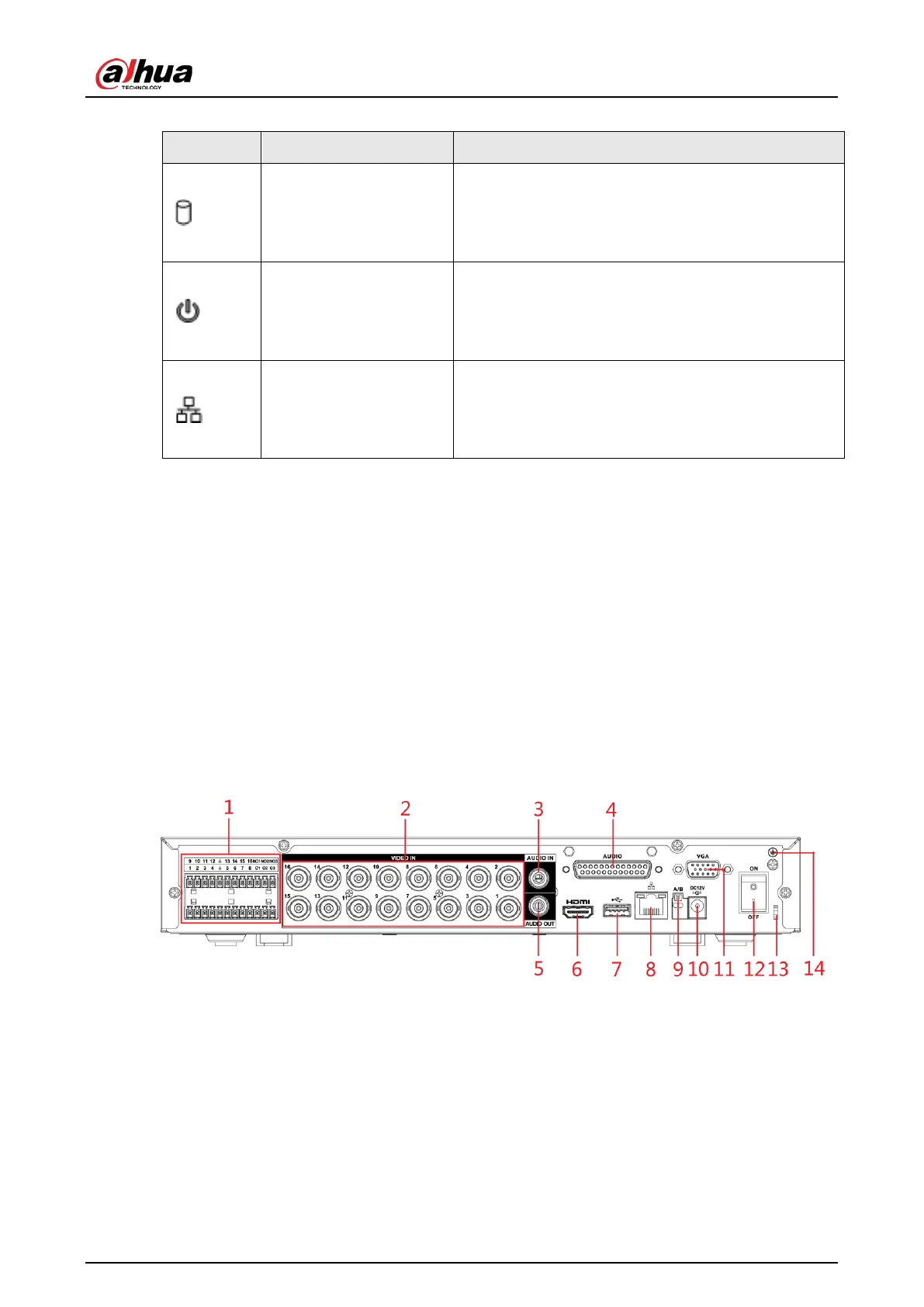

Table 3-10 Front panel description
Icon Name Function
HDD status indicator
The indicator is off when the HDD is running
normally.
The indicator glows blue when the HDD is in
malfunction.
Power status indicator
The indicator is off when the power is connected
abnormally.
The indicator glows blue when the power is
connected normally.
Network status indicator
The indicator is off when the network connection
is correct.
The indicator glows blue when the network
connection is abnormal.
3.2 Rear Panel
3.2.1 DH-XVR51xxH-I/DH-XVR51xxH-I2/DH-XVR51xxH-I3/DH-
XVR51xxH-4KL-I2/DH-XVR51xxH-4KL-I3/DH-XVR51xxHE-I2/DH-
XVR51xxHE-I3/DH-XVR51xxHE-4KL-I2/DH-XVR51xxHE-4KL-I3/DH-
XVR71xxH-4K-I2/DH-XVR71xxH-4K-I3/DH-XVR71xxHE-4K-I2/DH-
XVR71xxHE-4K-I3/DH-XVR71xxHE-4KL-I
Figure 3-12 Rear panel
