User's Manual
35
No. Port Name Function
13 HDMI port
High definition audio and video signal output port. It outputs
the same video source as VGA. It supports 4K resolution output
and supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output
stops.
14 Power switch Turns on/off the Device.
15 Power input port Inputs power.
16 GND Ground.
3.2.8 DH-XVR1Bxx-I/DH-XVR1BxxH-I

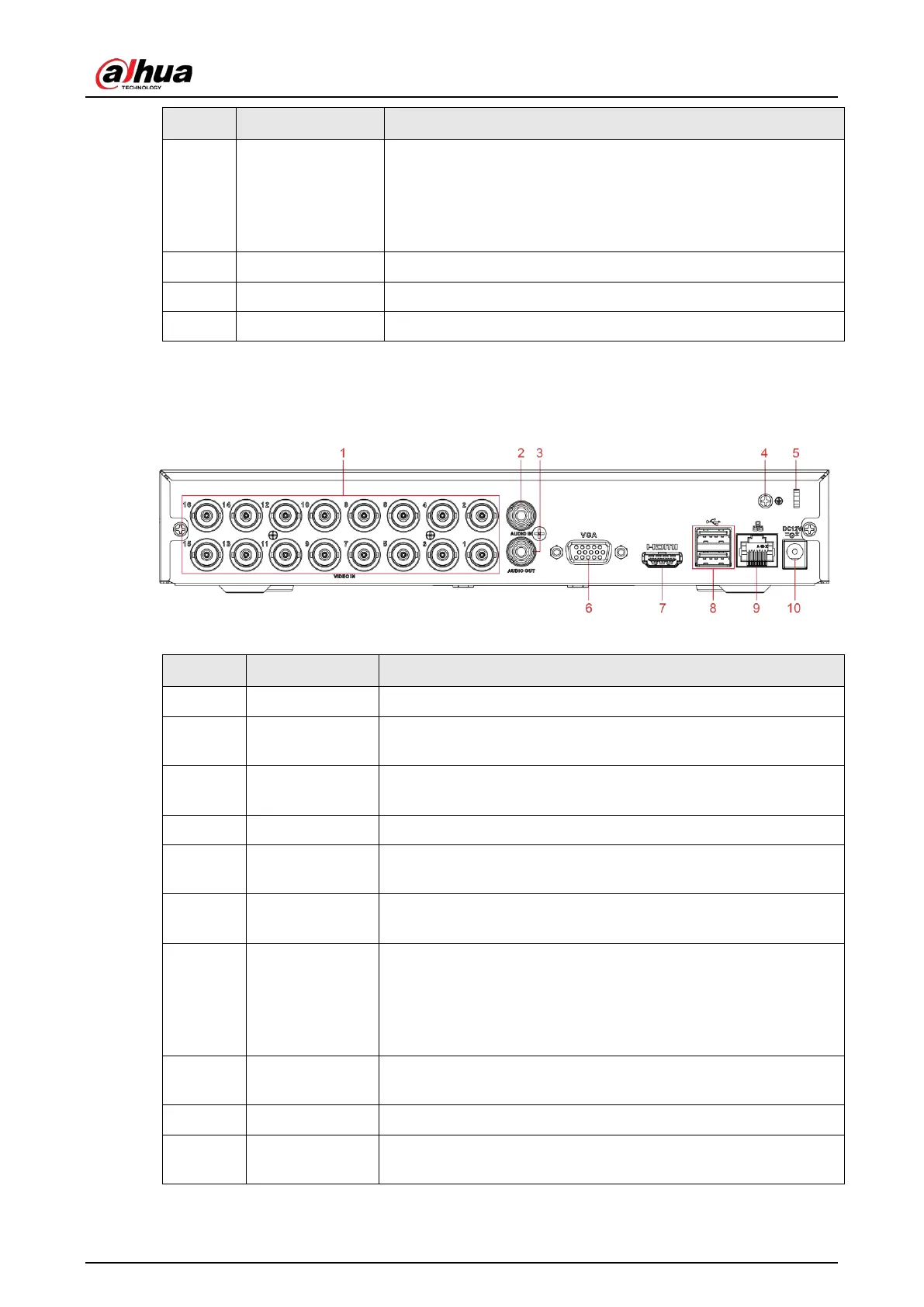

Figure 3-21 Rear panel
Table 3-18 Rear panel description
No. Port Name Function
1 Video input port Connects to analog camera to input video signal.
2
Audio input
port
Receives audio signal output from the devices such as
microphone.
3
Audio output
port
Outputs audio signal to the devices such as the sound box.
4 GND Ground.
5
Power cable
fastener
Use clamp to secure the power cable on the DVR in case there is
any loss.
6
VGA video
output
Outputs analog video signal. It can connect to the monitor to
view analog video.
7 HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output
stops.
8 USB port
Connects to external devices such as USB storage device,
keyboard and mouse.
9 Network port Connects to Ethernet port.
10
Power input
port
Inputs 12 VDC power.
