196
Fi
gur
e 5
-

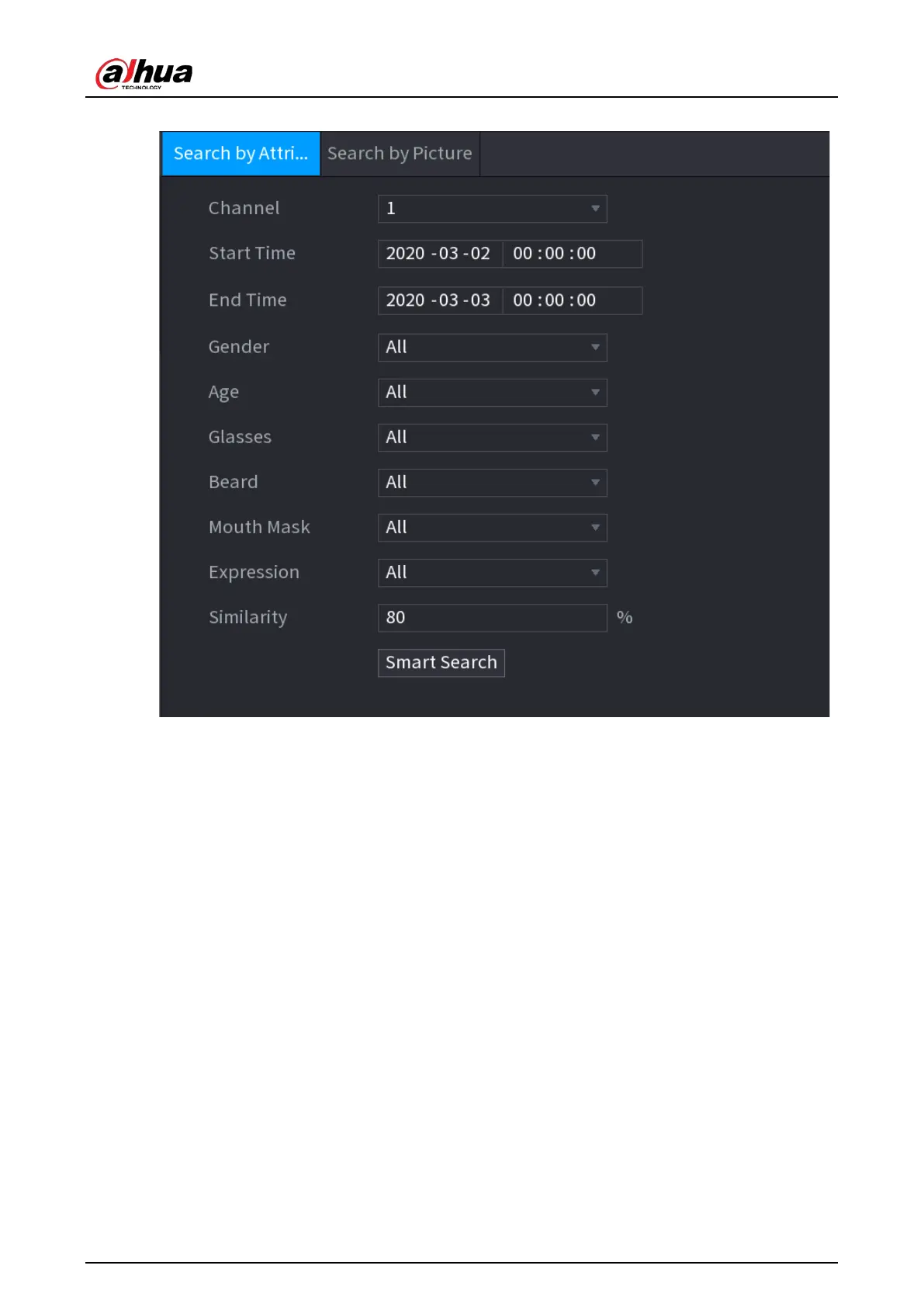

153 Search by
attributes
2.
Select the chan
nel and set t
h
e parame
ters such as
start time, end tim
e, gender, age, glasses,
beard
, mask, and similarity accord
ing to your require
ment.
3.
Click
Smart Search
.
