Vertical Clearance
A minimum vertical clearance of 3.8 cm (1.5”) MUST be provided (reference Fig-
ure 9). This will facilitate ease of scanning, and allow adequate space above the
scanner bonnet for removal and replacement of the All Weighs™ Platter (the L-
shaped platter).

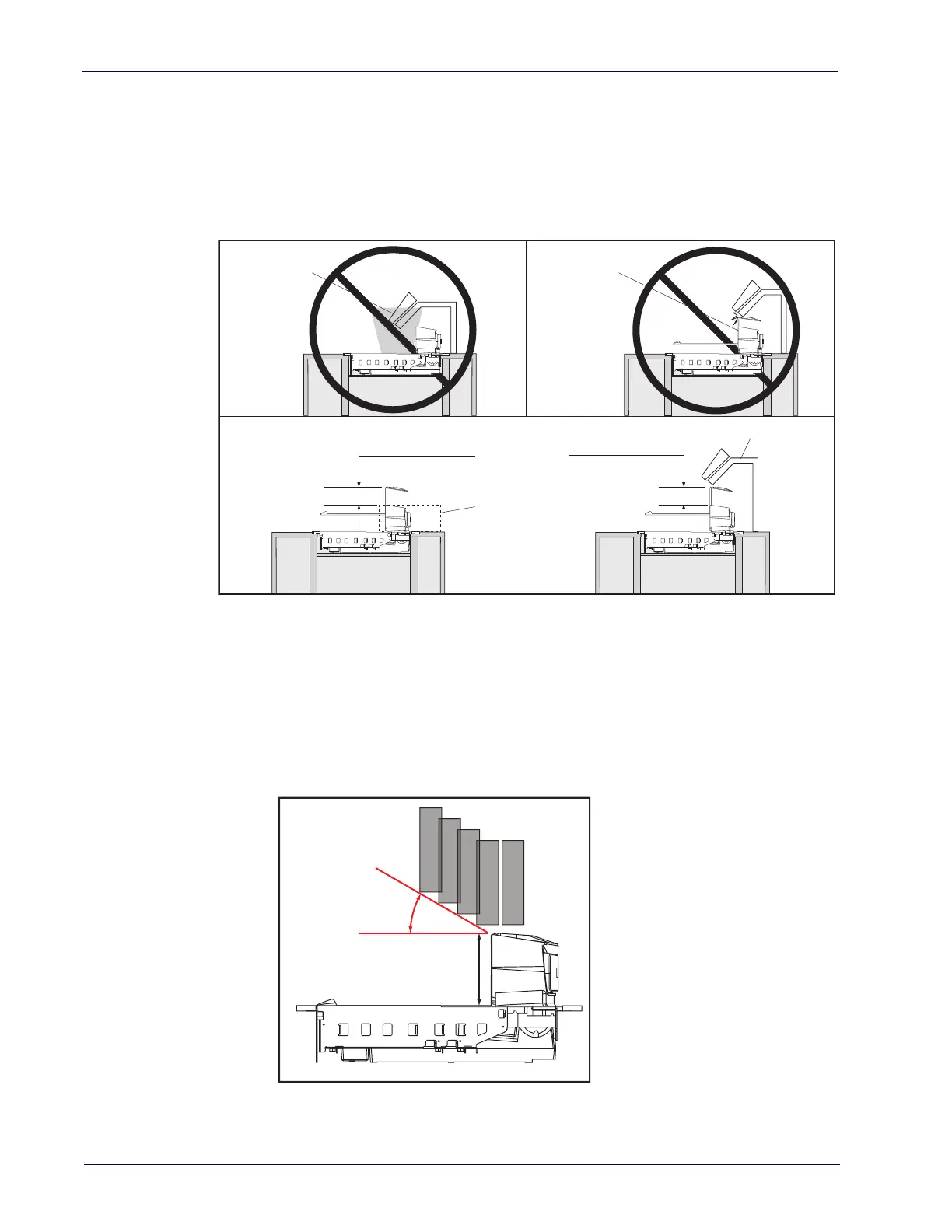

Figure 9. Vertical Clearance
Display Clearance
Clearance must be allowed so that a POS display will not interfere with the
scanner’s read zones. POS display placement must not encroach the scan zone
formed by the horizontal and vertical windows. The bottom of the display must
be no lower than the 30° line shown, which projects from the front edge of the
bonnet.
DO NOT
Obstruct
Scan Zone
DO NOT
Obstruct
L-Platter
Removal
Allow a minimum
clearance of
1.5" (3.8cm)
(Enclosure)
(Keyboard Mount)
D
I
S
P
L
A
Y
~30° minimum
128.8mm
Display Clearance

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
