Dräger Infinity Delta User Manual

8-12 DELTA/DELTA XL/KAPPA VF8
8 ECG
AND HEART RATE
Standard 12-Lead Format
1. For standard 12-lead monitoring, place chest electrodes in positions V1
through V6 as shown in the following illustrations.
2. Select
Standard on the ECG menu as described on page 8.
Electrode placement may differ slightly depending on whether you are monitoring
ECG or ST, as shown in the following illustrations. The signal morphology for ST
Monitoring and Rest ECG configurations may also differ.

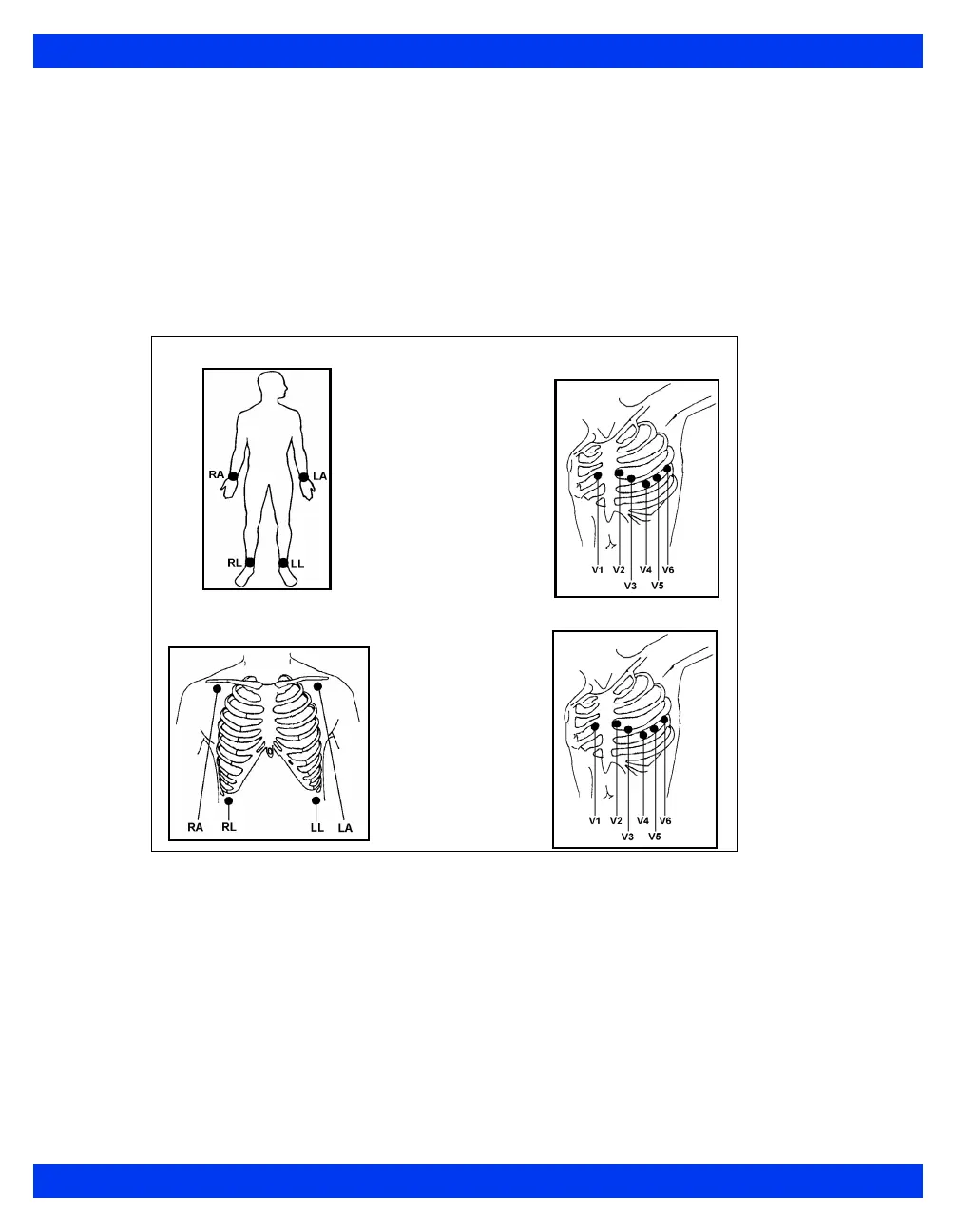

Twelve-Lead Standard Format
Rest ECG
ST Analysis

Dräger Infinity Delta Specifications

General

Display Size	10.4 inch
Resolution	800 x 600 pixels
Battery Type	Lithium-ion
Parameters Monitored	ECG, SpO2, NIBP, Invasive Blood Pressure, Temperature, CO2, Cardiac Output
ECG	Yes
SpO2	Yes
NIBP	Yes
Invasive Blood Pressure	Yes
Temperature	Yes
CO2	Yes
Cardiac Output	Yes
Power Supply	100 to 240 V AC, 50/60 Hz
Connectivity	WLAN
Operating Temperature	0 to 40 °C
Storage Temperature	-20 to 60 °C
Humidity	15 to 95 % relative humidity, non-condensing
Alarms	Audible and visual alarms
