2.10 Home screen
The Home screen appears when you turn on the analyzer by pressing the power key.

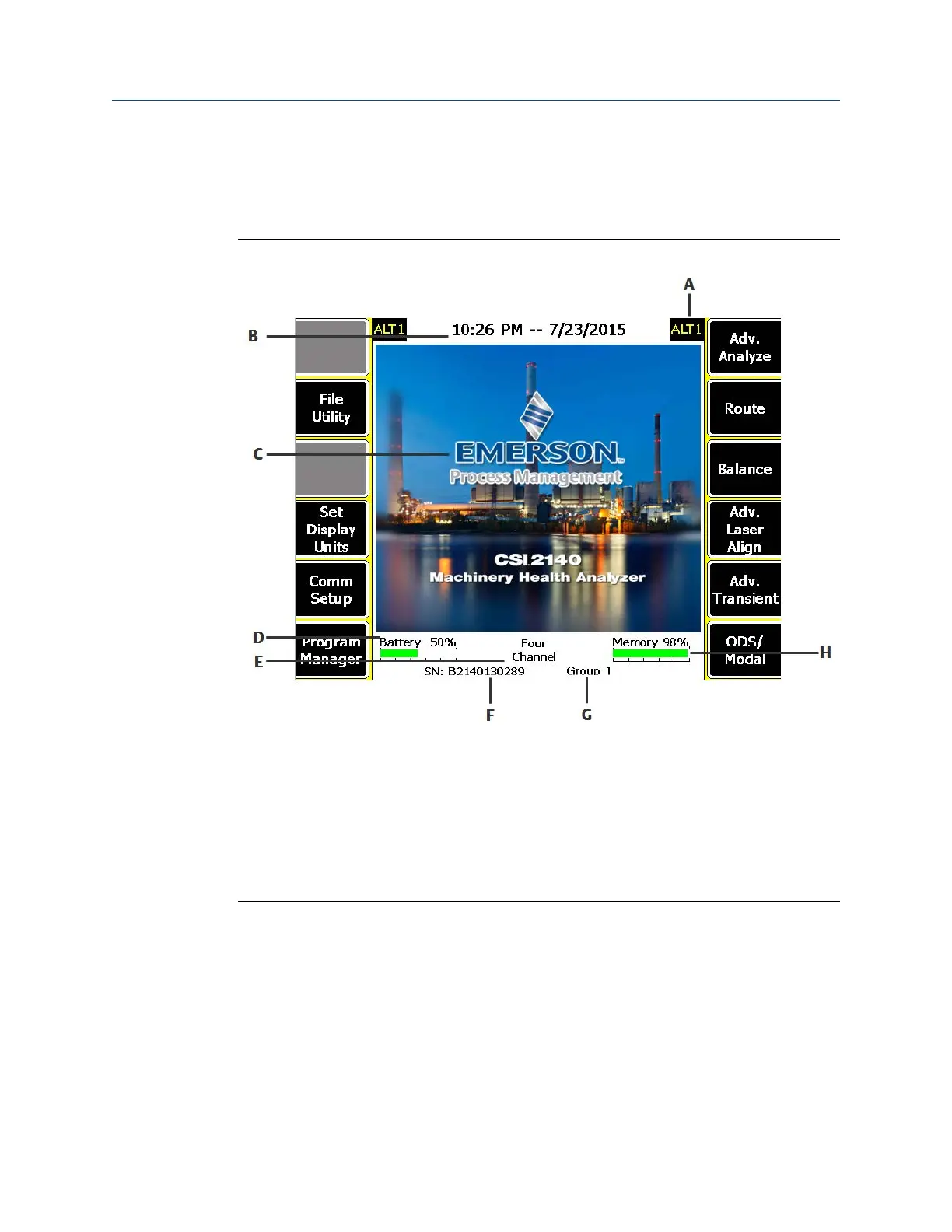

Home screenFigure 2-9:
A. An alternate screen (ALT) includes additional options.
B. Current time and date.
C. Default splash screen.
D. Remaining battery pack charge.
E. Number of supported channels for the analyzer.
F. Serial number.
G. Group number for updating multiple analyzers at one site.
H. Available internal memory.
Home screen programs and settings
The Home screen has two alternate screens that display programs and settings. ALT1 or
ALT2 appears at the top of the screen and the function keys are outlined in yellow. To
switch ALT screens, press the ALT key or the ALT text on the touchscreen.
Introduction to the analyzer
20 MHM-97432 Rev 7
