Operator's Guide 97
The Clean Way To Re-Attach a Ribbon Guide
1. Lay the ribbon cartridge face down on a table, as shown below.
2. Make sure the ribbon is taut. If not, turn the ribbon feed wheel in the direction of the
arrow until the ribbon is taut.
3. Determine the proper position of the ribbon guide.
The ribbon guides are labeled
Left
,
Middle
, and
Right
. The guides are physically
different and therefore not interchangeable.
4. Hold a pencil under the ribbon, as shown below, and slip on the ribbon guide so that
the handle on the ribbon guide is at the top of the cartridge. The ribbon should be
positioned under the ribbon guide posts.

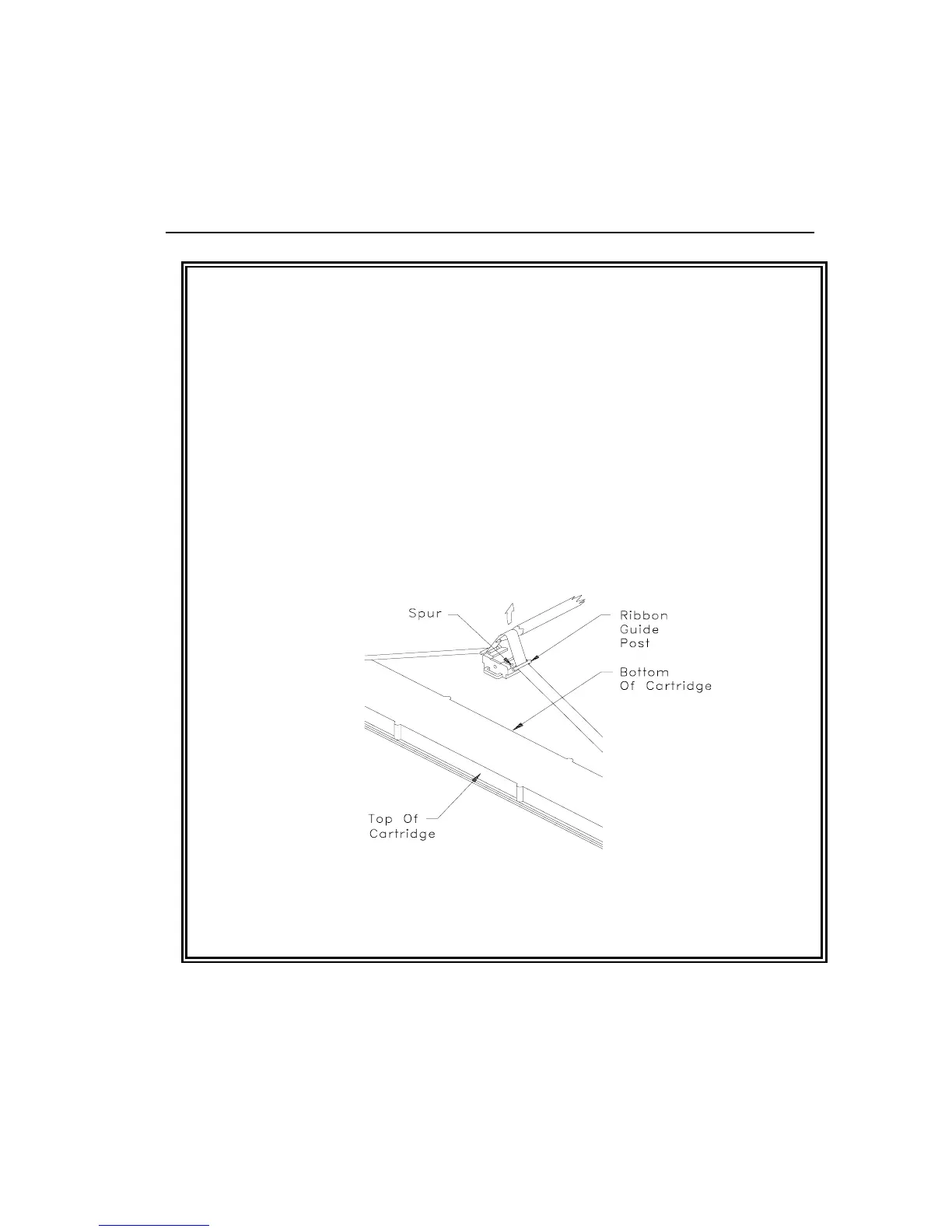

5. Remove the pencil and use it to slip the ribbon under the spurs on the guide.
The Clean Way To Re-Attach a Ribbon Guide
JB0-AQ
