Operator's Guide B-9

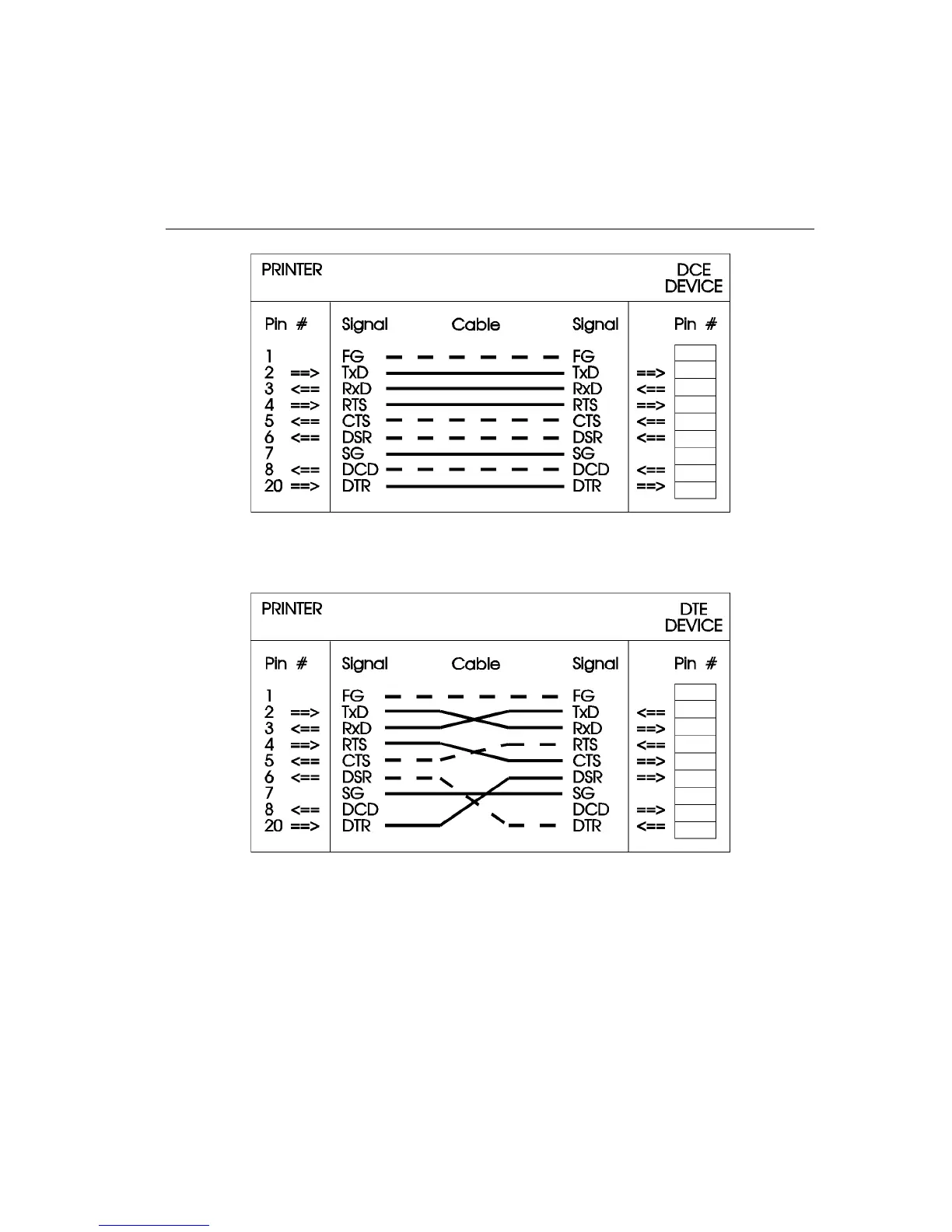

Printer To DCE Device Wiring Diagram
AB0-AM
Printer To DTE Device Wiring Diagram
AB0-AN
To determine which wiring diagram to use, you must determine if the
device is DTE or DCE. Locate a description of the target device's
Transmitted Data signal and determine if it is an input or output. If
Transmitted Data is an output, the device is DTE. Use the DTE wiring
diagram. If Transmitted Data is an input, the device is DCE. Use the
DCE wiring diagram.
