22 Operations
To load paper, follow these steps:
1. Open operator access door.
2. If you plan on loading the same type of paper, note the setting of the
printhead gap adjustment lever and then move printhead gap
adjustment lever toward you (away from paper), as far as possible.
3. If necessary, reposition tractors to
accommodate a change in paper width, as
follows:
a. Keep the left tractor locked at the
extreme left end of its travel.

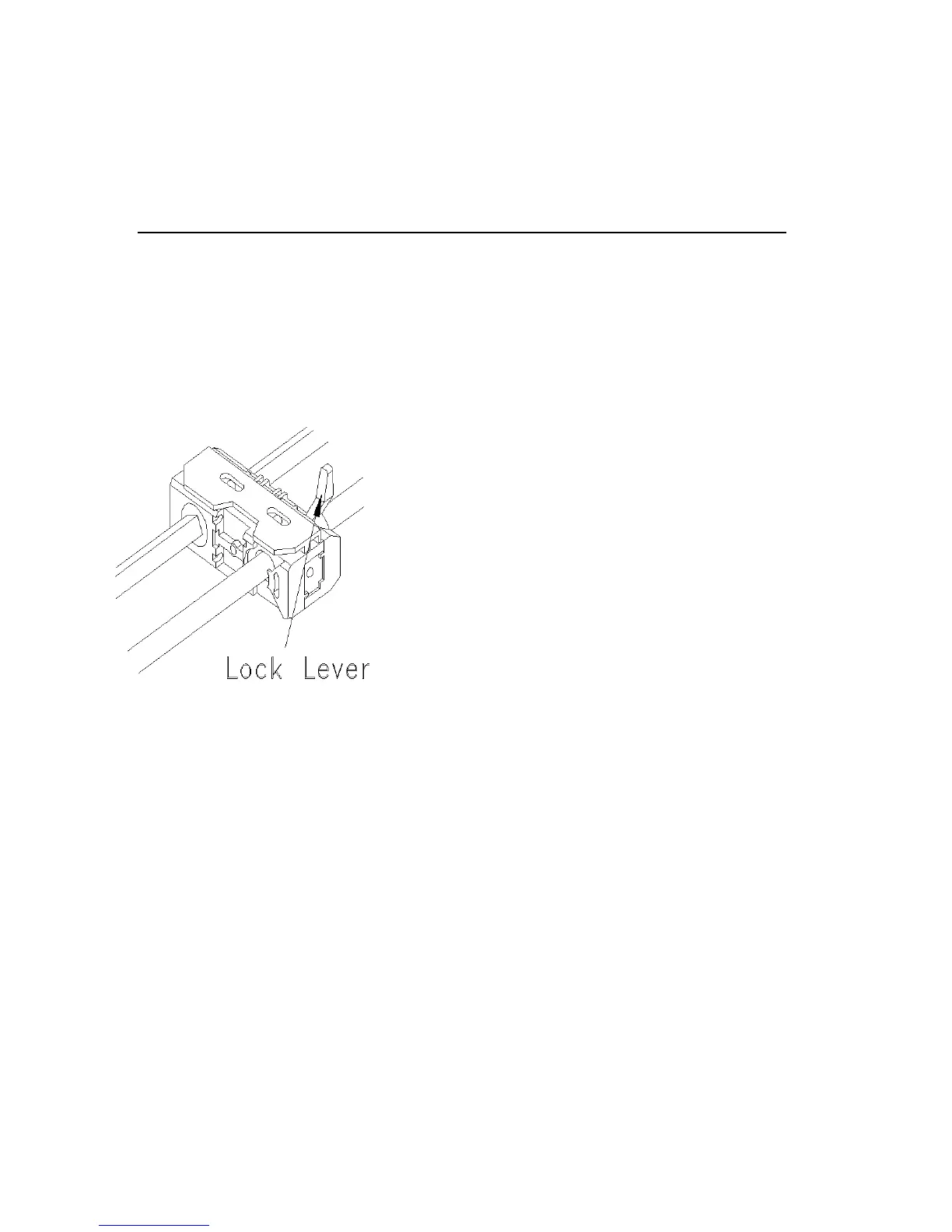

b. Lift lock lever on right tractor.
c. Slide right tractor along its shafts and
position it, in relationship to the left t
ractor, to approximately match the width
of the paper.
d. For now, leave the right tractor
unlocked.
Right Tractor
JBO-N
Note
: The paper out sensor is located near the left edge of the paper
path below the platen. Normally, to prevent a false paper out
alarm, keep the left tractor at the extreme left end of the platen.
Move only the right tractor to accommodate changes in paper
width.
4. Open hinged paper retainers on tractors.
