Paper roll Customize commands GS ( E
Ver. 10.01 p. 618

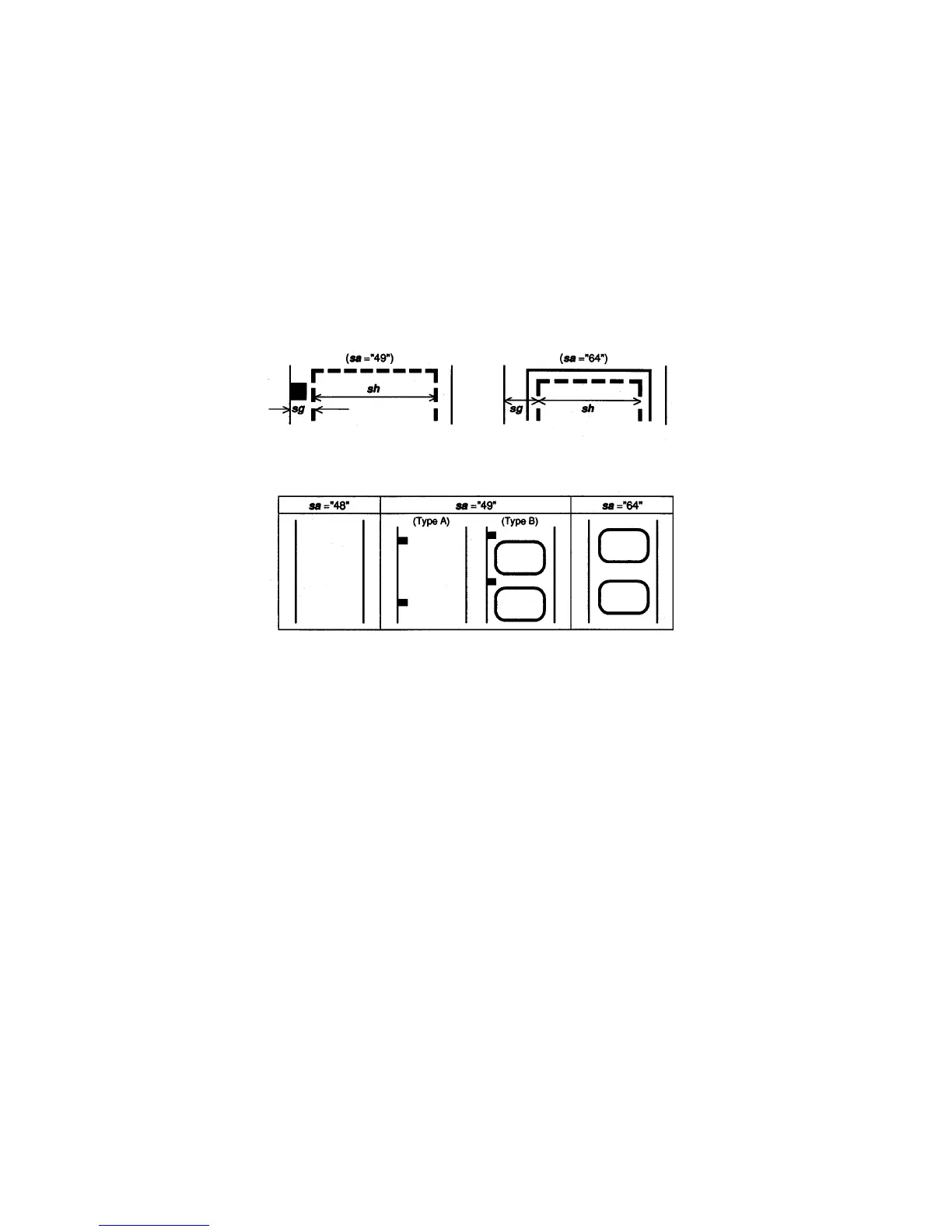

• The setting unit is 0.1 mm. The relationship between each setting value of the layout of the vertical
direction and paper layout is as follows.
[Notes]
■ This function works in user setting mode.
■ The origin of layout can be specified by sa as follows.
■ When Type B paper specified by sa = 49 is used or sa = 64, notice the setting of print area and cutting
position as follows.
• Specify sd, sf, sg, sh so that the print area is on a label area. Don’t specify print area on the liner
(backing paper).
• Specify se so that the cutting position is on the liner (backing paper). Don’t specify the cutting position
on a label area.
■ Specify sa ~ sh are converted to character codes corresponding to decimal data, then transmitted from
the MSB. (Example: When specifying 120, data is “120” (in decimal: 49, 50, 48; it is 3 byte).)
■ When you don’t change the origin of layout that is specified, sa can be omitted. However, “;“cannot be
omitted even if the parameter is omitted.
Example ( sa is omitted): GS(E pL pH fn ; sb ; sc ; sd ; se ; sf ; sg ; sh ;
