Operator Panel

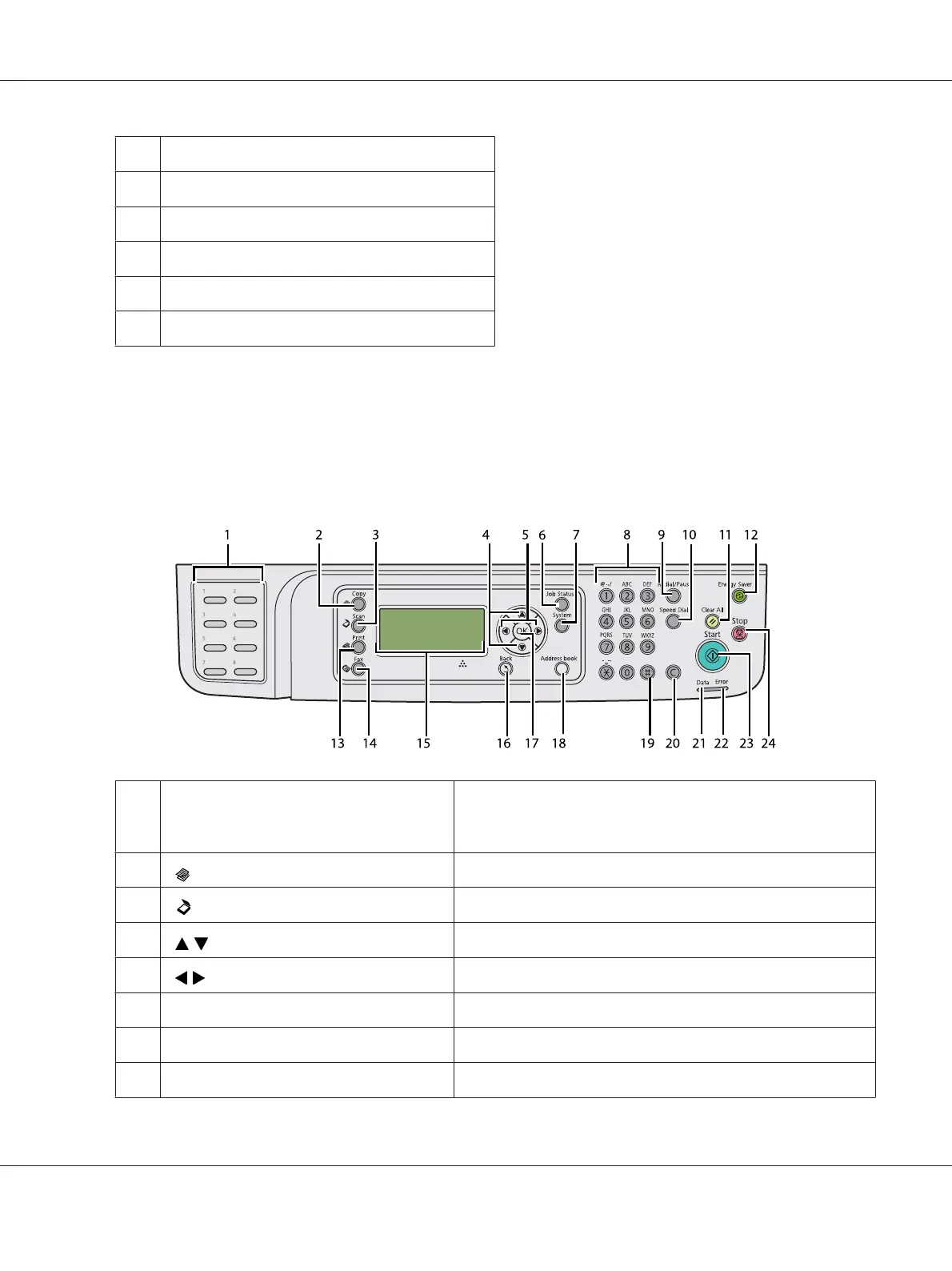

The operator panel has a 4-line by 28-character liquid crystal display (LCD), light-emitting diodes
(LED), control buttons, one-touch buttons, and numeric keypad, which allow you to control the
printer.
1 One-touch buttons Calls up the stored fax number registered in the Phone Book. The
first eight fax numbers in the Phone Book are assigned to the
buttons in row order, starting from the top left corner.
2
(Copy) button/LED
Moves to the top level of the Copy menu.
3
(Scan) button/LED
Moves to the top level of the Scan menu.
4
buttons Moves a cursor or highlight up or down.
5
buttons Moves a cursor or highlight left or right.
6
Job Status button/LED
Moves to the top level of the Job Status menu.
7
System button/LED
Moves to the top level of the System menu.
8 Numeric keypad Enters characters and numbers.
