* USB port
Note:
Do not connect the printer USB cable to the USB connector available on the keyboard.
Network Connection
To connect the printer to an Ethernet network:
1. Ensure that the printer, computer and any other connected devices have been turned off and all
cables have been disconnected.

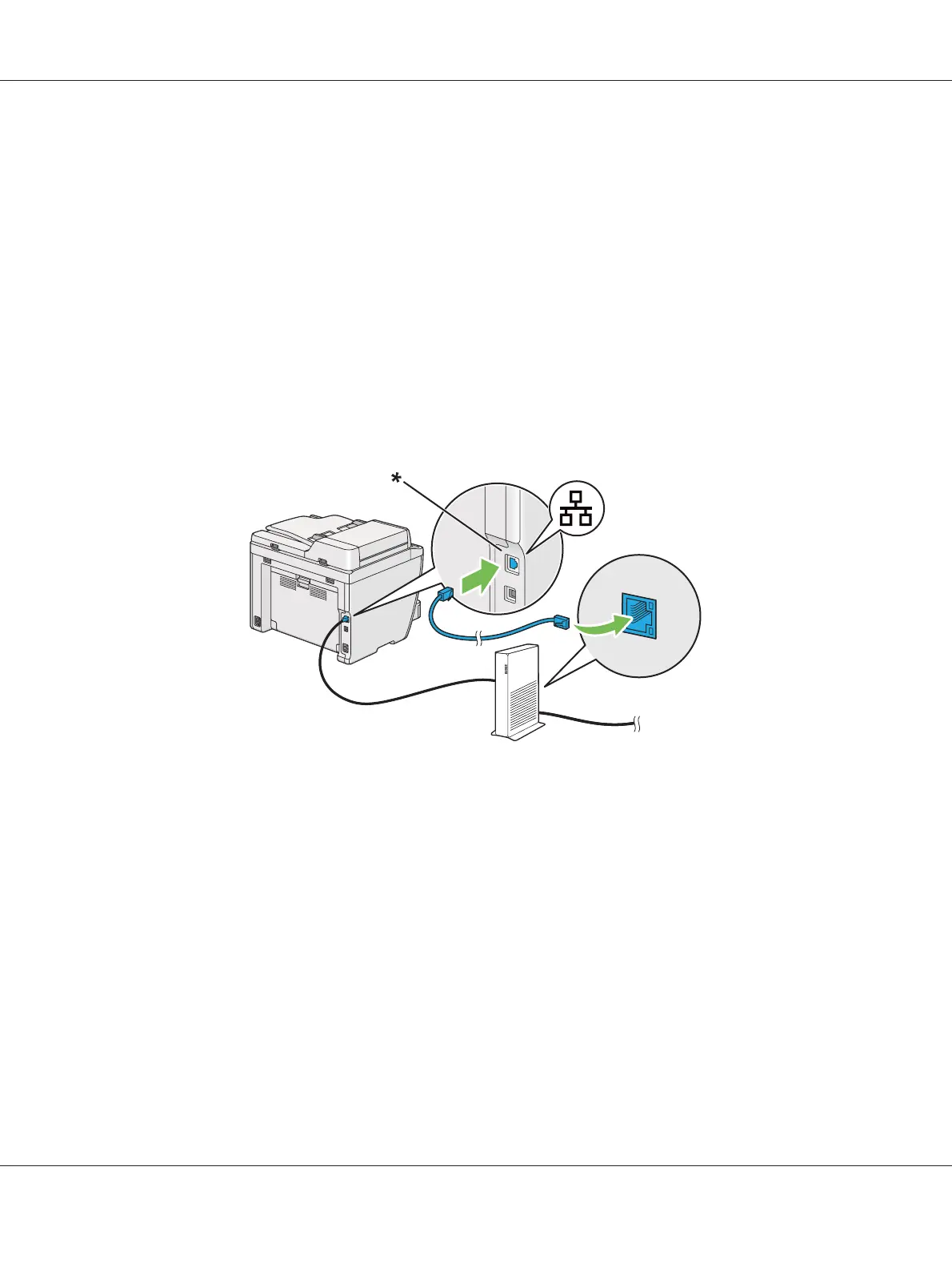

2. Connect one end of an Ethernet cable to the Ethernet port on the rear of the printer, and the other
end to a LAN drop or hub.
* Ethernet port
Note:
Do not connect the Ethernet cable when you intend to use the wireless network feature of the
AL-MX200DWF model.
See Also:
“Configuring Wireless Network Settings (AL-MX200DWF only)” on page 54
AL-MX200 Series User’s Guide
Printer Connection and Software Installation 42
