Note:
For the WPS-PBC operation on the wireless LAN access point, refer to the manual supplied with the
wireless LAN access point.
When the WPS-PBC operation is successful and the printer is rebooted, wireless LAN connection is
completed.
Operator Panel
1. Select Operator Panel, and then click Next.

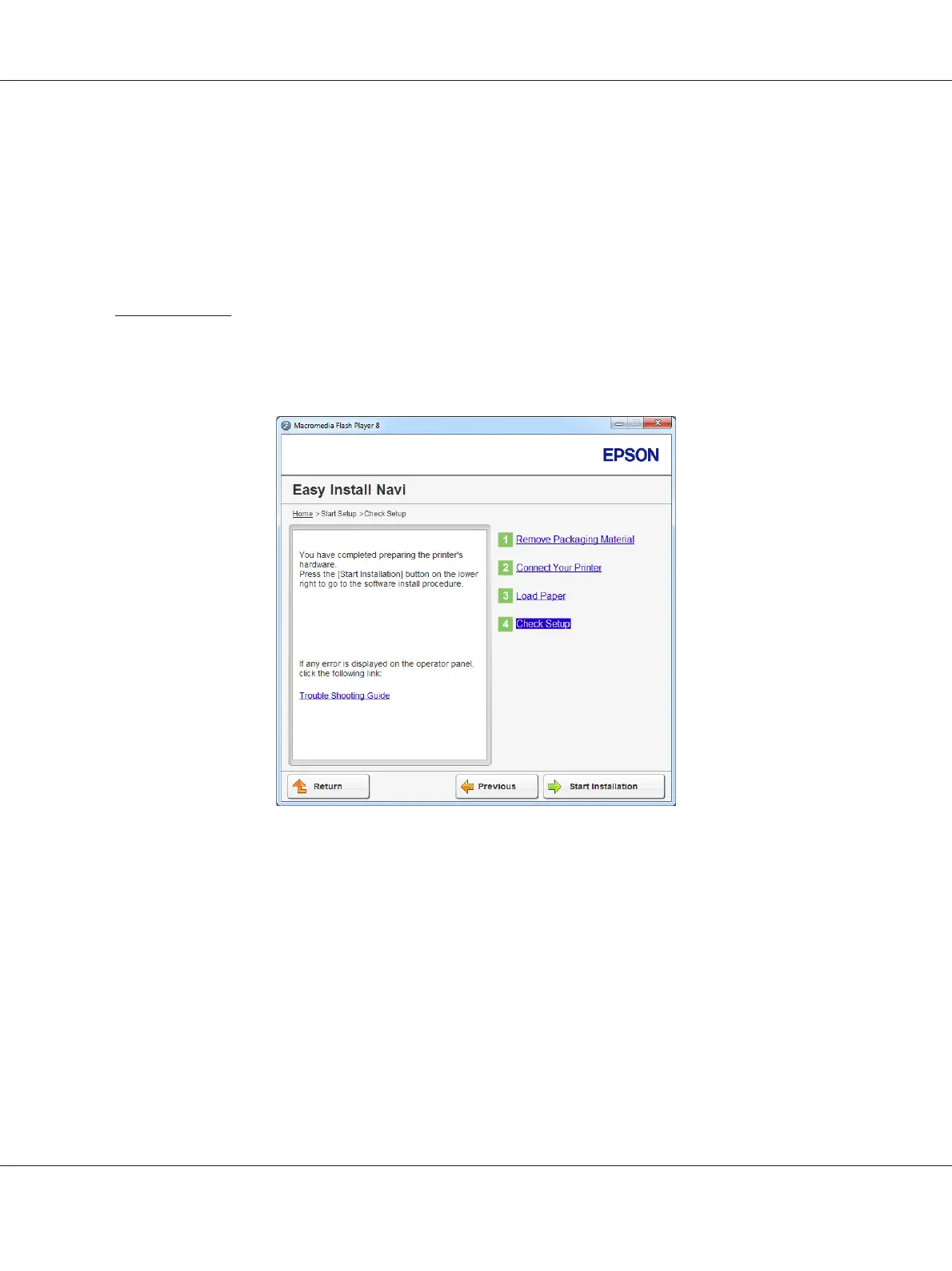

2. Follow the on-screen instructions until the Check Setup screen appears.
3. Confirm there are no errors displayed on the LCD panel, and then click Start Installation.
If you see any errors, click Trouble Shooting Guide and follow the instruction.
4. Check if the printer to be installed is listed in the Select Printer screen, and then click Next.
Note:
If the printer to be installed is not listed in the Select Printer screen, try either of the following steps:
❏ Click Refresh to update the information.
AL-MX200 Series User’s Guide
Printer Connection and Software Installation 73
