Operating manual
CNC 8070
EDISIMU MODE (EDITING AND SIMULATION)
8.
(REF: 1505)
·147·
Editing window
8.3.4 Syntax errors when editing

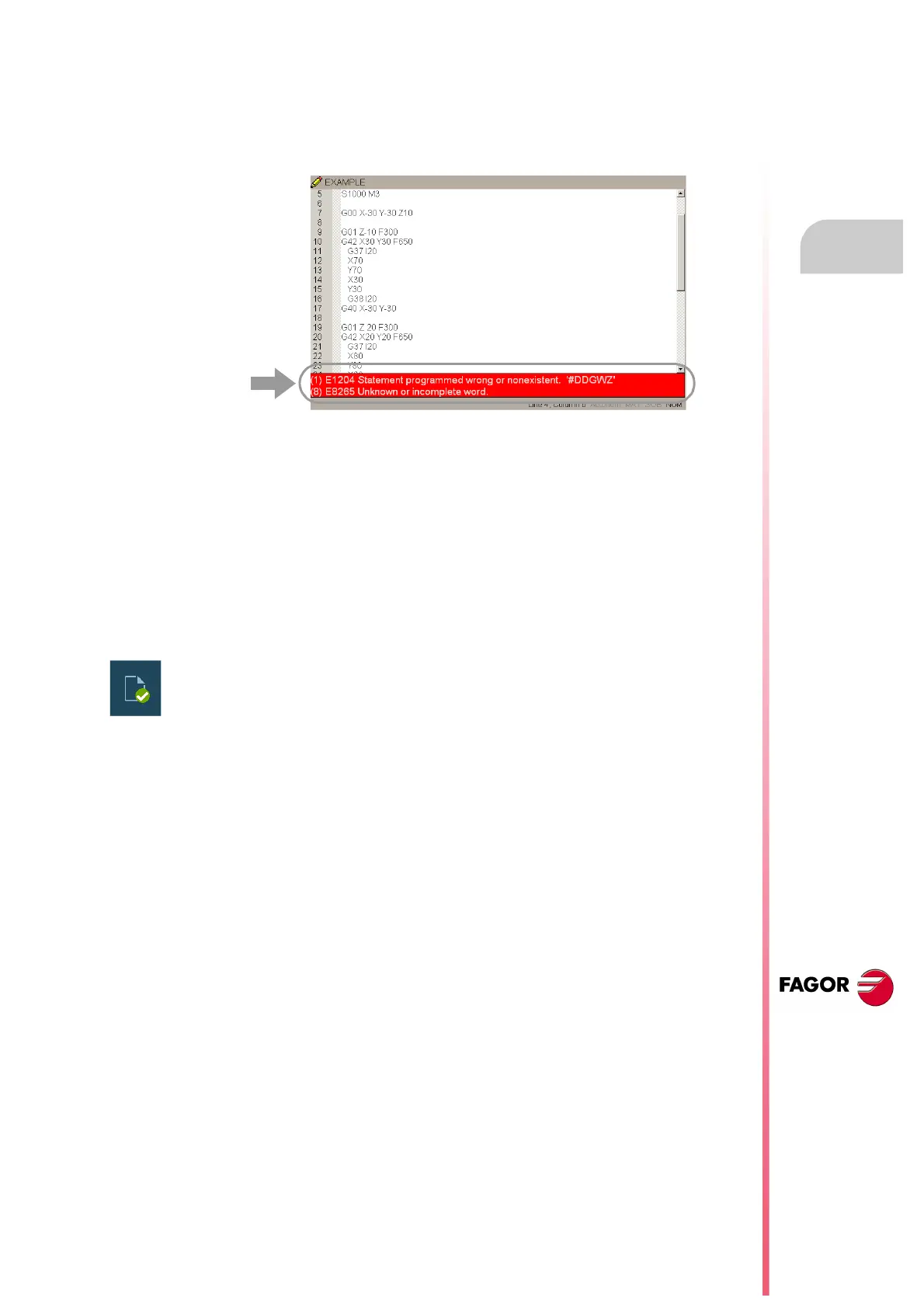

The syntax errors occurred while editing or after running a syntax check will be displayed
at the bottom of editing window. To toggle the cursor between the editor and the error listing,
press the key combination [CTRL]+[TAB].
Errors while editing
While editing, each block is analyzed when entered. If a syntax error is detected in the block,
the error window will display the following information:
• Position of the error in the block.
• Error number and explanatory text.
Errors after a syntax check
• Location and name of the program being checked.
• Line number and position of the error within the block.
• Explanation of the error.
Moving the cursor through the errors of the window, the editor will highlight the block
containing the selected error. Use the [][] keys to move the cursor. Press [ENTER] to
select the block containing the error or press [ESC] to close the error window.
If the text is not display in full, place the focus in this area and move the text using the
[][][][] keys.
The syntax check is executed from the icon menu. The syntax check is not available for
programs written in 8055 CNC language.
The syntax check checks all the blocks of the program. If a syntax error is detected, the error
window will show the following information.
