Operating manual
CNC 8070
MANUAL (JOG) MODE
5.
(REF: 1505)
·99·
Interface description.
5.1.1 Softkey menus.
Horizontal softkey menu.
Vertical softkey menu.
The vertical softkey menu always shows all the options associated with this operating mode
regardless of the active screen.

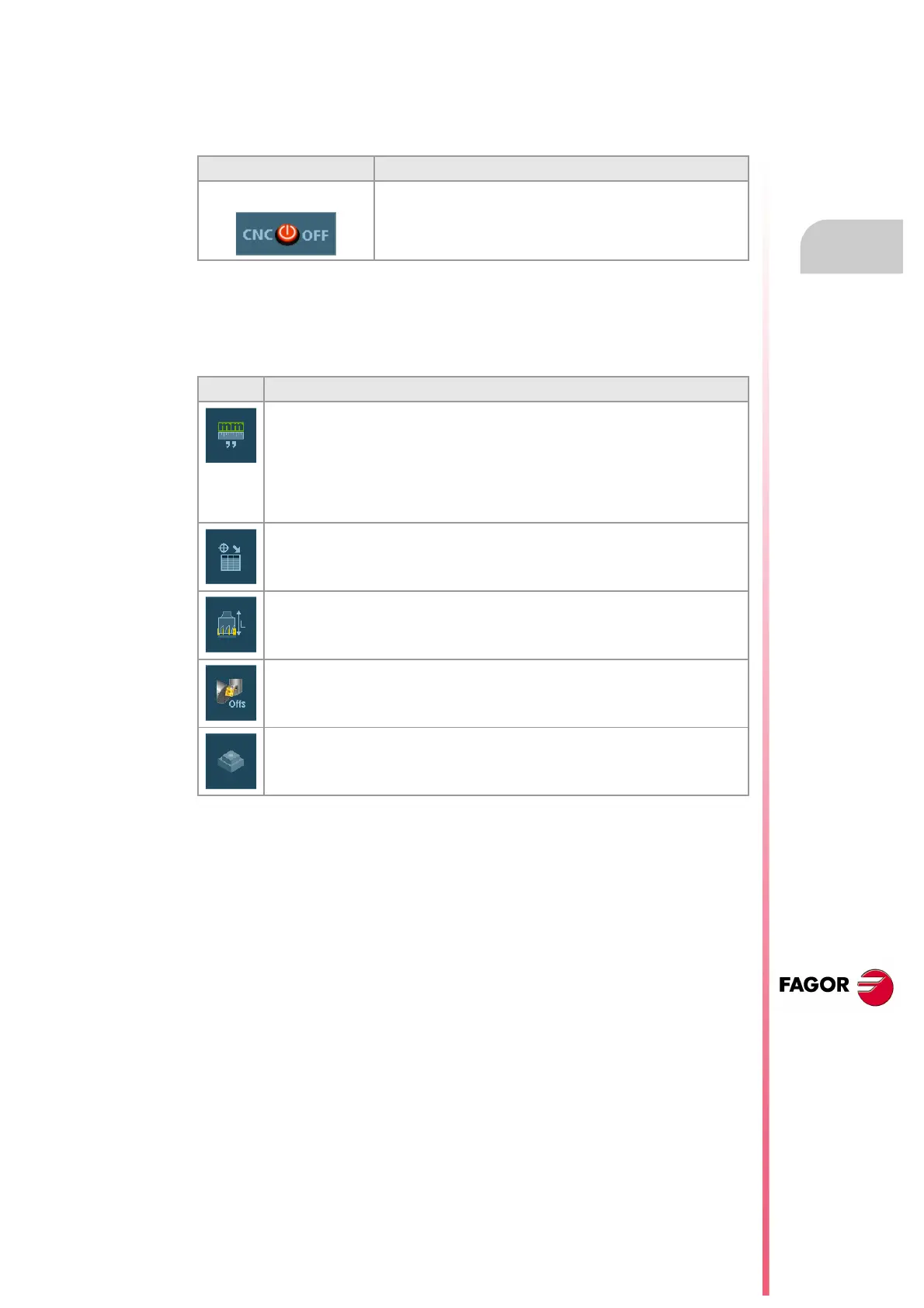

Softkey. Description.
Turn the CNC off. Start the CNC shut-down sequence, it is the same as pressing the
key combination [ALT][F4].
Softkey. Description.
Change the units for data display. The softkey highlights the units currently selected
(millimeters or inches).
The selected units are only valid for displaying data. For programming, the CNC assumes
the units defined with the active function G70 or G71, or, when not programmed, the units
set by the machine manufacturer (INCHES parameter).
The CNC will display this softkey or not depending on how machine parameter
MMINCHSOFTKEY has been set.
Setting and activating the zero offsets and the fixture offsets. This softkey shows the zero
offsets and the fixture offsets of the system, either to store the active zero offset or to
activate a new zero offset.
Tool calibration (·M· model).
See chapter "6 Manual (jog) mode. Tool calibration".
Tool calibration (·T· model).
See chapter "6 Manual (jog) mode. Tool calibration".
Part centering (·M· model).
