·262·
Operating manual
CNC 8070
16.
TOOL AND MAGAZINE TABLE
(REF: 1505)
Tool table (simple mode).

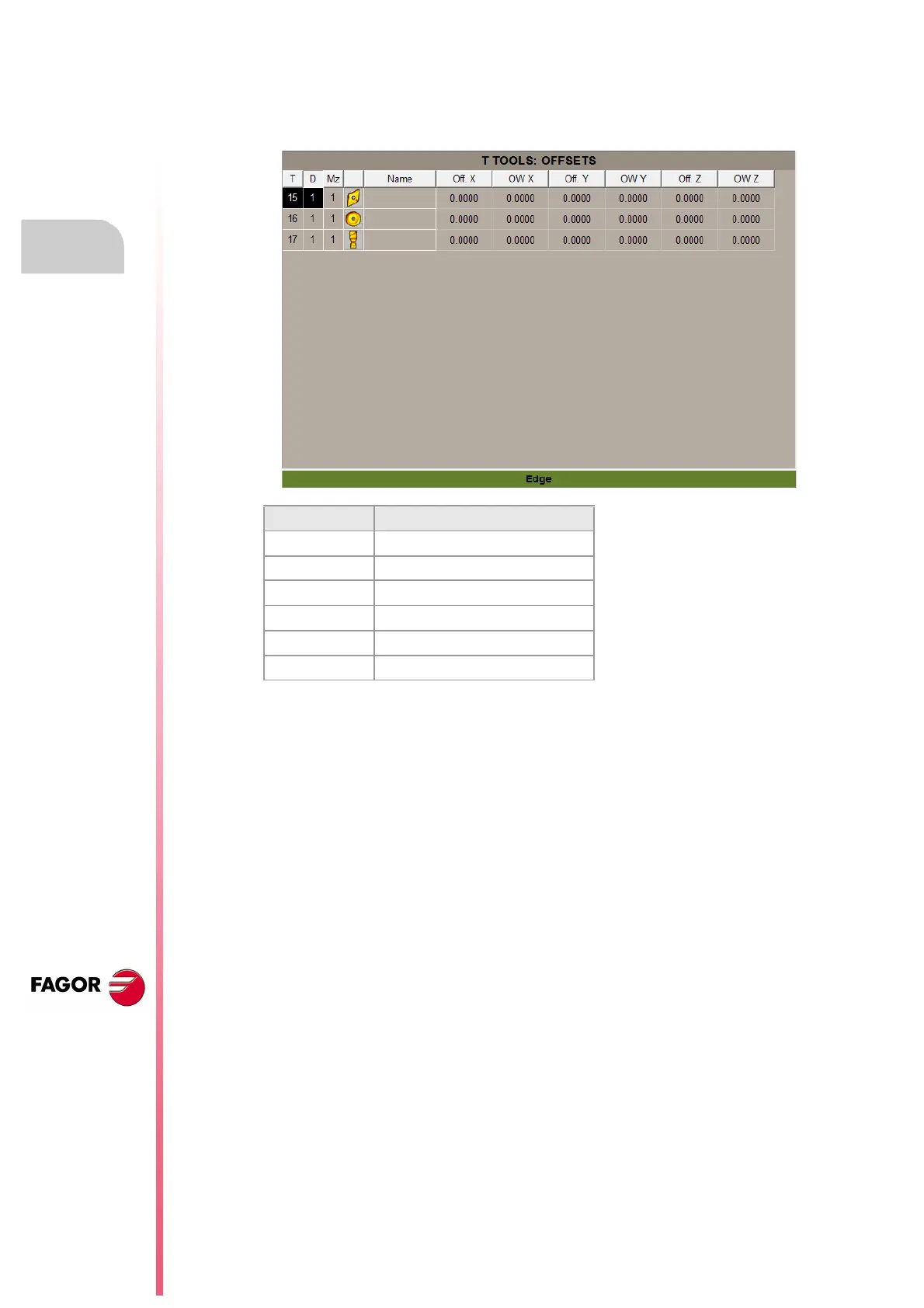

16.4.5 Data of the M/T tools (offset page - screen-).
The offset page (screen) shows the offsets of the tools. The table highlights in color the active
tool.
16.4.6 Editing the tool table.
With the simple tool table, it is only possible to edit the data of the tools. Neither tools nor
offsets can be added or removed, uploaded or downloaded or change tools from one
magazine to another.
The table allows editing all the fields except the following. These fields may be modified at
the full tool table.
• Tool number.
• Tool offset number.
• Magazine it belongs to.
• Type of tool offset.
• Location code (shape).
• Tool-holder orientation.
• Turning direction.
Column. Description.
T Tool number.
D Tool offset number.
Mz Magazine it belongs to.
Name Tool name.
Off. X Tool offset on each axis.
OW. X Tool offset wear on each axis.
