·50·
Operating manual
CNC 8070
3.
HOW TO OPERATE THE CNC
(REF: 1505)

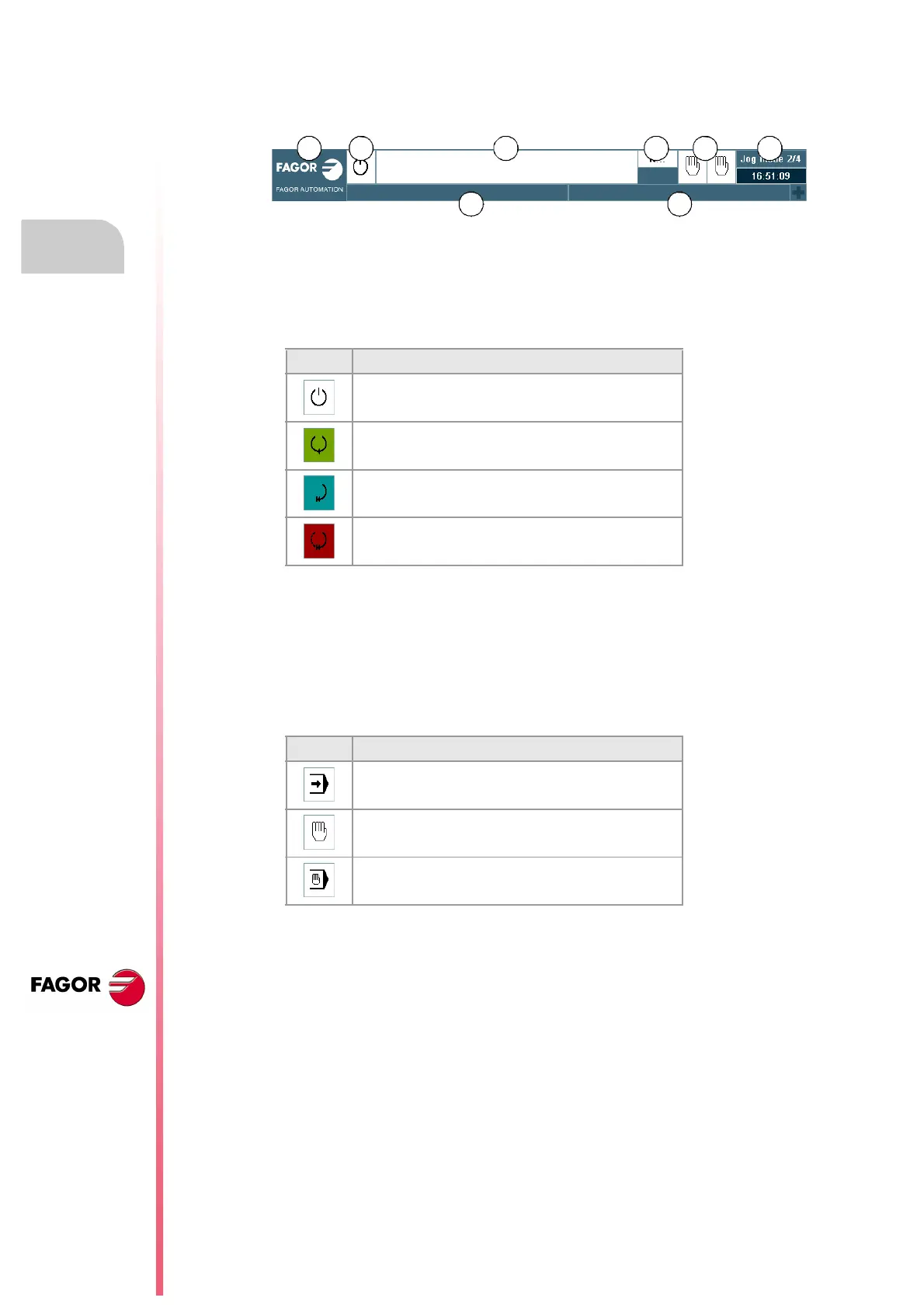

Detailed description of the CNC status bar
3.2 Detailed description of the CNC status bar
The status bar of the CNC (top of the screen) shows the following information.
A Icon (customizable) identifying the manufacturer.
Clicking with the mouse or pressing on a touch-screen, the CNC shows the task window
(same as pressing the keystroke sequence [CTRL]+[A]) that shows the list of the work
modes and hotkeys of the CNC.
B Icon showing the status of the program of the active channel: The background color will
be different depending on the status of the program.
C Program selected in the active channel for execution.
D Number of the block in execution. The bottom icon indicates that the Single-block
execution mode is active.
E Information about the channels. Number of channels available and active channel
(indicated in blue). Icons show which operating mode each channel is in. The channel
synchronization window may be expanded using the [ALT]+[S] keys.
Clicking with the mouse or pressing a touch-screen to access the desired channel, doing
it on the icon of the active channel, has the same effect as the [ESC] key.
F Active work mode (automatic, manual, etc.) selected screen number and total number
of screens available. System clock.
By clicking on the active work mode, the CNC shows the list of available pages and which
ones are visible.
G Active CNC message.
For each channel, it shows the last message activated by the program that is running.
The window shows the last message of the active channel. If there are messages in other
channels, it will highlight the "+" sign next to the message window. To display the list of
active messages, press the key combination [CTRL]+[O] or click on the CNC message
line.
The list of messages shows, next to each message, the channel where it is active.
H PLC messages.
Icon. Meaning.
Programmed stopped.
Background color: White.
Program in execution.
Background color: Green.
Program interrupted.
Background color: Dark green.
Program in error.
Background color: Red.
Icon. Meaning.
Execution mode.
Jog mode.
MDI/MDA mode.
