Operating manual
CNC 8070
DDSSETUP
21.
(REF: 1505)
·391·

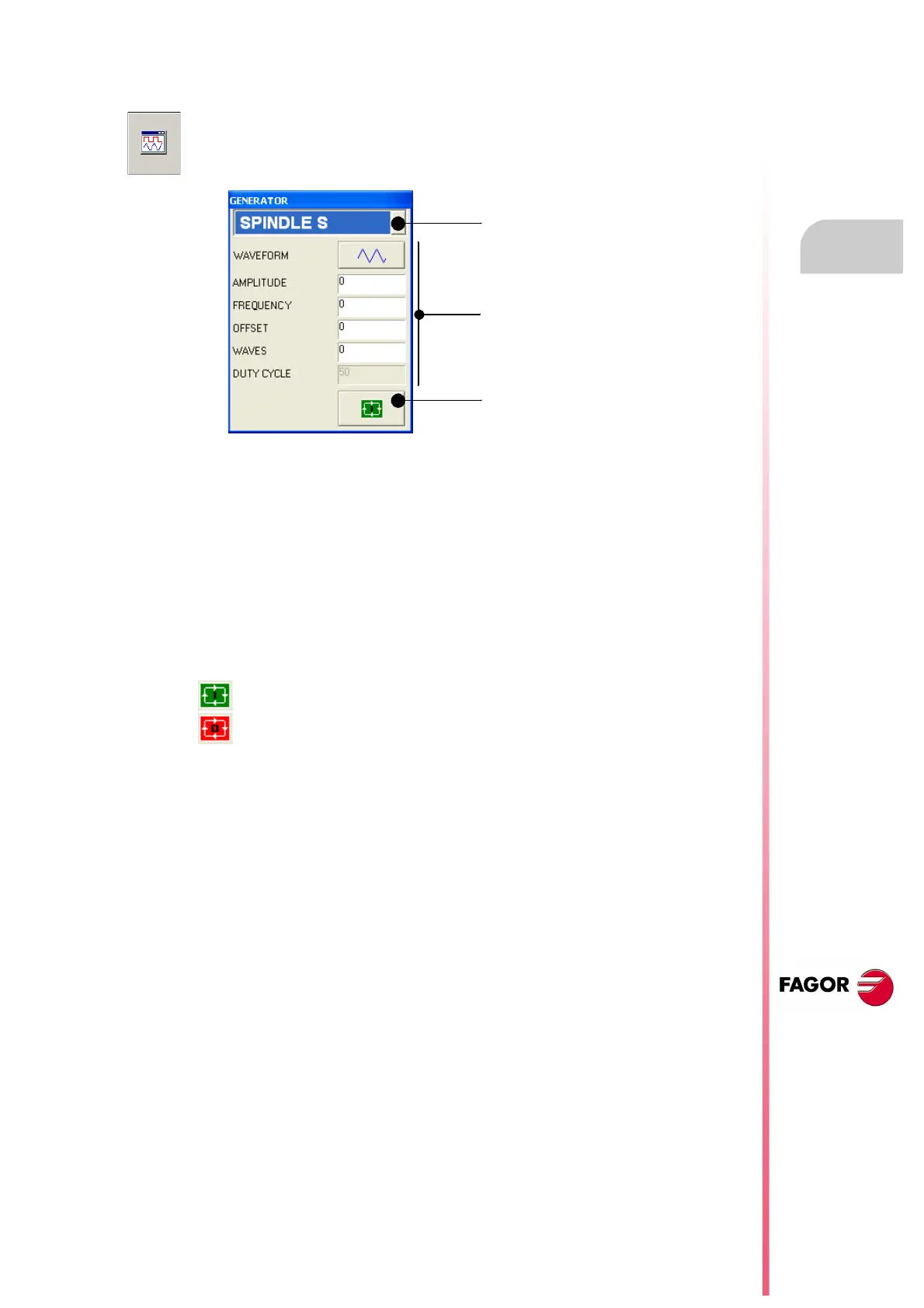

Command generator (only Sercos).
21.8 Command generator (only Sercos).
The fields to be configured at the generator are:
The internal command generator is turned on and off using the lower buttons.
This option may be used to configure and start up the internal command generator of the
drive. In the configuration, it is possible to establish the shape of the signal, its amplitude,
period, etc.
Waveform. To select the type of signal to be generated with the drive (sinusoidal
or square).
Amplitude Signal amplitude.
Frequency Signal frequency.
Offset Signal offset.
Waves Number of waves to generate. When set to 0 (zero), the waves are
generated continuously, without interruption.
Duty Cycle Percentage of the wave at 1/0 (only on squarewaves).
It turns the command generator on.
It turns the command generator off.
Selected drive
Turn the command generator on.
Configuration of the command generator.
