CNC 8070
(REF: 1505)
1
·33·
DESCRIPTION OF THE KEYS

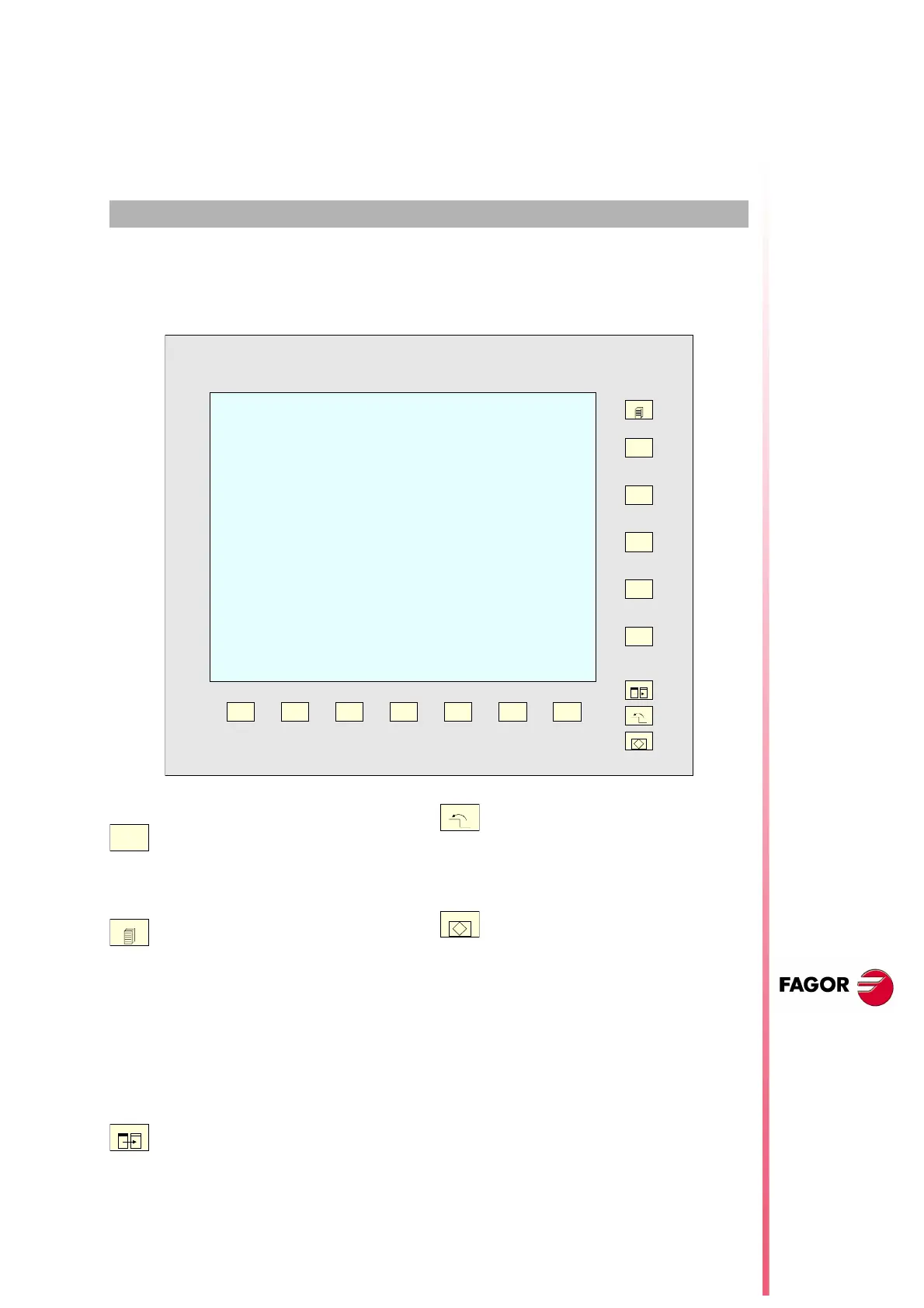

1.1 Monitor LCD-15.
Function keys.
Browsing keys.
Help key.
F1 F2 F3 F4 F5 F6 F7
F8
F9
F10
F11
F12
HELP
?
NEX T
FOCUS
BACK
Softkeys.
Keys F1 through F12 select the options of the
softkey menus.
NEXT key.
Configurable key that can carry out one of the
following actions.
• Access the various screens of the active
work mode sequentially, pressing [SHIFT] at
the same time inverts the sequence. In the
PLC mode, it switches between the various
active services.
• Sequentially access the different channels.
• The horizontal softkey menu shows the
available screens and the vertical menu
shows the available channels.
FOCUS key.
It is used to switch between the different windows
of the screen.
BACK key.
On the horizontal softkey menu, it lets you go up
from the softkey sub-menu to the previous level
from where that menu was accessed.
HELP key.
It accesses the CNC's system help.
