Active-tools table
16.6 Active-tools table
This table shows the list of available tools and which one is active in each channel.
The left panel shows the list of the available tools and the right panel shows the data of the
active tool in each channel.
Tool listing
For each tool, it indicates the position and the magazine where it is located, whether it is a
ground tool or the tool is active in a channel. The CNC updates data of the list every time
a tool change is carried out.
It is the same list that appears in the tool table. See "16.3.2 The tool list" on page 250.
Active tools
It shows the data of the active tool in each channel and also the data of the tool selected
on the list. It is also possible to change the tool of the spindle. See "16.6.2 Changing the
tool of the spindle" on page 265.
The tool data cannot be edited on this screen. The data shown here is defined in the tool table.
The table is divided in two panels. To switch panels, press the [FOCUS] key.

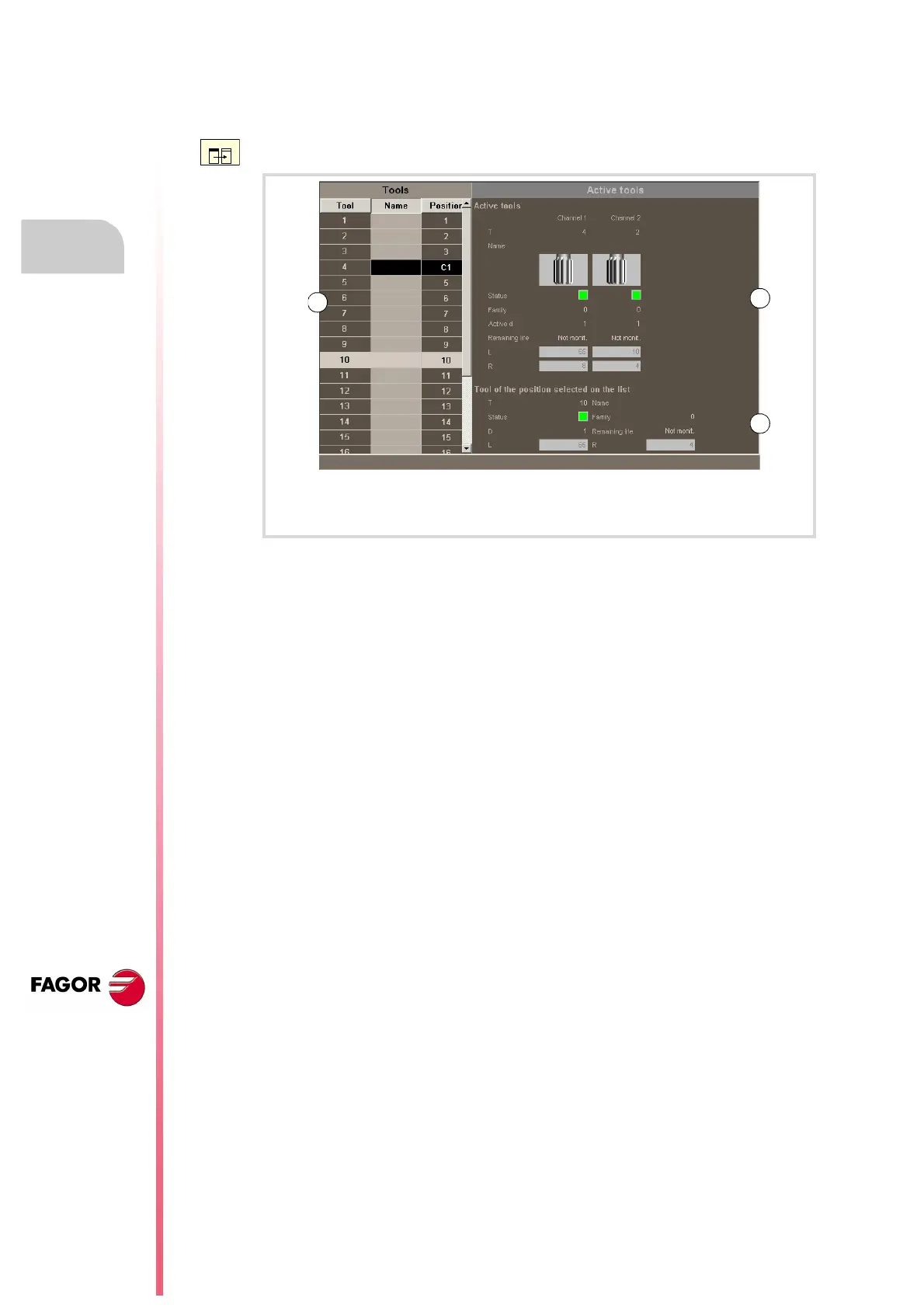

(A)Tool listing.
(B)Active tools.
(C)Tool selected on the list.
