Operating manual
CNC 8070
20.
SETUP ASSISTANCE
(REF: 1505)
Oscilloscope

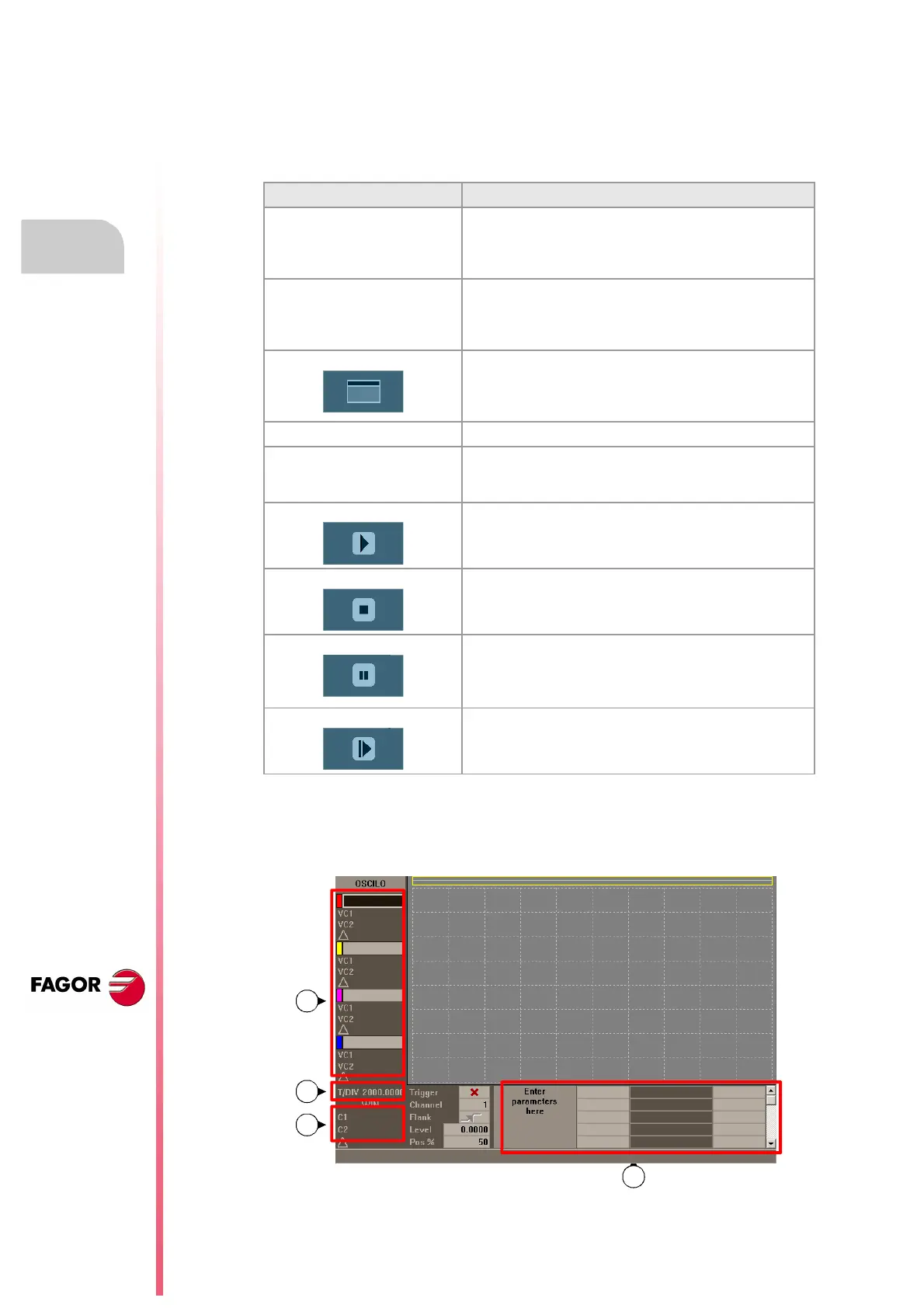

20.1.2 Softkey menus.
Horizontal softkey menu.
The horizontal softkey menu offers the following options:
Vertical softkey menu.
Depending on which data has the focus, the vertical softkeys show different options.
Softkey. Description.
Softkey "Config". This softkey accesses the configuration screen. It may be used
to define which variables will be displayed, their scale, colors,
time base, the Trigger, the trigger condition, the parameters to
act upon, etc.
Softkey "Data". It accesses the data processing submenu. This submenu serves
to save and load the captured trace as well as the configuration
defined for it. It may also be used to send data of the captured
trace out to printer or to a file.
Softkey "Enlarge screen". With this option, it is possible to enlarge the graphics window to
the left, using the area that shows the variables to be displayed.
Pressing the same softkey returns the screen to the previous
size.
Softkey "Overlap channels". Wit this option, several channels may be overlapped.
Softkey "Autoscale". When autoscaling a channel, the system determines the proper
vertical scale and offset so the signal appears as enlarged as
possible inside its graphic area.
Softkey "Begin capture". Start taking data to show it graphically.
Softkey "End capture". Finish the data capture and stop the graphic representation.
Softkey "Freeze screen". Freeze the display without interrupting the data capture.
This softkey only appears on the horizontal softkey menu if the
capture is in continuous mode. To set the capture in continuous
mode, change the "mode" option of the configuration screen.
Softkey "Unfreeze capture". Unfreeze the display.
