·310·
Operating manual
CNC 8070
18.
PLC
(REF: 1505)
"Outputs" service
18.8 "Outputs" service
The "Outputs" service shows the following information:
• The result of generating (compiling) the PLC program.
• The result of analyzing a file of mnemonics.
• The result of text search in the files making up the PLC project.
Pressing the "Show" softkey accesses the screen of this service that shows this information.
To close the window, press [ESC].
Description of the outputs service

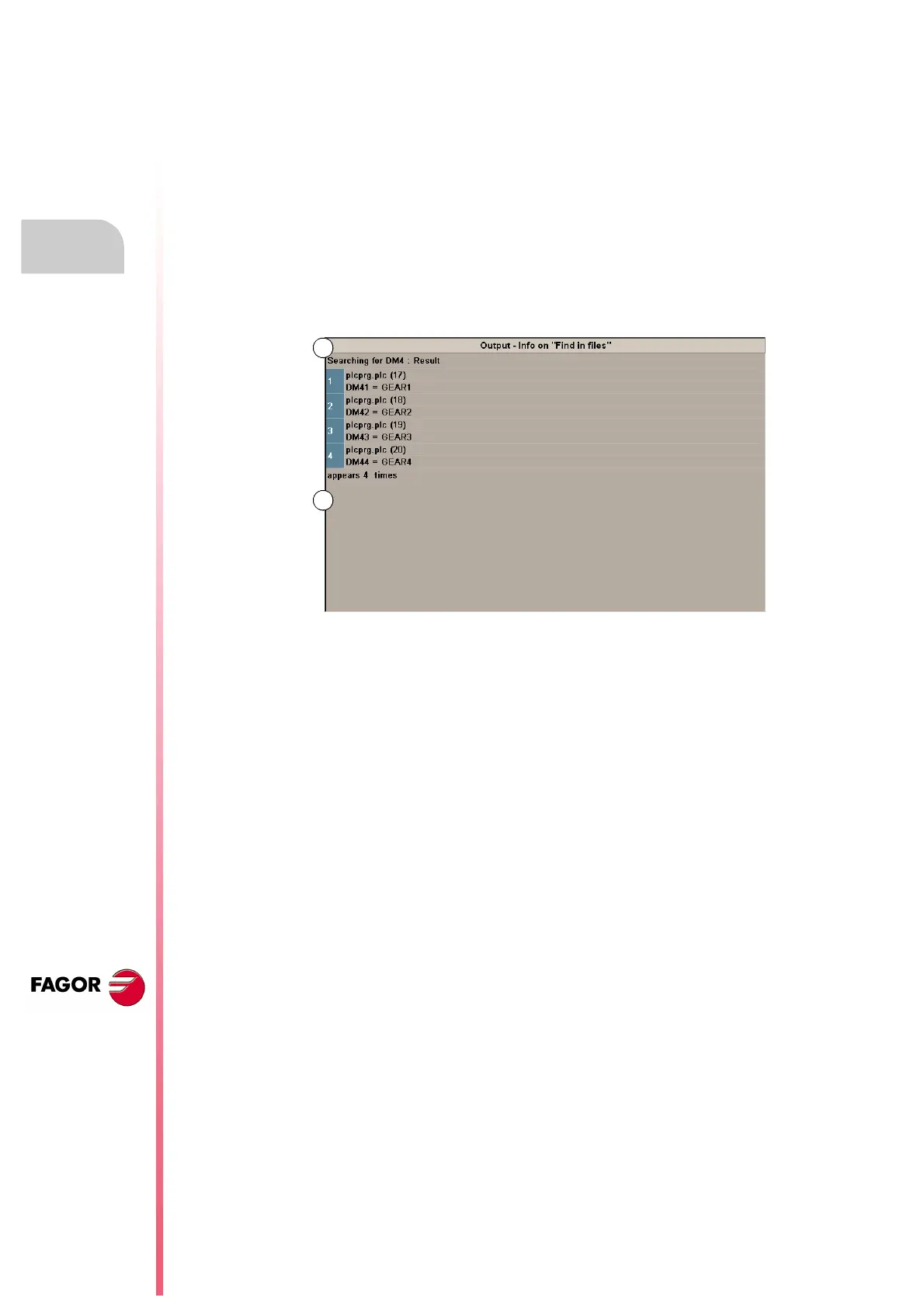

The screen of this service looks like this:
A Title bar.
It shows the type of information displayed in the window (information about the
compilation, file analysis or a search).
B Requested information.
It shows the requested information.
