·58·
Operating manual
CNC 8070
3.
HOW TO OPERATE THE CNC
(REF: 1505)
Task window

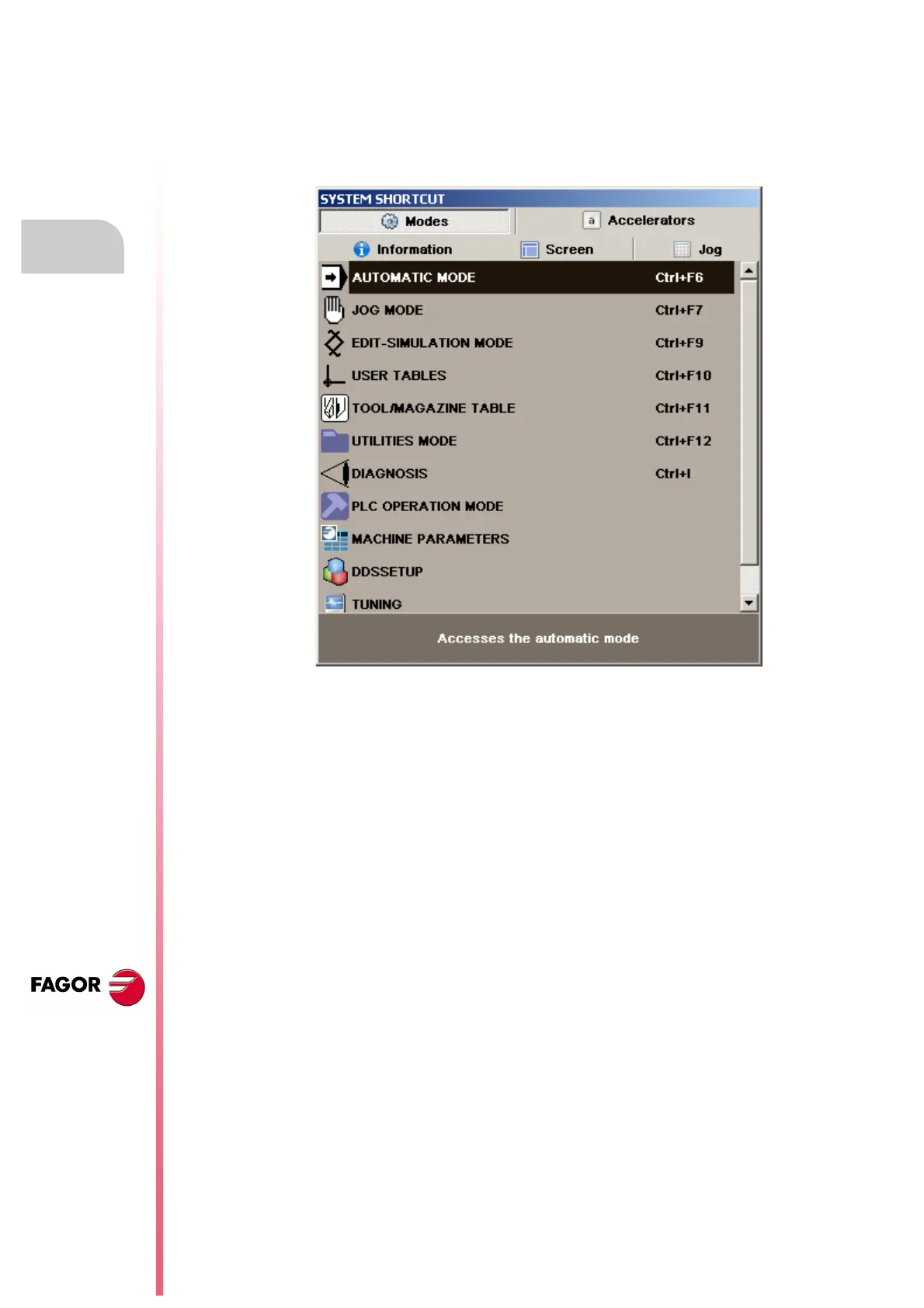

3.5 Task window
The task window shows the list of all the operating modes of the CNC and the list of available
hotkeys. To open the task window, use the key combination [CTRL]+[A] or click (or press on
a touch-screen) on the OEM icon (top left of the screen). Press [ESC] to close the window
without making a selection.
Moving around in the task window
Besides the mouse, the following keys may be used.
[] [] Moves the cursor through the window.
[CTRL]+[TAB] Changes the panel.
[ENTER] It accesses the selected mode.
