Do one of the following:
• If only one good conductor is available, press A(
Good Wire-Same Ga.),
and a connection diagram like that shown in Figure 4-17 is displayed:
acy29s.eps

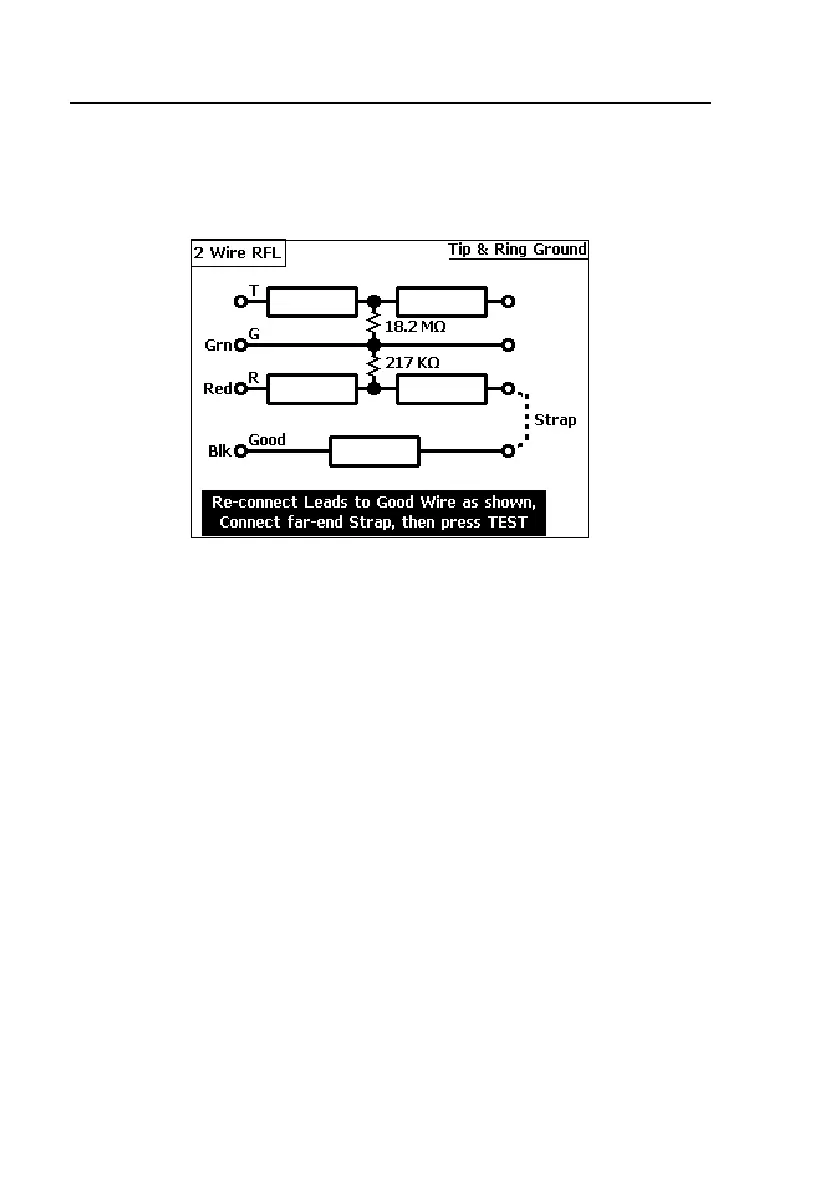

Figure 4-17. Two-Wire RFL Test Results: Good Wire Strap
a) As prompted, reconnect the leads to the good wire and connect the
far-end strap. Then, press K.
When the test finishes, resistance values are displayed.
b) Press A (
Distance to Fault), and distances to the fault and strap are
then displayed, as shown in Figure 4-18:
